TECO TWSM22HVAG 2.25kW Indoor Multi Reverse Cycle High Wall Split Air Conditioning Unit (Built-in WiFi R32)

TECO-TWSM22HVAG
TECO-TWSM22HVAG

TECO TWSM22HVAG 2.25kW Indoor Multi Reverse Cycle High Wall Split Air Conditioning Unit (Built-in WiFi R32)

TECO Indoor Multi High Wall Split Unit




$337.00 Incl GST
$306.36 Excl GST
In Stock

Calculate Shipping


Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm.
Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Sydney Warehouse. Mon - Fri 8am - 4pm.

 *This is an Indoor Unit Only, not a complete system. An Outdoor Multi Unit is Required.

TECO TWSM22HVAG 2.2kW Indoor Only Reverse Cycle Wall Split Air Conditioning Multi Unit (Built-in WiFi)

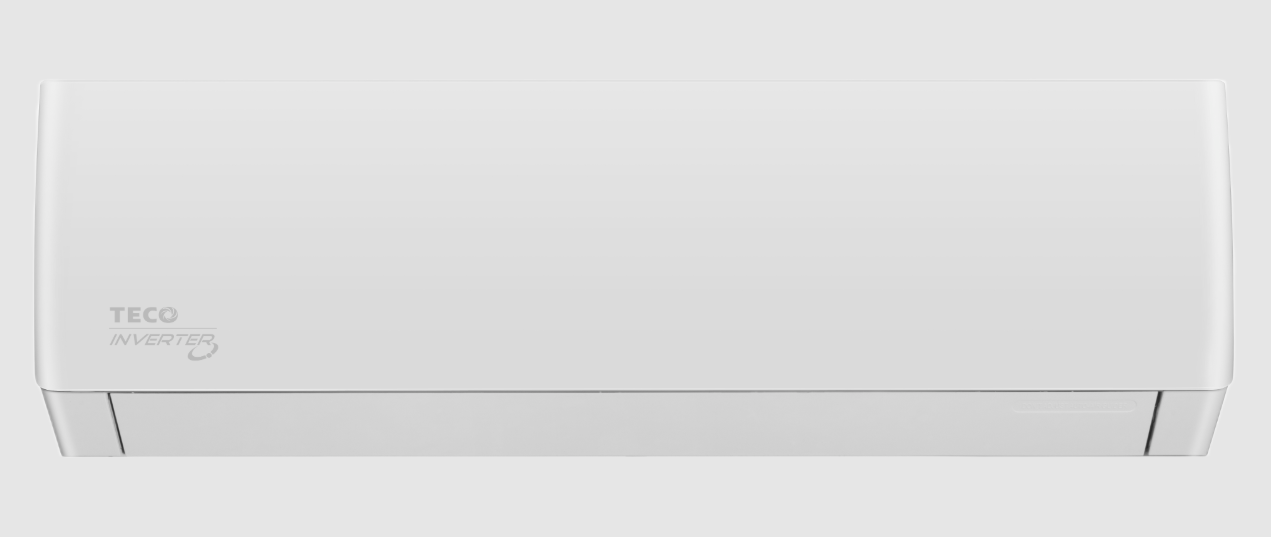

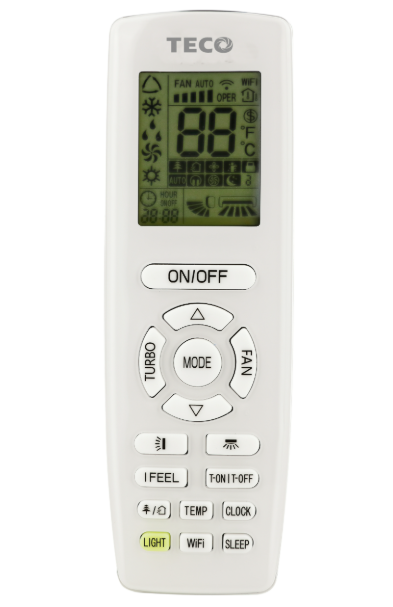

The TWSM22HVAG 2.2kW High Wall Mounted Indoor Unit is a sleek and efficient air conditioning solution, ideal for smaller rooms such as bedrooms, home offices, and compact living spaces. Designed for whisper-quiet operation, it ensures minimal disruption while delivering powerful cooling and heating performance. Equipped with Plasmacluster Ion Sterilisation, it actively improves air quality by neutralising airborne bacteria and allergens. The Goldfin-coated heat exchanger enhances durability and efficiency, protecting against corrosion in humid environments. With WiFi connectivity and intuitive remote control, this unit offers seamless comfort and smart home integration. Additionally, it can be controlled by an optional wall-mounted controller for enhanced usability and precise temperature adjustments.

Key Features:

  • 7 Years Warranty (Domestic Application)
  • 2 Years Warranty (Commercial Application)
  • Built-in Wi-Fi
  • Dehumidify Mode
  • I Feel Function
  • Ion Generator
  • Dry Anti-Mildew Design
  • Turbo Fan Mode
  • Pre-Heat Function
  • Gold Fin Coating - Evaporator Coil

(TWSM22HVAG)

Indoor Unit TWSM22HVAG TWSM26HVAG TWSM35HVAG TWSM50HVAG TWSM64HVAG TWSM71HVAG
Power Supply (V - Hz - Phase) 220-240 / 50 / 1
Cool Capacity Rated/Min-Max (kW) 2.25 (0.35-3.05) 2.65 (0.45-3.7 3.52 (0.55-4.4) 5.2 (1.0-6.5) 6.3 (1.6-8.6) 7.1 (1.1-8.8)
Heat Capacity Rated/Min-Max (kW) 2.7 (0.75-3.75) 3.2 (1.1-3.85) 4.0 (1.1-5.4) 6.0 (1.4-6.9) 7.4 (2.0-9.06) 8.0 (2.0-9.5)
Power Input Rated/Min-Max Cool (W) 600 (110-1100) 575 (110-1250) 830 (190-1500) 1290 (220-2100) 1542 (400-2600) 1844 (450-3100)
Power Input Rated/Min-Max Heat (kW) 720 (150-1250) 745 (150-1350 980 (190-1650) 1460 (210-2300) 1805 (400-3000) 2050 (370-3200)
Min/Max Voltage 198 / 264
Air Flow Volume L/s

144 / 131 / 125 /

117 / 86 / 81 / 69

206 / 175 / 156 /

136 / 117 / 108 / 100

200 / 172 / 156 /

136 / 119 / 108 / 89

292 / 253 / 242 /

231 / 214 / 183 / 167

361 / 306 / 392 /

264 / 250 / 236 / 222

361 / 292 / 278 /

250 / 228 / 208 / 181
Application Area (m2) 10 - 16 12 - 18 16 - 24 23 - 34 27 - 42 27 - 42
Set Temperature Range (C) 16 ~ 30
Sound Pressure Level (dBA)

39 / 36 / 32 /

32 / 28 / 23 / 22

42 / 37 / 36 /

32 / 28 / 24 / 20

44 / 38 / 36 /

34 / 31 / 28 / 23

46 / 41 / 39 /

37 / 35 / 32 / 27

49 / 43 / 41 /

38 / 35 / 33 / 29

50 / 44 / 43 /

40 / 36 / 34 / 32
Sound Power Level (dBA)

55 / 52 / 50 /

48 / 44 / 39 / 38

57 / 52 / 51 /

47 / 43 / 39 / 35

59 / 53 / 51 /

49 / 46 / 43 / 38

62 / 57 / 55 /

53 / 51 / 48 / 43

62 / 55 / 53 /

50 / 47 / 45 / 41

66 / 60 / 59 /

56 / 52 / 50 / 48
Pipe Sizes Liquid/Gas (mm) 6.35 + 9.52 6.35 + 12.7 6.35 + 15.88
Unit Dimensions (HxWxD) (mm) 260 x 704 x 185 293 x 825 x 196 311 x 982 x 221 333 x 1075 x 246
Package Dimensions (HxWxD) (mm) 332 x 753 x 258 365 x 875 x 268 385 x 1044 x 297 414 x 1133 x 333
Net Weight (kg) 7.5 9.5 13 16
Gross Weight (kg) 9 11.5 15.5 19
SKU TWSM22HVAG
Brand TECO
Shipping Weight 9.0000kg
Shipping Width 0.258m
Shipping Height 0.332m
Shipping Length 0.753m
Shipping Cubic 0.064498968m3
Unit Of Measure ea

TECO offers a 7-Year Parts and Labour Warranty on any Split, Multi-Split or Ducted System installed in a Domestic/Residential Application.
