Rinnai VX Series HSNRVX25 2.6kW Wall Split Air Conditioning System with Wi-Fi

Calculate Shipping

Request Separate Shipping Quote
Best suited for large or bulky orders. After receiving your order, our team will contact you to arrange a custom shipping quote based on current freight market rates to your location. We work with multiple freight providers to find the best pricing and delivery option for your needs. Please note that final shipping costs will vary from the online shipping estimate.

Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.

Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Sydney Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.

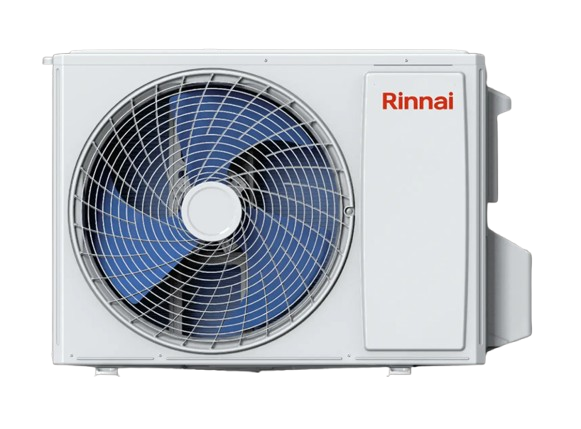

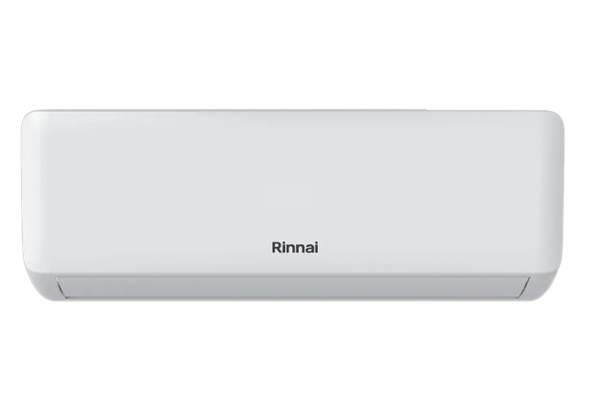

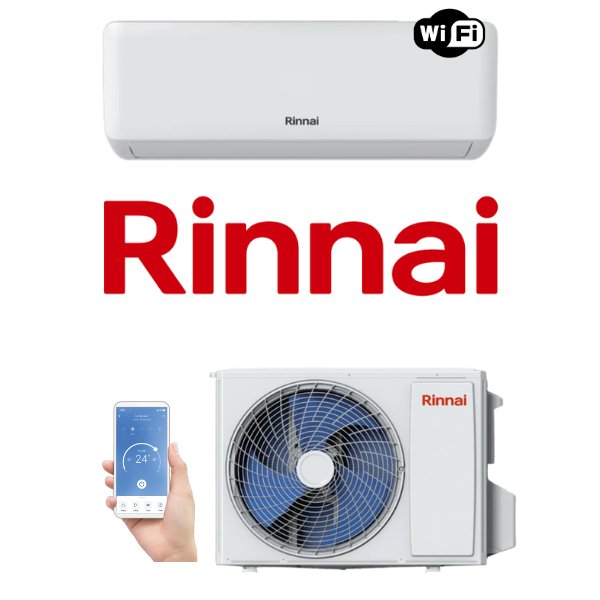

Rinnai VX Series HSNRVX25 2.5kW Wall Split Air Conditioner (Built-In Wi-Fi) - Includes Outdoor Unit HONRVX25 and Wireless Controller

Powerful comfort, anywhere in your home. Providing reliable heating and cooling with Wi‑Fi control, the VX Series 2.5kW split system delivers efficient comfort, strong airflow, and energy‑efficient performance for small rooms.

Features:

Powerful Comfort Corner to Corner: High-performance airflow reaches that help deliver consistent comfort and superior air distribution throughout larger spaces.
Self-Cleaning Air Purity: Deep cleaning technology with 57°C sterilisation helps remove bacteria and reduce dust build-up.
Intelligent Self-Diagnosis: Identiy potential issues quickly with the Self-Diagnosis Function for easy troubleshooting and added peace of mind.
Eco-Friendly R32 Refrigerant with energy-saving inverter technology.
Ideal for bedrooms (up to 20m²).
Extensive range of features including 3D Airflow, Dry Mode and Demand Control.
Quiet Operation
Wi-Fi Control

(HSNRVX25)

System	HSNRTV25	HSNRTV35	HSNRTV50	HSNRTV70
Rated Cooling Capacity (kW)	2.6	3.5	5.3	7.0
Rated Heating Capacity (kW)	2.9	4.0	5.3	8.2
Power Supply (V/Ph/Hz)	220-240 / 1 / 50
Recommended Circuit Breaker (A)	16			20
Connectivity	Wi-Fi Enabled
Demand Response Enabling Device	DRED Enabled
Cooling Capacity Range (kW)	0.3 - 4.0	0.8 - 4.1	1.3 - 5.8	1.8 - 7.4
Heating Capacity Range (kW)	0.3 - 4.2	0.8 - 4.5	1.3 - 6.0	1.8 - 8.3
Rated Power Input Cool/Heat (W)	670 / 670	940 / 1080	1630 / 1560	2150 / 2450
Rated Current Cool/Heat(A)	3.5 / 3.5	4.8 / 5.0	7.4 / 7.2	9.5 / 11.0
AEER/ACOP (W/W)	3.911 / 4.296	3.694 / 3.678	3.239 / 3.384	3.262 / 3.336
Star Rating: Hot/Average/Cold (Cool)	6.5 / 5.0 / 5.5	5.0 / 4.5 / 5.0	4.0 / 3.5 / 4.0	3.5 / 3.5 / 3.5
Star Rating: Hot/Mixed/Cold (Heat)	3.5 / 3.0 / 2.5	3.5 / 2.5 / 1.5	3.5 / 2.5 / 2.0	3.0 / 2.0 / 1.5
Max Input Power Cool/Heat (W)	1500	1600	2400	3400
Max Input Current Cool/Heat (A)	7.5	8.0	12.0	16.0
Suitable Area Coverage up to 2.6m Ins Ceiling (m²)	13-17	18-24	25-34	35-47
Indoor Unit	HINRVX25	HINRVX35	HINRVX50	HINRVX70
Air Flow (Turbo/H/M/L/Min) (L/s) Cool	156/139/128/119	167/147/132/117	236/203/181/153	361/333/281/242
Air Flow (Turbo/H/M/L/Min) (L/s) Heat	181/167/147/139	167/153/133/117	250/217/194/153	333/286/258/242
Moisture Removal (L/h)	0.5	1.0	1.6	3.0
Sound Power Level dB(A)	50	51	58	63
Sound Pressure Level @1m (Tbo/H/M/L/Min) dBA	42 / 39 / 35 / 31	43 / 41 / 38 / 34	48 / 44 / 40 / 37	53 / 49 / 45 / 41
Unit Dimensions (HxWxD) (mm)	285x750x200		310x900x225	330x1080x234
Packing Dimensions (HxWxD) (mm)	346x806x267		372x950x292	390x1135x302
Net/Gross Weight (kg)	7.5 / 9.0		11.0 / 14.0	13.0 / 16.0
Operating Range Cool/Heat (C)	16 / 32
Outdoor Unit	HONRVX25	HONRVX35	HONRVX50	HONRVX70
Sound Power Level dB(A)	60		63
Sound Pressure Level @1m dB(A)	49	50	53	56
Unit Dimensions (HxWxD) (mm)	530x705x279		555x785x300	700x900x350
Packing Dimensions (HxWxD) (mm)	595x825x326		615x905x372	757x1015x415
Net/Gross Weight (kg)	24 / 27		28 / 31	41 / 43
Refrigerant Type/Amount (kg)	R32 / 0.5		R32 / 1.03	R32 / 1.30
Pipe Sizes (Liquid/Gas) (mm)	6.35 / 9.52		6.35 / 12.7	6.35 / 15.88
Maximum Pipe Length (m)	20		30
Chargeless Length (m)	10
Extra Charge for Lengths >10m (g/m)	16		24
Maximum Vertical Separation (m)	12		20
Ambient Temp Limits Cool/Heat (C)	-15 to 52 / -15 to 24
