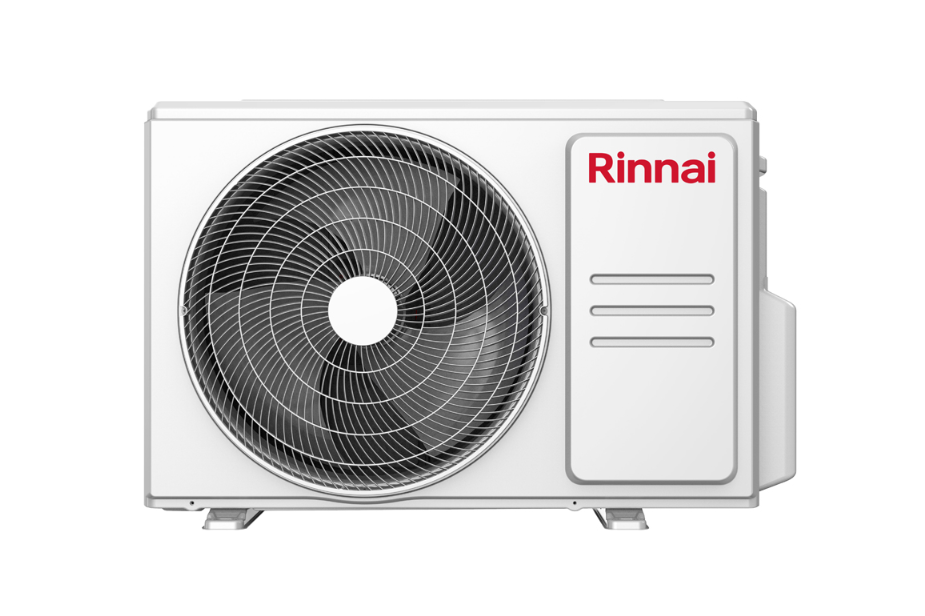

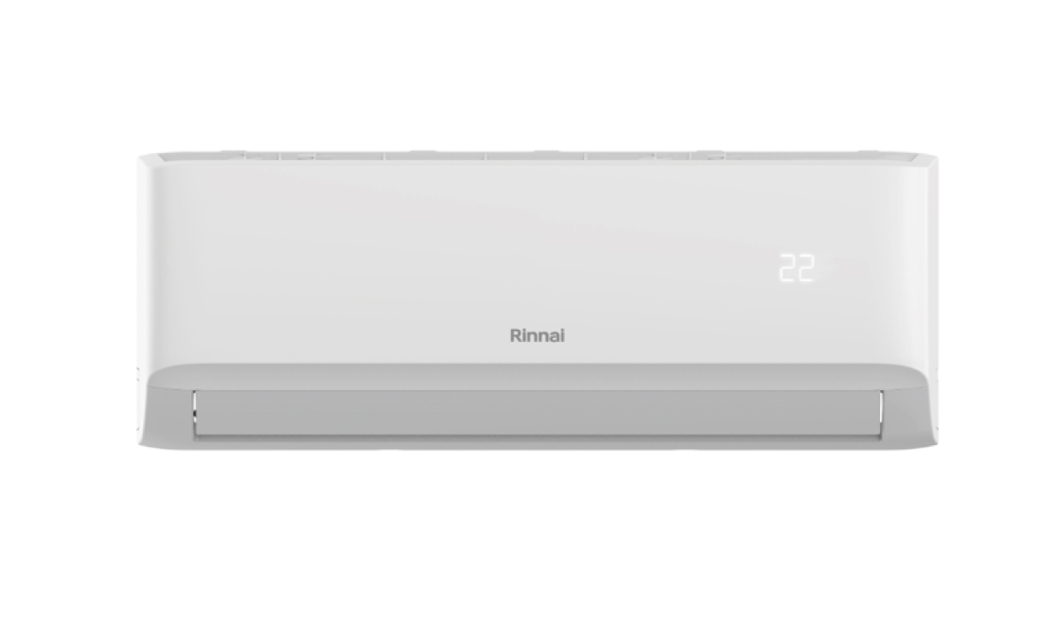

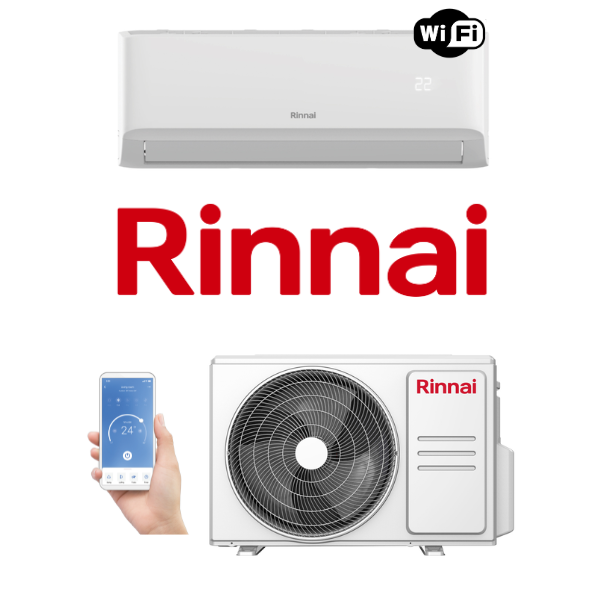

Rinnai TX Series HSNRTX35 3.5kW Wall Split Air Conditioner (Built-In Wi-Fi) - Includes Outdoor Unit HONRTX35 and Wireless Controller

Smart, powerful air conditioning for Australian homes. Stay comfortable year-round with the TX Series 3.5kW Inverter Split System, featuring smart controls, HEPA filtration and energy-efficient heating and cooling performance.

Features:

Cleaner, Healther Air: Integrated HEPA and Cold Catalyst filtration helps create a cleaner indoor environment by reducing airborne contaminants
Self-Cleaning Air Purity: Deep cleaning technology with 56°C sterilisation helps remove bacteria and reduce dust build-up.
Long-Lasting Protection: Advanced Gold Guard technology helps safeguard the condenser coil from corrosion.
Ideal for mid-sized living areas, larger bedrooms and home offices (16-23m²).
Eco-Friendly R32 Refrigerant with energy-saving inverter technology.
Extensive range of features including 3D Airflow, Turbo+, Follow Me and Demand Control.
Humidity Control
Quiet Operation
Wi-Fi Control

(HSNRTX35)

System	HSNRTX25	HSNRTX35	HSNRTX50	HSNRTX60	HSNRTX70	HSNRTX80	HSNRTX90
Rated Cooling Capacity (kW)	2.5	3.5	5.0	6.0	7.0	7.6	9.0
Rated Heating Capacity (kW)	2.8	4.0	5.5	6.5	7.5	8.2	9.5
Power Supply (V/Ph/Hz)	220-240 / 1 / 50
Recommended Circuit Breaker (A)	16		20		25
Connectivity	Wi-Fi Enabled
Demand Response Enabling Device	DRED Enabled
Cooling Capacity Range (kW)	0.9 - 3.45	1.05 - 3.9	2.3 - 6.2		2.91 - 8.23	3.03 - 8.23	3.22 - 9.38
Heating Capacity Range (kW)	1.1 - 3.75	1.2 - 4.1	2.4 - 6.4		2.38 - 8.86	2.4 - 8.86	2.78 - 9.96
Rated Power Input Cool/Heat (W)	540 / 571	850 / 930	1338 / 1314	1735 / 1702	2010 / 1945	2274 / 2285	2568 / 2464
Rated Current Cool/Heat(A)	2.42 / 2.56	3.8 / 4.1	5.92 / 5.79	7.73 / 7.43	9.1 / 8.7	10.3 / 10.2	11.6 / 11.2
AEER/ACOP (W/W)	4.61 / 4.87	4.1 / 4.29	3.73 / 4.21	3.45 / 3.81	3.48 / 3.85	3.36 / 3.58	3.5 / 3.84
TCSPF: Hot/Avg/Cold (Cool)	7.06/6.58/6.89	6.53/6.19/6.51	6.0/5.68/6.01	5.51/5.31/5.62	5.61/5.34/5.65	5.23/5.03/5.33	5.76/5.5/5.9
HSPF: Hot/Avg/Cold (Heat)	5.44/5.01/4.59	5.38/4.69/4.2	4.86/4.37/3.81	4.89/4.09/3.45	4.88/4.26/3.76	4.91/4.14/3.6	5.24/4.33/3.6
Star Rating: Hot/Mixed/Cold (Cool)	5.5 / 5 / 5	5 / 4.5 / 5	4.5 / 4 / 4.5	4 / 3.5 / 4		3.5 / 3.5 / 3.5	4 / 4 / 4
Star Rating: Hot/Mixed/Cold (Heat)	3.5 / 3.5 / 3	3.5 / 3 / 2.5	3 / 2.5 / 2	3 / 2.5 / 1.5	3 / 2.5 / 2		3.5 / 2.5 / 2
Max Input Power Cool/Heat (W)	2300		3400		4050		4100
Max Input Current Cool/Heat (A)	10.5	10	15.5		17.5		18
Suitable Area Coverage up to 2.6m Ins Ceiling (m²)	11-17	16-23	23-33	27-40	32-47	36-53
Indoor Unit	HINRTX25	HINRTX35	HINRTX50	HINRTX60	HINRTX70	HINRTX80	HINRTX90
Air Flow (Turbo/H/M/L/Min) (L/s)	175/139/100/83/50	183/147/106/86/56	264/222/167/139/125		337/293/190/140/137		375/308/211/156/97
Moisture Removal (L/h)	1.3	1.7	2.5		3.4		3.2
Sound Power Level dB(A)	57	59	60.5	59.6	65.1	64.8	65.2
Sound Pressure Level @1m (Turbo/H/M/L/Min) dB(A)	45.5/39/32/25/20	45/39.5/33/26/19.5	48.5/45.5/38/30.5/20		52/50/41.5/27/21		54.5/52/45.5/34.5/22.5
Unit Dimensions (HxWxD) (mm)	295x802x200		321x971x228		337x1082x234		362x1259x283
Packing Dimensions (HxWxD) (mm)	375x875x288		405x1045x308		415x1155x318		450x1340x383
Net/Gross Weight (kg)	8.6 / 11.1		11.0 / 14.6		13.2 / 17.1		19.0 / 24.7
Operating Range Cool/Heat (C)	16 to 32 / 0 to 30
Outdoor Unit	HONRTX26	HONRTX35	HONRTX50	HONRTX60	HONRTX70	HONRTX80	HONRTX90
Sound Power Level dB(A)	59	62.9	67.4	67.1	69.6	69.1	68.3
Sound Pressure Level @1m dB(A)	54	56	58		61		59.5
Unit Dimensions (HxWxD) (mm)	555x765x303		673x890x342				810x946x410
Packing Dimensions (HxWxD) (mm)	610x887x337		750x1030x438				965x1090x500
Net/Gross Weight (kg)	24.7 / 27.0	25.8 / 28.0	38.6 / 42.1		43.8 / 47.2		60.3 / 64.6
Refrigerant Type/Amount (kg)	R32 / 0.62	R32 / 0.85	R32 / 1.26		R32 / 1.4		R32 / 2.2
Pipe Sizes (Liquid/Gas) (mm)	6.35 / 9.52		6.35 / 12.7		6.35 / 15.9		9.52 / 15.9
Maximum Pipe Length (m)	25		30		50
Chargeless Length (m)	15
Extra Charge for Lengths >10m (g/m)	12						24
Maximum Vertical Separation (m)	10		20		25
Ambient Temp Limits Cool/Heat (C)	-15 to 50 / -15 to 24
