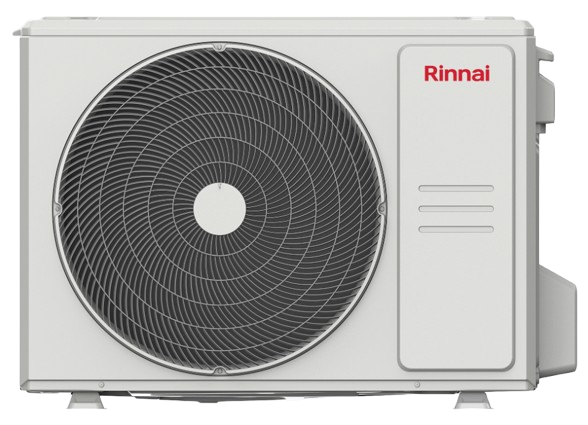

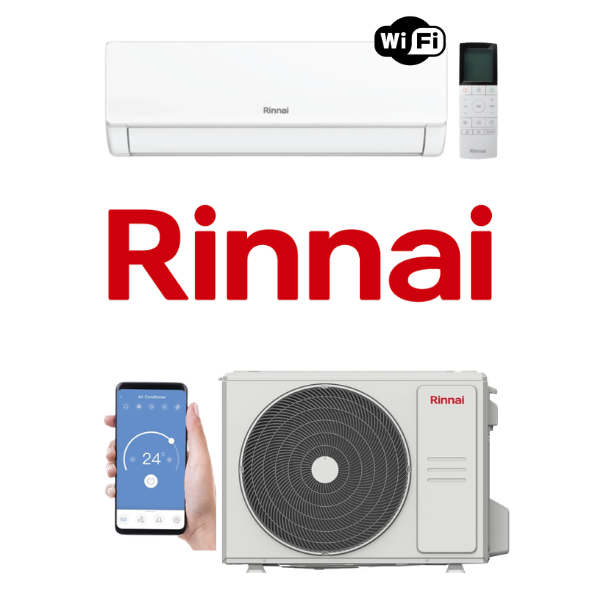

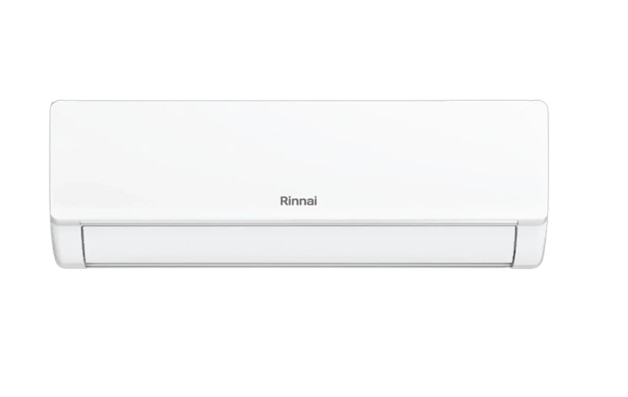

Rinnai PX Series HSNRPX25 2.6kW Wall Split (Built-In Wi-Fi) Air Conditioning System - Includes Outdoor Unit HONRPX25 and Wireless Controller

Stay comfortable year-round with smart, efficient control from the 2.5kW PX Series Inverter Split System, delivering quiet, Wi‑Fi-enabled heating, cooling, and advanced air quality features.

Key Features:

Cleaner, Healthier Air - Integrated HEPA and Cold Catalyst filtration helps create a cleaner indoor environment by reducing airborne contaminants.
Self-Cleaning Air Purity - Deep cleaning technology with 56°C sterilisation helps remove bacteria and reduce dust build-up, keeping your air conditioner cleaner and your indoor air fresher.
Smart Sensing, Smarter Savings - Advanced occupancy detection optimises system performance based on room usage, helping reduce energy consumption while maintaining comfortable temperatures.
Long-Lasting Protection - Advanced Gold Guard technology helps safeguard the condenser coil from corrosion, supporting dependable operation.
Ideal for bedrooms (12-17m²)
Eco-Friendly R32 Refrigerant
Extensive range of features including Sleep Curve, 3D Airflow, ECO+ and Turbo+ and Demand Control
Wi-Fi Control

(HSNRPX25)

System	HSNRPX25	HSNRPX35	HSNRPX50	HSNRPX60	HSNRPX70	HSNRPX80
Rated Cooling Capacity (kW)	2.6	3.5	5.0	6.0	7.0	8.0
Rated Heating Capacity (kW)	3.25	3.8	6.0	6.55	7.7	8.7
Power Supply (V/Ph/Hz)	220-240 / 1 / 50
Recommended Circuit Breaker (A)	16		20		25
Connectivity	Wi-Fi Enabled
Demand Response Enabling Device	DRED Enables
Cooling Capacity Range (kW)	1.03-3.46	0.89-4.04	1.45-6.2		2.7-8.23
Heating Capacity Range (kW)	1.1-4.19	1.3-5.04	1.91-6.75		2.7-8.94
Rated Power Input Cool/Heat (kW)	491 / 703	802 / 842	1149 / 1456	1568 / 1665	1971 / 1983	2325 / 2395
Rated Current Cool/Heat(A)	2.15 / 3.06	3.5 / 3.69	5.1 / 6.33	6.96 / 7.31	9.0 / 8.9	10.5 / 10.7
AEER/ACOP (W/W)	5.27 / 4.61	4.36 / 4.5	4.34 / 4.12	3.82 / 3.93	3.55 / 3.88	3.42 / 3.63
TCSPF: Hot/Mixed/Cold (Cool)	8.51 / 7.92 / 8.38	7.6 / 7.08 / 7.56	7.1 / 6.7 / 7.07	6.4 / 6.15 / 6.53	5.58 / 5.31 / 5.64	5.43 / 5.19 / 5.53
HSPF: Hot/Mixed/Cold (Heat)	5.57 / 5.01 / 4.6	5.62 / 5.0 / 4.57	5.6 / 4.78 / 4.16	5.6 / 4.65 / 3.96	4.82 / 4.26 / 3.82	4.83 / 4.12 / 3.61
Star Rating: Hot/Mixed/Cold (Cool)	7 / 6 / 6.5	6 / 5.5 / 6	5.5 / 5 / 5.5	4.5 / 4.5 / 5	4 / 3.5 / 4	3.5 / 3.5 / 4
Star Rating: Hot/Mixed/Cold (Heat)	4 / 3.5 / 3		4 / 3 / 2.5	4 / 3 / 2	3 / 2.5 / 2
Max Input Power Cool/Heat (W)	2300		3400		4050
Max Input Current Cool/Heat (A)	10	10.5	15.5		17.5
Suitable Area Coverage up to 2.6m Ins Ceiling (m²)	12-17	16-23	23-33	27-40	32-47	36-53
Indoor Unit	HINRPX25M	HINRPX35M	HINRPX50M	HINRPX60M	HINRPX70M	HINRPX80M
Air Flow (Turbo/H/M/L/Min) (L/s)	208/153/111/86/43	222/167/125/103/61	339/256/183/150/89		336/289/244/198/114
Airflow Distance (m)	750/550/400/310/155	800/600/450/370/220	1220/920/660/540/320		1208/1039/880/714/410
Sound Power Level dB(A)	56.6	60	62.6	62.8	63.9	67.3
Sound Pressure Level @1m (Turbo/H/M/L/Min) dB(A)	47/39/33/26.5/20.5	46.5/39.5/33.5/27/21	49.5/43.0/36.5/28.5/19.5		52/46/43/38/37.5
Unit Dimensions (HxWxD) (mm)	289x813x201		308x975x218		330x1055x231
Packing Dimensions (HxWxD) (mm)	358x885x280		380x1065x300		325x1140x420
Net/Gross Weight (kg)	8.0/10.7	8.2/10.8	10.7/14.8		13.0/16.1
Operating Range Cool/Heat (C)	-16 to 32 / 0 to 30
Outdoor Unit	HONRPX26	HONRPX35	HONRPX50	HONRPX60	HONRPX70	HONRPX80
Sound Power Level dB(A)	60	64	66.6	66.7	66.4	69.1
Sound Pressure Level @1m dB(A)	55.5		57.5		61
Unit Dimensions (HxWxD) (mm)	555x765x303	554x805x330	673x890x342
Packing Dimensions (HxWxD) (mm)	610x887x337	615x915x370	750x1030x438
Net/Gross Weight (kg)	29.4 / 31.8	31.8 / 34.5	42.3 / 45.8		43.8 / 47.4
Refrigerant Type/Amount (kg)	R32 / 0.85	R32 / 0.9	R32 / 1.2		R32 / 1.4
Pipe Sizes (Liquid/Gas) (mm)	6.35 / 9.52		6.35 / 12.7		6.35 / 15.9
Maximum Pipe Length (m)	25		30		50
Chargeless Length (m)	10
Extra Charge for Lengths >10m (g/m)	12
Maximum Vertical Separation (m)	10		20		25
Ambient Temp Limits Cool/Heat (C)	-15 to 50 / -15 to 24
