Rinnai DINLR07B1A 7.3kW Indoor Only Multi High Static Ducted Air Conditioning Unit

Rinnai DINLR07B1A 7.3kW Indoor Only Multi High Static Ducted Air Conditioning Unit

Rinnai Indoor Multi High Static Ducted Unit




$996.00 Incl GST
$905.45 Excl GST
In Stock

Calculate Shipping


Request Separate Shipping Quote
Best suited for large or bulky orders. After receiving your order, our team will contact you to arrange a custom shipping quote based on current freight market rates to your location. We work with multiple freight providers to find the best pricing and delivery option for your needs. Please note that final shipping costs will vary from the online shipping estimate.
Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.
Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Sydney Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.

 *This is an Indoor Unit Only, not a complete system. An Outdoor Multi Unit is Required.

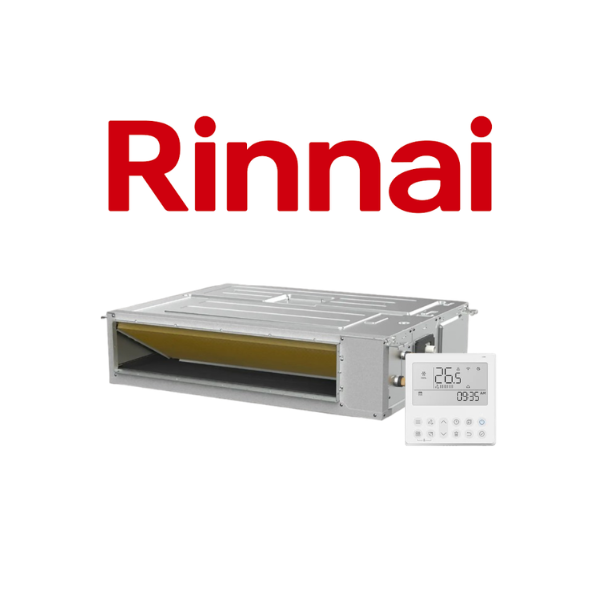

Rinnai DINLR07B1A 7.3kW Indoor Multi Air Conditioning High Static Ducted Unit

Comfortable temperatures across multiple rooms. Multi Split ducted air conditioning system delivers efficient heating and cooling for up to six rooms with one outdoor unit, discreet design, quiet operation, and flexible, independent climate control.

Features:

  • Up to six rooms with one outdoor unit.
  • Includes Rinnai wired controller CNTRLDRCINW2
  • Quiet operation and great performance.
  • Cooling output 7.3kW and heating output up to 8.0kW
  • Wi-Fi control enabled.
  • Indoor unit can be hidden in a ceiling, non-obtrusive design
  • Timer Functionality

(DINLR07B1A)

Unit DINLR07B1A DINLR09B1A DINLR11B1A
Power Supply (V-Ph-Hz) 220-240V / 1Ph / 50Hz
Cooling Capacity Rated (kW) 7.3 9.0 10.5
Heating Capacity Rated (kW) 7.5 10.5 12.5
Rated Input Power (W) 145 280 302
Rated Input Current (A) 1 1.72 1.83
Airflow Hi / Med /Lo (L/s) 472-417-361-278-194 639-556-500-417-139 722-611-528-417-167
Max External Static Pressure (Hi) (Pa) 160 200
Sound Pressure @1.4m Hi/Med/Lo dB(A) 41-38-36-33-28 46-40-38-36-28 45-39-37.5-36-30
Net Dimensions (HxWxD) (mm) 245x1000x750 245x1200x750 300x1200x750
Gross Dimensions (HxWxD) (mm) 304x1225x860 304x1425x860 359x1425x860
Net / Gross Weight (kg) 31.5 / 36.9 40.5 / 46.5 42.9 / 48.9
Air Duct Connection (HxW) Supply (mm) 178x827 178x1092 233x1027
Air Duct Connection (HxW) Return (mm) 212x892 212x1092 267x1092
Pipe Size (Liquid/Gas) (mm) 9.52 / 15.9
Condensate Drain Pump Connection (mm) 25
Controller Type Wired Controller
Operating Range Cool/Heat oC 16-32 / 0-30
Wi-Fi Compatibility Standard
SKU DINLR07B1A
Brand Rinnai
Shipping Weight 36.9000kg
Shipping Width 1.225m
Shipping Height 0.304m
Shipping Length 0.860m
Shipping Cubic 0.320264000m3
Unit Of Measure ea
