Panasonic S-50PY3E/U-50PZ3R5 5.0kW Mini Cassette 1 Phase Air Conditioning System

S-50PY3E / U-50PZ3R5 Panasonic Mini Cassette




$2,767.00 Incl GST
$2,515.45 Excl GST
In Stock

Calculate Shipping


Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm.
Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Sydney Warehouse. Mon - Fri 8am - 4pm.

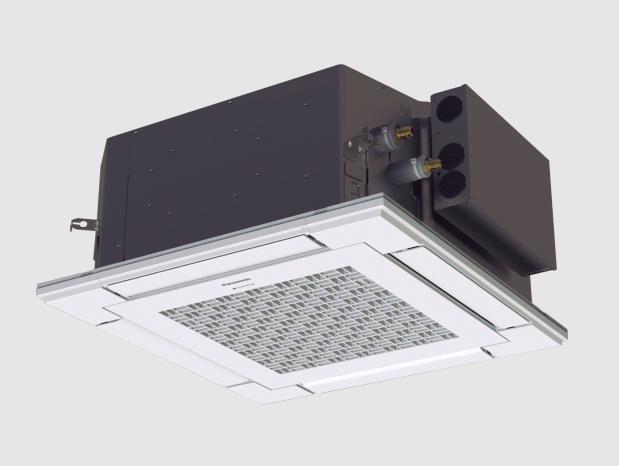

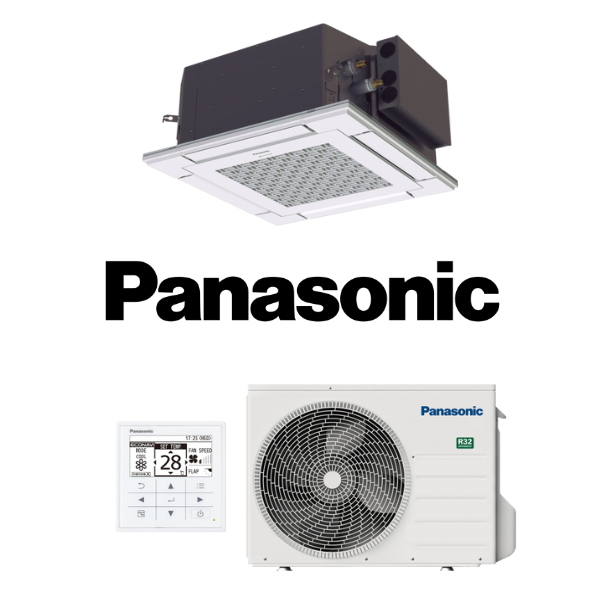

Panasonic S-50PY3E/U-50PZ3R5 5.0kW Low Profile Single Phase Mini Cassette Air Conditioner - Includes Outdoor Unit and Wall Controller

This Mini Cassette designed with a low profile in mind fits comfortably into any standard 60 x 60cm ceiling grid with no alterations needed.
Making this mini Cassette perfect for small comercial applications. especially those with lower ceilings.

Features:

  • More Efficient Air Protection with Nanoe X Generator Mark 2.
  • Pleasant Airflow - Cooling Area Quickly and Individual Flap Control.
  • Flat and Horizontal Design that Conditions the Interior.
  • Includes Wired Remote Controller CZ-RTC5B.
  • Flexible Installation - Compact Design, Lighter and Slimmer, Drain Height of up to 850mm from the Ceiling Surface.

(S-50PY3E_U-50PZ3R5)

System S-25PY3E/U-25PZ3R5 S-36PY3E/U-36PZ3R5 S-50PY3E/U-50PZ3R5 S-60PY3E/U-60PZ3R5
Indoor Unit S-25PY3E S-36PY3E S-50PY3E S-60PY3E
Outdoor Unit U-25PZ3R5 U-36PZ3R5 U-50PZ3R5 U-60PZ3R5
Cooling Capacity Rated/Min-Max kW 2.5 (1.3-3.9) 3.6 (1.5-4.0) 5.0 (1.5-6.4) 6.0 (2.0-7.0)
Heating Capacity Rated/Min-Max 3.2 (1.3-4.6) 3.6 (1.3-4.6) 5.0 (1.5-6.4) 6.0 (1.8-7.0)
Power Supply 1 Phase, 230-240V, 50Hz
EER/COP W/W 4.46 / 4.44 4.55 / 4.29 3.50 / 3.94 3.39 / 3.61
Power Input Min-Max Cooling kW 0.56 (0.27 - 1.1) 0.91 (0.28 - 1.12) 1.43 (0.27 - 2.2) 1.77 (0.34 - 2.53)
Power Input Rated/Min-Max Heating 0.72 (0.25 - 1.35) 0.84 (0.25 - 1.36) 1.27 (0.27 - 2.2) 1.66 (0.39 - 2.45)
Indoor Unit
Current (Cooling) A 2.55-2.45 4.05-3.85 6.35-6.10 8.10-7.75
Current (Heating) 3.25-3.10 3.75-3.60 5.70-5.45 7.35-7.05
Dimensions HxWxD mm 243 x 575 x 575
Net Weight kg 15
Air Volume Cool/Heat L/s 141 / 141 158 / 158 200 / 200 233 / 233
Sound Pressure Level H/M/L Cool/Heat dBA 31 / 28 / 25 34 / 30 / 25 39 / 34 / 27 43 / 37 / 31
Sound Power Level H/M/L Cool/Heat 46 / 43 / 40 49 / 45 / 40 54 / 49 / 42 58 / 52 / 46

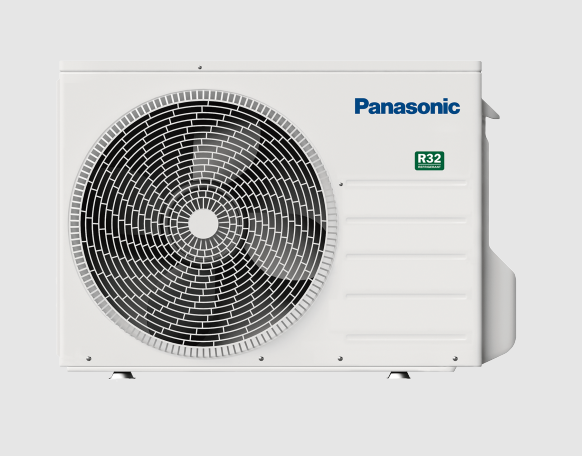

Outdoor Unit
Dimensions HxWxD mm 619 x 824 x 299 695 x 875 x 320
Net Weight kg 31 35 43
Piping Connections Liquid/Gas mm 6.35 / 12.7
Pipe Length Min-Max 3-20 3-30 3-40
Elevation Difference m 15 30
Operation Ranges Cool/Heat C -10 to 46 / -15 to 24
SKU S-50PY3E_U-50PZ3R5
Brand Panasonic
Shipping Weight 50.0000kg
Shipping Cubic 0.232849000m3
Unit Of Measure ea
