Panasonic CS/CU-Z25UFRAW 2.5kW Floor Console R32 Air Conditioning System

Calculate Shipping

Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.

Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Sydney Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.

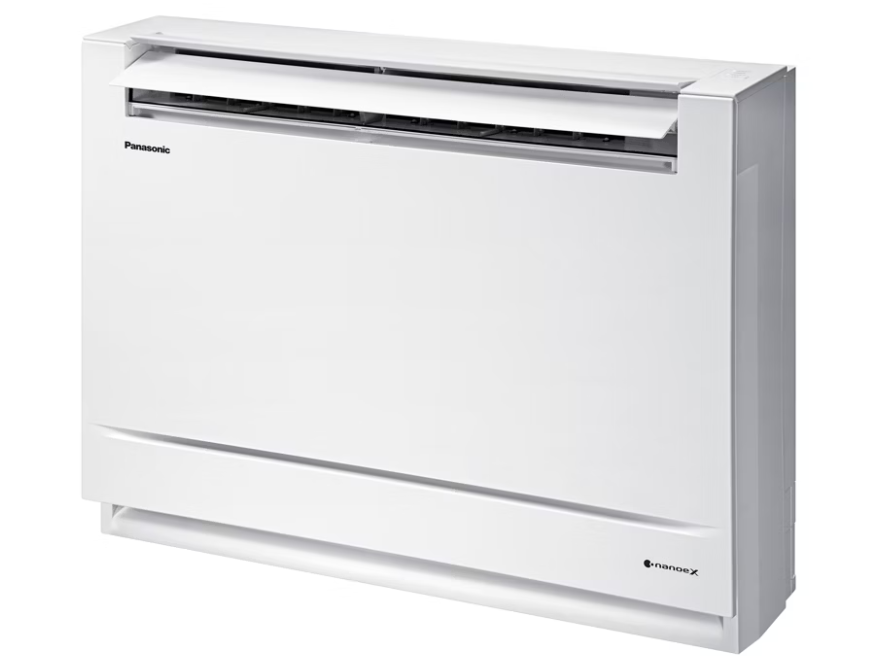

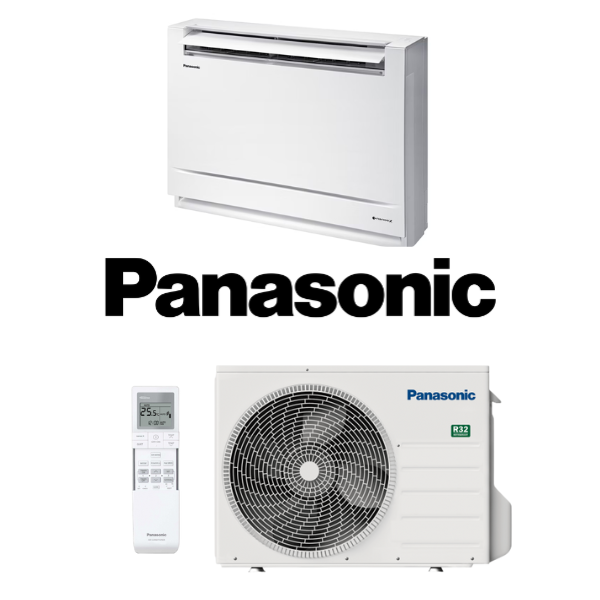

Panasonic CS/CU-Z25UFRAW 2.5kW Floor Console R32 Air Conditioning System - Includes Outdoor Unit and Controller

R32 Inverter Floor Console are compact and versatile, allowing them to be installed in an area with limited space. What is more, they deliver a cleaner environment thanks to nanoe™ X.

Features:

24 Hour Nanoe X Air Purification
Compact and Stylish Design
Double Air Flow Direction Creates a Comfortable Space
Super Quiet Operation

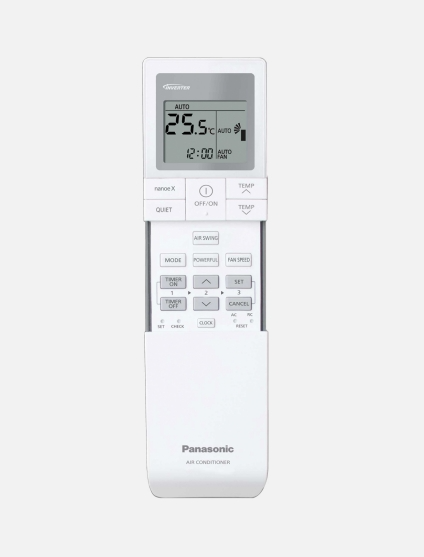

Wireless Remote Controller Included
Flexible Installation

(CSCU-Z25UFRAW)

System		CS/CU-Z25UFRAW	CS/CU-Z35UFRAW	CS/CU-Z50UFRAW
Indoor Unit		CS-25UFRAW	CS-35UFRAW	CS-50UFRAW
Outdoor Unit		CU-Z25UBRA	CU-Z35UBRA	CU-Z50UBRA
Cooling Capacity Rated/Min-Max	kW	2.5 (0.85-3.40)	3.5 (0.85-3.80)	5.0 (0.90-5.70)
Heating Capacity Rated/Min-Max	kW	3.4 (0.85-5.0)	4.3 (0.85-6.0)	5.6 (0.9-8.1)
Power Supply		1 Phase, 230-240V, 50Hz
EER/COP	W/W	5.0 / 4.59	4.07 / 4.06	3.65 / 3.81
Power Input Rated/Min-Max Cool	kW	0.5 (0.24-0.9)	0.86 (0.24-1.02)	1.37 (0.26-1.81)
Power Input Rated/Min-Max Heat	kW	0.74 (0.24-1.35)	1.06 (0.24-1.75)	1.47 (0.26-2.6)
TCSPF Residential (Hot/Avg/Cold)		5.7 / 5.46 / 5.51	5.46 / 5.01 / 5.07	5.51 / 5.2 / 5.37
TCSPF Commercial (Hot/Avg/Cold)		6.22 / 6.4 / 6.97	6.01 / 6.6 / 7.31	6.16 / 7.34 / 8.46
HSPF Residential (Hot/Avg/Cold)		4.12 / 4.21 / 3.94	4.49 / 4.29 / 3.78	4.48 / 4.18 / 3.69
HSPF Commercial (Hot/Avg/Cold)		3.89 / 3.85 / 3.78	4.18 / 4.0 / 3.8	4.2 / 3.99 / 3.76
Indoor Unit
Dimensions HxWxD	mm	600 x 750 x 207
Net Weight	kg	13
Air Volume Cool/Heat	L/s	163 / 173	170 / 182	198 / 227
Sound Pressure Level H/M/L Cool	dBA	38 / 25 / 20	39 / 26 / 20	44 / 31 / 27
Sound Pressure Level H/M/L Heat		38 / 25 / 19	39 / 25 / 19	46 / 33 / 29
Sound Power Level H/M/L Cool		54 / 41 / 36	55 / 42 / 36	60 / 47 / 43
Sound Power Level H/M/L Heat		54 / 41 / 35	55 / 41 / 35	62 / 49 / 45

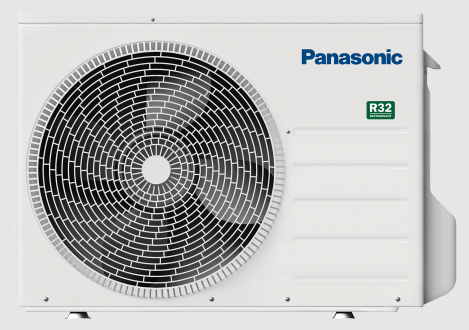

Outdoor Unit
Current (Rated) Cool	A	2.4 (2.3)	3.9 (3.7)	6.2 (6.0)
Current (Rated) Heat	A	3.4 (3.25)	4.8 (4.6)	6.6 (6.4)
Dimensions HxWxD	mm	542 x 780 x 289	619 x 824 x 299	695 x 875 x 320
Net Weight	kg	33	35	42
Piping Connections Liquid/Gas	mm	6.35 / 9.52
Pipe Length Min-Max	m	3 - 20		3 - 30
Elevation Difference	m	15		20
Operation Ranges Cool/Heat	C^o	-10 to 46 / -15 to 24
