Mitsubishi Heavy (MHI) Avanti Plus Wi-Fi SRK35ZSXA-WF-Set 3.5kW Wall Split Air Conditioning System

Calculate Shipping

Request Separate Shipping Quote
Best suited for large or bulky orders. After receiving your order, our team will contact you to arrange a custom shipping quote based on current freight market rates to your location. We work with multiple freight providers to find the best pricing and delivery option for your needs. Please note that final shipping costs will vary from the online shipping estimate.

Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.

Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Sydney Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.

System Name	SRK20ZSXA-WF-SET	SRK25ZSXA-WF-SET	SRK35ZSXA-WF-SET	SRK50ZSXA-WF-SET	SRK60ZSXA-WF-SET

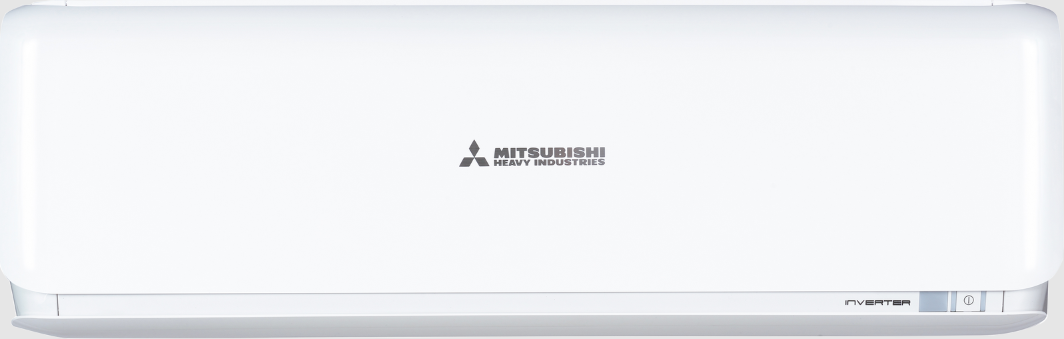

Indoor Unit	SRK20ZSXA-WF	SRK25ZSXA-WF	SRK35ZSXA-WF	SRK50ZSXA-WF	SRK60ZSXA-WF

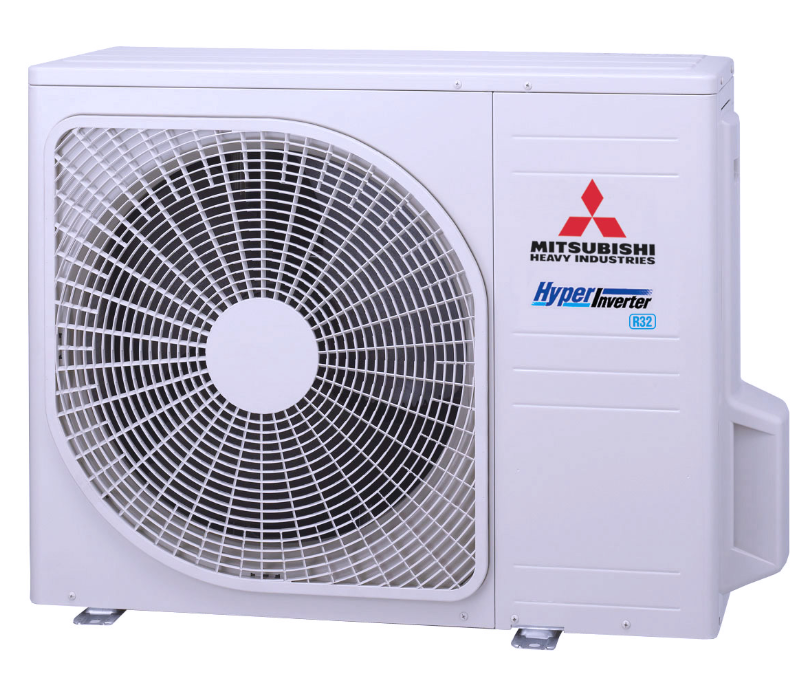

Outdoor Unit	SRC20ZSXA-W	SRC25ZSXA-W	SRC35ZSXA-W	SRC50ZSXA-W	SRC60ZSXA-W
Power Supply	1 Phase, 240V, 50Hz
Cooling Capacity (kW)	2.0	2.5	3.5	5.0	6.0
Heating Capacity (kW)	2.7	3.2	4.3	6.0	6.8
EER/COP	6.45 / 5.74	5.68 / 5.42	4.73 / 4.78	4.03 / 4.41	3.57 / 4.12
Outdoor Sound Power dB(A)	56	57	61	63	65
Refrigerant Type/Amount (kg)	R32 / 1.2			R32 / 1.3
Max Pipe Length (m)	25			30
Max Level Difference (m)	I.D.U Higher 15 / O.D.U Higher 15			I.D.U Higher 20 / O.D.U Higher 20
Indoor Dimensions (HxWxD) (mm)	305 x 920 x 220
Outdoor Dimensions (HxWxD) (mm)	640 x 800(+71) x 290
Indoor Weight (kg)	13
Outdoor Weight (kg)	43			45
Pipe Sizes (mm) (Liquid/Gas)	6.35 / 9.52			6.35 / 12.7

(SRK35ZSXA-WF-Set)

System Name	SRK20ZSXA-WF-SET	SRK25ZSXA-WF-SET	SRK35ZSXA-WF-SET	SRK50ZSXA-WF-SET	SRK60ZSXA-WF-SET
Indoor Unit	SRK20ZSXA-WF	SRK25ZSXA-WF	SRK35ZSXA-WF	SRK50ZSXA-WF	SRK60ZSXA-WF
Outdoor Unit	SRC20ZSXA-W	SRC25ZSXA-W	SRC35ZSXA-W	SRC50ZSXA-W	SRC60ZSXA-W
Power Supply	1 Phase, 240V, 50Hz
Cooling Capacity (kW)	2.0	2.5	3.5	5.0	6.0
Heating Capacity (kW)	2.7	3.2	4.3	6.0	6.8
EER/COP	6.45 / 5.74	5.68 / 5.42	4.73 / 4.78	4.03 / 4.41	3.57 / 4.12
Outdoor Sound Power dB(A)	56	57	61	63	65
Refrigerant Type/Amount (kg)	R32 / 1.2			R32 / 1.3
Max Pipe Length (m)	25			30
Max Level Difference (m)	I.D.U Higher 15 / O.D.U Higher 15			I.D.U Higher 20 / O.D.U Higher 20
Indoor Dimensions (HxWxD) (mm)	305 x 920 x 220
Outdoor Dimensions (HxWxD) (mm)	640 x 800(+71) x 290
Indoor Weight (kg)	13
Outdoor Weight (kg)	43			45
Pipe Sizes (mm) (Liquid/Gas)	6.35 / 9.52			6.35 / 12.7

SKU	SRK35ZSXA-WF-Set
Brand	Mitsubishi Heavy Industries (MHI)
Shipping Weight	56.0000kg
Shipping Width	0.105m
Shipping Height	0.640m
Shipping Length	0.920m
Shipping Cubic	0.223390000m3
Unit Of Measure	ea

Warranty

Mitsubishi Heavy Industries offers up to a 5-year parts and labour warranty for all of their Air Conditioners. Note your product might not be eligible for the full 5-year warranty. Refer to their terms and conditions.
