Mitsubishi Electric SEZM35DALKIT Bulkhead System

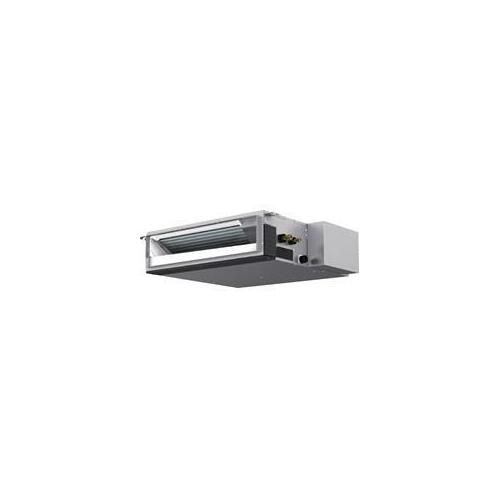

The SEZ-KD35VAQ, equipped with a wireless remote controller.

Mitsubishi Electric SEZ-M35DAL.TH Bulkhead System - Includes Outdoor Unit SUZ-M35VAD-A.TH

Where air conditioning installation is not possible due to lack of wall space or concrete ceilings, a bulkhead can be created to house the SEZ system. Its quiet operation makes it suitable for bedrooms, living rooms and other single room residential or commercial uses.

Features:

Inverter Technology
Low Height - Only 270mm
Air Cleaning Filter

(SEZM35DALKIT)

Indoor Unit				SEZ-M35DA(L)
Outdoor Unit				SUZ-M35VAD
Power Supply			V / Ø	230 / 1
Cooling	Capacity [Min - Rated - Max]		kW	1.5 - 3.5 - 4.0
	Total input [Rated]		kW	1.01
	AEER/EER			3.46 / 3.39
		Star Rating		-
	Sound Pressure Level	Indoor [Low/Med/Hi]	dB(A)	23 - 28 - 33
		Outdoor	dB(A)	48
	Running current [Rated]		A	4.70
	Air Volume (In) [Lo-Mid-Hi]		L/s	117 - 150 - 183
Heating	Capacity [Min - Rated - Max]		kW	1.3 - 4.0 - 5.0
	Total input [Rated]		kW	1.11
	ACOP/COP			3.6 / 3.53
		Star Rating		-
	Sound Pressure Level	Indoor [Low/Med/Hi]	dB(A)	23 - 28 - 33
		Outdoor	dB(A)	48
	Running current [Rated]		A	5.00
	Air Volume (In) [Hi]		L/s	117 - 150 - 183
Indoor Unit	Dimensions [HxWxD]		mm	200 x 790 x 700
	Weight		kg	21.0
Outdoor Unit	Dimensions [HxWxD]		mm	550 x 800 x 285
	Weight		kg	35
Refrigerant (R410A)	Pipe Size	Liquid	mm	ø6.35
		Gas	mm	ø9.52
	Max Pipe Length		m	20
	Max Pipe Height		m	12
Guaranteed Operating Range [Outdoor]		Cooling	°C	-10 to 46
		Heating	°C	-10 to 24

SKU	SEZM35DALKIT
Brand	Mitsubishi Electric
Shipping Weight	56.0000kg
Shipping Width	0.990m
Shipping Height	0.200m
Shipping Length	0.700m
Shipping Cubic	0.264000000m3
