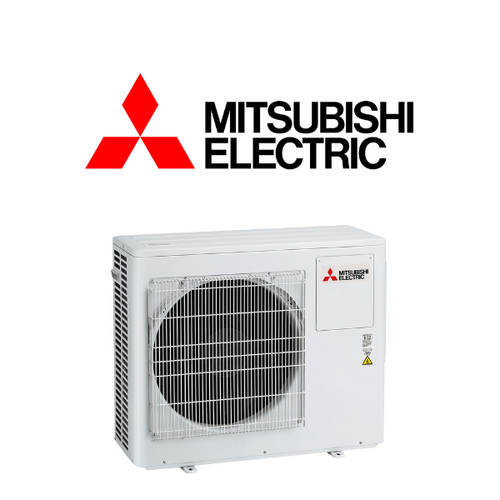

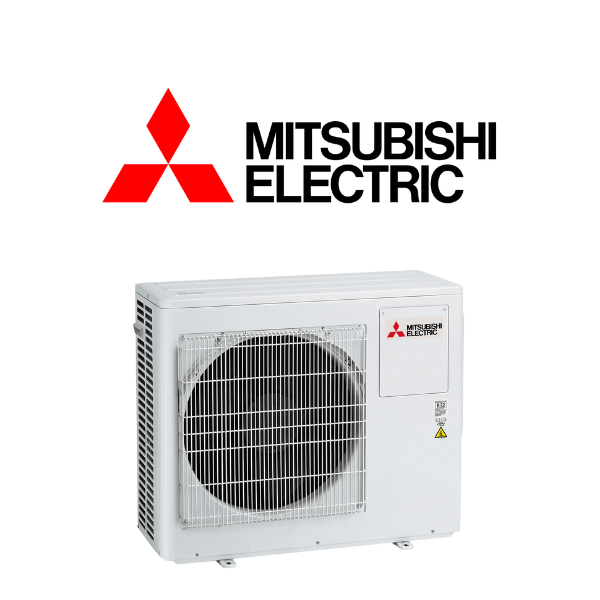

Mitsubishi Electric MXZ-3F54VGD-A1 5.4kW Outdoor Only 2-3 Port Multi R32 Air Conditioning Unit
Mitsubishi Electric Outdoor Multi Unit (2-3 Port)
$2,161.82 Excl GST
*This is an Outdoor Unit Only, not a complete system. An Indoor Multi Unit is Required.
Mitsubishi Electric MXZ-3F54VGD-A1 5.4kW Outdoor 2 - 3 Port Multi R32 Air Conditioning Unit
The MXZ-3F54VGD-A is specifically designed for cooling multiple smaller spaces such as bedroom zones in homes and apartments. This versatile split-system air conditioner connects up to three indoor units to a single outdoor unit, making it an efficient solution for properties with three bedrooms. Its adaptable design allows you to choose from various indoor unit styles to suit individual room layouts while maintaining consistent performance across all connected spaces.
Key Features:
- Capacity: 5.4 kW
- Energy efficient
- Wi-Fi Control
- Quiet operation
- Individual Temperature Control for Each Room
- Demand Response Capable
(MXZ-3F54VGD-A1)
Outdoor Unit Name | MXZ-2F52VF-A1 | MXZ-2F52VGD-A1 | MXZ-3F54VGD-A1 | MXZ-4F71VGD-A1 | MXZ-4F80VGD-A1 | MXZ-5F100VGD-A1 | MXZ-6F120VGD-A1 |
---|---|---|---|---|---|---|---|
Power Supply | 1 Phase, 220-230V, 50-60Hz | ||||||
Cooling Capacity (kW) | 5.2 | 5.2 | 5.4 | 7.1 | 8.0 | 10.0 | 12.0 |
Heating Capacity (kW) | 6.1 | 6.1 | 7.0 | 8.0 | 8.8 | 10.0 | 13.2 |
Indoor Unit Connection | 2 Units | 2 to 3 Units | 2 to 4 Units | 2 to 5 Units | 2 to 6 Units | ||
Total Rated Input (Cool/Heat) (kW) | 1.38 / 1.49 | 1.38 / 1.45 | 1.25 / 1.43 | 1.79 / 1.67 | 1.98 / 1.68 | 2.84 / 2.07 | 3.30 / 3.00 |
EER / COP | 3.77 / 4.09 | 3.77 / 4.21 | 4.32 / 4.90 | 3.97 / 4.79 | 4.04 / 5.24 | 3.52 / 4.83 | 3.64 / 4.40 |
Sound Pressure Level (Cool/Heat) dB(A) | 46 / 50 | 48 / 54 | 49 / 51 | 52 / 56 | 53 / 57 | ||
Max Running Current (A) | 12.2 | 18 | 21.4 | 29.8 | |||
Pre-Charge Refrigerant | 1.0 | 2.4 | |||||
Max Pipe Length (Total / Each) (m) | 30/20 | 40/20 | 50/25 | 60/25 | 70/25 | 80/25 | |
Operating Range (Cool/Heat) (C) | Cooling: -10 to 46 / Heating: -15 to 24 | ||||||
Unit Dimensions (HxWxD) (mm) | 550 x 800 x 285 | 710 x 840 x 330 | 796 x 950 x 330 | 1048 x 950 x 330 | |||
Unit Weight (kg) | 37 | 57 | 58 | 59 | 61 | 62 | 87 |
Pipe Sizes (mm) (Liquid/Gas) | (6.4/9.5)x2 | (6.4/9.5)x3 | (6.4/9.5)x3 + (6.4/12.7)x1 | (6.4/9.5)x4 + (6.4/12.7)x1 | (6.4/9.5)x5 + (6.4/12.7)x1 |
SKU | MXZ-3F54VGD-A1 |
Brand | Mitsubishi Electric |
Shipping Weight | 58.0000kg |
Shipping Width | 0.330m |
Shipping Height | 0.710m |
Shipping Length | 0.840m |
Shipping Cubic | 0.196812000m3 |
Unit Of Measure | ea |
