Mitsubishi Electric MLN25VGDA1KIT 2.5kW Wall Split Wi-Fi Air Conditioning System

Buying Options

Image	Name	Price

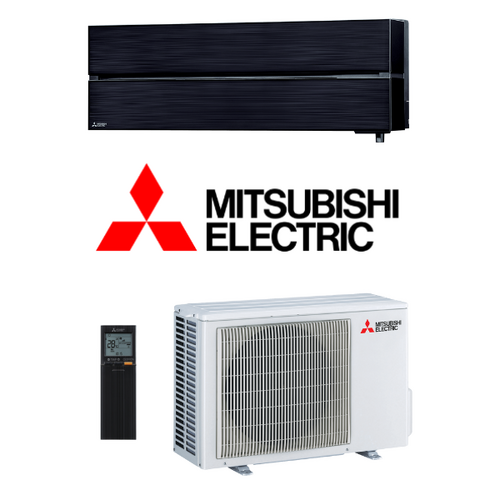

	Mitsubishi Electric MLN25VGDBA1KIT 2.5kW Wall Split Air Conditioning System (Black) MSZ-LN25VGDB-A1/MUZ-LN25VGD-A1 Mitsubishi Electric Split	$1,936.00 In stock
	Mitsubishi Electric MLN25VGDRA1KIT 2.5kW Wall Split Air Conditioning System (Red) MSZ-LN25VGDR-A1/MUZ-LN25VGD-A1 Mitsubishi Electric Split	$1,936.00 In stock
	Mitsubishi Electric MLN25VGDVA1KIT 2.5kW Wall Split Air Conditioning System (White) MSZ-LN25VGDV-A1/MUZ-LN25VGD-A1 Mitsubishi Electric Split	$1,936.00 In stock

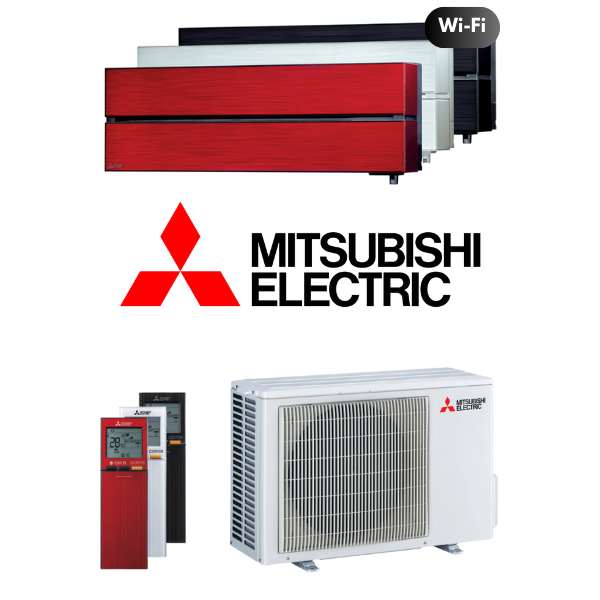

Mitsubishi Electric MLN25VGDA1KIT 2.5kW LN Series Wall Split System (White / Red / Black) (Built-In Wi-Fi) - Includes Outdoor Unit MUZ-LN25VGD-A1 and Wireless Controller

The LN Series is a wall mounted system that blends energy efficiency with a sleek and ultra modern design. The stylish design is available with a range of deep, rich colours like pearl white, ruby red and onyx black, resulting in a premium quality feel.

Features:

3D i-See Sensor
Absence Detection
Built In Wi-Fi Control
Direct/Indirect Airflow
Dual Barrier Coating
Dual split vane technology
Plasma Quad Plus Filter
Sleek and ultra modern design

(MLN25VGDA1KIT)

System Name	MLN25VGD(V/B/R)A1KIT	MLN35VGD(V/B/R)A1KIT	MLN50VGD(V/B/R)A1KIT	MLN60VGD(V/B/R)A1KIT
Indoor Unit	MSZ-LN25VGD(V/B/R)-A1	MSZ-LN35VGD(V/B/R)-A1	MSZ-LN50VGD(V/B/R)-A1	MSZ-LN60VGD(V/B/R)-A1
Outdoor Unit	MUZ-LN25VGD-A1	MUZ-LN35VGD-A1	MUZ-LN50VGD-A1	MUZ-LN60VGD-A1
Power Supply	1 Phase, 220 ~ 240V, 50Hz
Refrigerant	R32
Cooling Capacity (kW)	2.5	3.5	5.0	6.1
Heating Capacity (kW)	3.2	4.0	6.0	6.8
Capacity Min-Max Cool/Heat (kW)	1.0-3.5 / 0.7-5.4	0.8-4.0 / 0.9-6.3	1.0-6.0 / 1.0-8.2	1.4-6.9 / 1.8-9.8
Total Rated Input Cool/Heat (kW)	0.49 / 0.60	0.82 / 0.82	1.38 / 1.48	1.73 / 1.80
Total Input Min-Max Cool/Heat (kW)	0.18-0.90 / 0.15-1.50	0.16-1.18 / 0.17-1.88	0.19-2.33 / 0.17-3.00	0.27-2.73 / 0.33-3.62
EER/COP	5.1 / 5.33	4.27 / 4.88	3.62 / 4.05	3.53 / 3.78
AEER/ACOP	5.07 / 5.30	4.25 / 4.86	3.61 / 4.04	3.52 / 3.77
TCSPF Residential (H/Avg/C) - Cool	6.92 / 6.48 / 6.74	6.08 / 5.75 / 6.05	5.32 / 5.07 / 5.38	4.85 / 4.64 / 4.87
HSPF Residential (H/Avg/C) - Heat	5.54 / 5.25 / 4.93	5.42 / 5.03 / 4.62	4.75 / 4.32 / 3.87	4.72 / 4.21 / 3.74
ZERL Residential Star Rating (H/Avg/C) Cool	5.0 / 4.5 / 5.0	4.5 / 4.0 / 4.5	3.5 / 3.5 / 3.5	3.0 / 3.0 / 3.0
ZERL Residential Star Rating (H/Avg/C) Heat	4.0 / 3.5 / 3.0	3.5 / 3.5 / 3.0	3.0 / 2.5 / 2.0
Rated Running Current Cool/Heat (A)	2.7 / 3.4	3.8 / 3.8	6.3 / 6.8	7.8 / 7.53
Sound Pressure (Q/L/M/H/SH) dBA Cool	19 / 23 / 29 / 36 / 42	19 / 24 / 29 / 36 / 43	27 / 31 / 35 / 39 / 46	29 / 37 / 41 / 45 / 49
Sound Pressure (Q/L/M/H/SH) dBA Heat	19 / 24 / 29 / 38 / 45	19 / 24 / 29 / 38 / 45	25 / 29 / 35 / 43 / 47	29 / 37 / 41 / 45 / 49
Sound Pressure Level Out (PWL) dBA Cool	46(60)	49(61)	51(64)	55(65)
Sound Pressure Level Out (PWL) dBA Heat	49(61)	50(62)	54(66)	55(69)
Air Volume In Cool/Heat (Quiet-SHi) L/s	78-207 / 75-232	78-217 / 75-232	95-232 / 90-262	118-262 / 108-262
Max. Running Current (A)	7.1	9.9	13.9	15.2
Indoor Dimensions (HxWxD) (mm)	307 x 890 x 233
Outdoor Dimensions (HxWxD) (mm)	550 x 800 x 285		714 x 800 x 285	880 x 840 x 330
Indoor Weight (kg)	15.5		16
Outdoor Weight (kg)	33	34	40	53
Pipe Sizes (mm) (Liquid/Gas)	6.35 / 9.52			6.35 / 12.7
Max Piping Length/Height (m)	20 / 12		30 / 12	30 / 15
Outdoor Operating Range Cool/Heat (C)	-10 to 46 / -15 to 24
Refrigerant Amount Pre-Charged (kg)	0.80	0.85	1.25	1.45
