Mitsubishi Electric Compact Cassette SLZM35VA2MAKIT 3.5kW 1 Phase Air Conditioning System (Wired Control)

Mitsubishi Electric-SLZM35VA2MAKIT
Mitsubishi Electric-SLZM35VA2MAKIT
Mitsubishi Electric-SLZM35VA2MAKIT

Mitsubishi Electric Compact Cassette SLZM35VA2MAKIT 3.5kW 1 Phase Air Conditioning System (Wired Control)

SLZ-M35FA3.TH/SUZ-M35VAD2-A.TH Mitsubishi Cassette




$2,116.00 Incl GST
$1,923.64 Excl GST
In Stock

Calculate Shipping


Request Separate Shipping Quote
Best suited for large or bulky orders. After receiving your order, our team will contact you to arrange a custom shipping quote based on current freight market rates to your location. We work with multiple freight providers to find the best pricing and delivery option for your needs. Please note that final shipping costs will vary from the online shipping estimate.
Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.
Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Sydney Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.

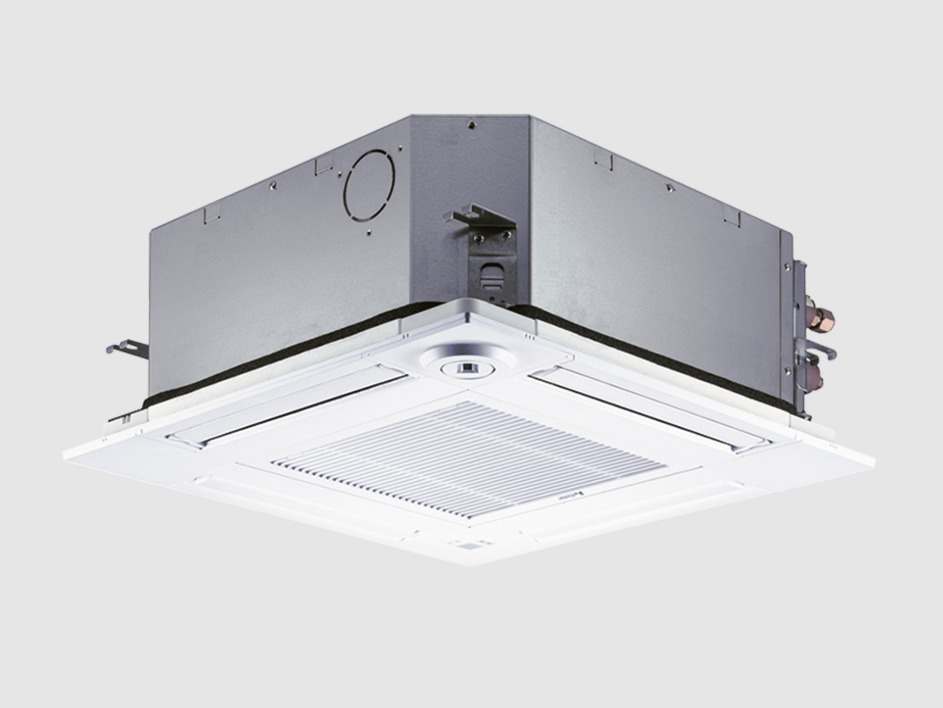

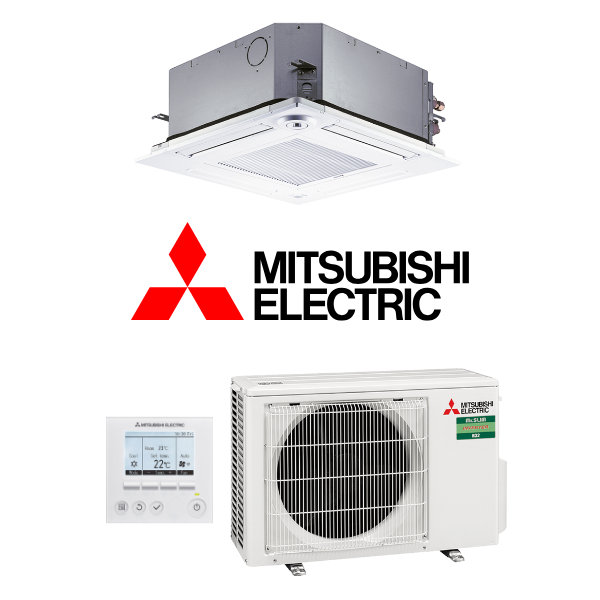

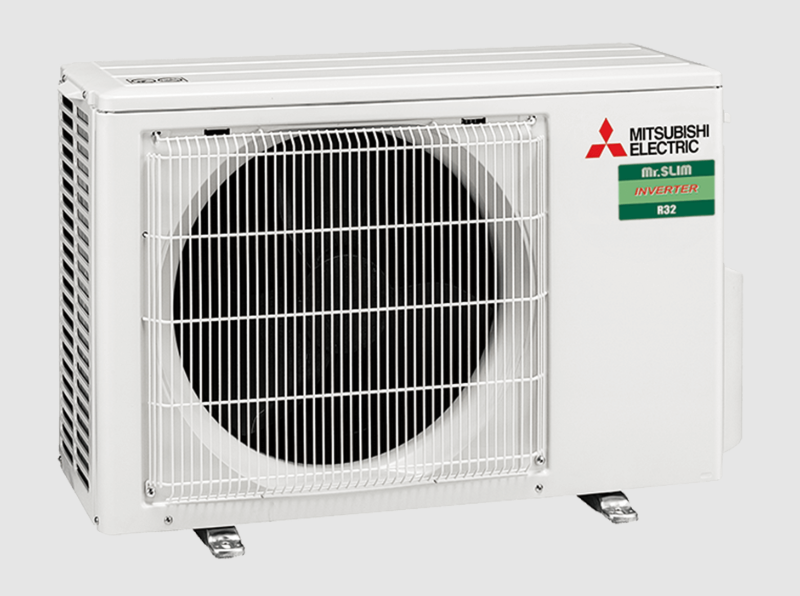

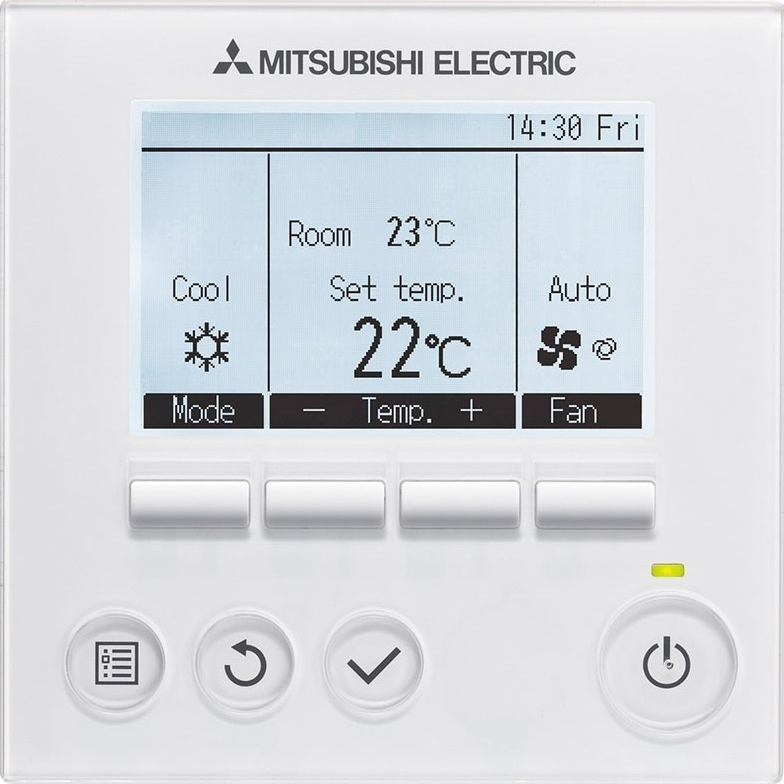

Mitsubishi Electric Compact Cassette SLZM35VA2MAKIT 3.5kW Single Phase Air Conditioner - Includes Outdoor Unit and PAR-41MAAM Wired Wall Mounted Controller

Engineered for versatility and efficiency, the SLZ-M ceiling cassette air conditioner sets the standard in climate control. With its compact design and advanced features, this unit is ideal for those seeking a blend of style, functionality, and energy efficiency in their air conditioning needs.

Key Features:

  • Compact Design
  • Built-in Drain Pump
  • Horizontal Airflow
  • Set Airflow Height According to Ceiling Height
  • Weekly Timer
  • Outside Air Intake

(SLZM35VA2MAKIT)

System SLZM25VA2MAKIT SLZM35VA2MAKIT SLZM50VA2MAKIT SLZM60VA2MAKIT
Indoor Unit SLZ-M25FA3.TH SLZ-M35FA3.TH SLZ-M50FA3.TH SLZ-M60FA3.TH
Outdoor Unit SUZ-M25VAD2-A.TH SUZ-M35VAD2-A.TH SUZ-M50VAD2-A.TH SUZ-M60VAD2-A.TH
Cooling Capacity Rated/Min-Max kW 2.5 (1.5-3.5) 3.5 (1.5-4.0) 5.0 (2.3-5.5) 5.6 (2.3-6.7)
Heating Capacity Rated/Min-Max 3.0 (1.3-4.1) 4.0 (1.3-5.0) 5.0 (1.7-5.5) 6.0 (2.5-7.6)
Power Supply 1 Phase, 230V, 50/60Hz
EER/COP 4.03 / 3.85 3.76 / 3.80 3.35 / 3.16 3.41 / 3.20
Total Input Rated Cool/Heat kW 0.62 / 0.78 0.93 / 1.05 1.49 / 1.58 1.64 / 1.87
Star Rating Cool/Heat 3.5 / 2.5 3.0 / 2.5 2.0 / 1.5 2.0 / 1.5
Rated Running Current Cool/Heat A 3.30 / 3.90 4.30 / 4.80 6.60 / 7.10 7.20 / 8.20
Sound Pressure Level In (Lo/Me/Hi) Cool dBA 25 - 28 - 31 25 - 33 - 39 27 - 34 - 39 32 - 40 - 43
Sound Pressure Level Out (PWL) Cool 45(59) 48(62) 48(64) 49(65)
Sound Pressure Level In (Lo/Me/Hi) Heat 25 - 28 - 31 25 - 33 - 39 27 - 34 - 39 32 - 40 - 43
Sound Pressure Level Out (PWL) Heat 46(59) 48(63) 49(66) 51(68)
Air Volume (In) Lo/Me/Hi Cool L/s 108 - 125 - 142 108 - 150 - 192 117 - 150 - 192 125 - 192 - 217
Air Volume (In) Lo/Me/Hi Heating 108 - 125 - 142 108 - 150 - 192 117 - 150 - 192 125 - 192 - 217
Max Running Current A 7.0 8.8 13.8 15.2
Indoor Unit Dimensions HxWxD mm 245 x 570 x 570
Panel Dimensions HxWxD 10 x 625 x 625
Outdoor Unit Dimensions HxWxD 550 x 800 x 285 714 x 800 x 285 880 x 840 x 330
Indoor Unit Weight kg 15
Panel Weight 3
Outdoor Unit Weight 30 35 41 54
Pipe Sizes (Liquid/Gas) mm 6.35 / 9.52 6.35 / 12.7 6.35 / 15.88
Max. Piping Length/Height m 20 / 12 30 / 30
Outdoor Operating Range Cool/Heat C -10 to 52 / -10 to 24 -15 to 52 / -10 to 24
Pre-Charge R32 Refrigerant kg 0.65(7m) 0.90(7m) 1.20(7m) 1.25(7m)
Additional Refrigerant g/m 20
SKU SLZM35VA2MAKIT
Brand Mitsubishi Electric
Shipping Weight 53.0000kg
Shipping Cubic 0.208906000m3
Unit Of Measure ea
