Mitsubishi Electric Cassette PLAM71V2MAKIT 7.1kW 1 Phase Inverter Air Conditioning System

Mitsubishi Electric-PLAS71V2MAKIT
Mitsubishi Electric-PLAS71V2MAKIT
Mitsubishi Electric-PLAS71V2MAKIT

Mitsubishi Electric Cassette PLAM71V2MAKIT 7.1kW 1 Phase Inverter Air Conditioning System

PLA-M71EA2-A.TH/SUZ-M71VAD2-A.TH Mitsubishi Cassette




$3,351.00 Incl GST
$3,046.36 Excl GST
In Stock

Calculate Shipping


Request Separate Shipping Quote
Best suited for large or bulky orders. After receiving your order, our team will contact you to arrange a custom shipping quote based on current freight market rates to your location. We work with multiple freight providers to find the best pricing and delivery option for your needs. Please note that final shipping costs will vary from the online shipping estimate.
Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.
Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Sydney Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.

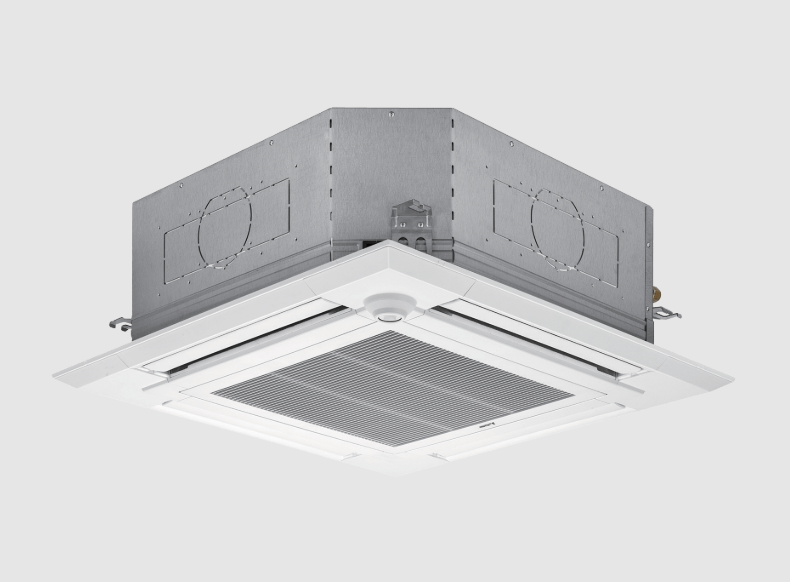

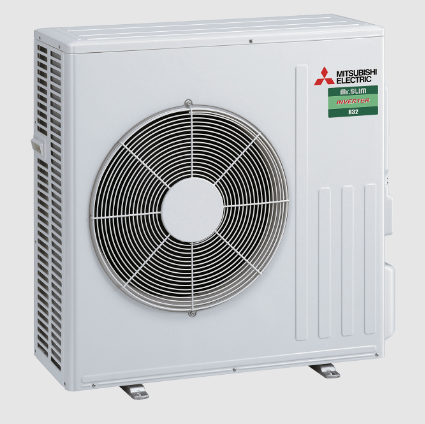

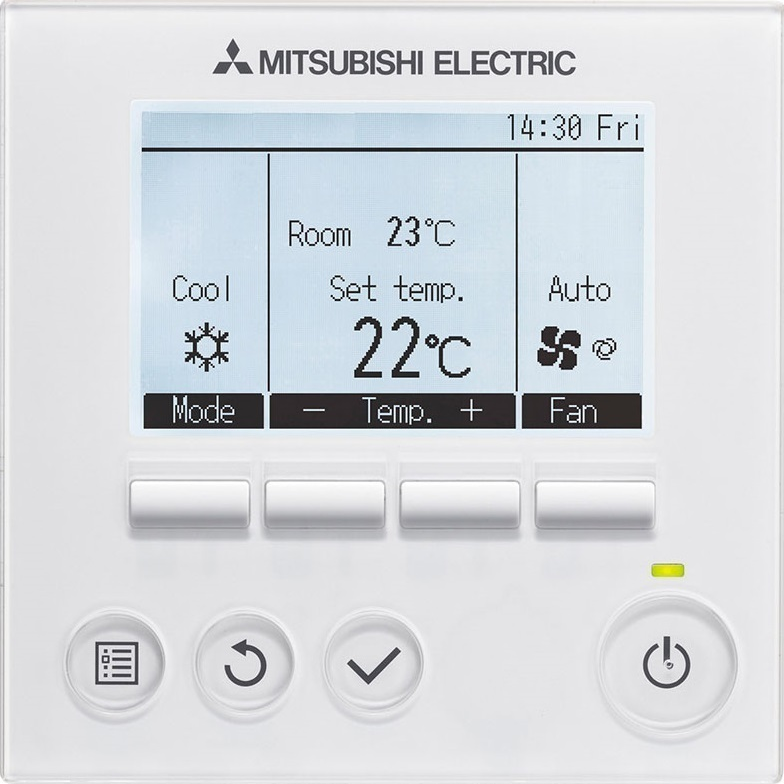

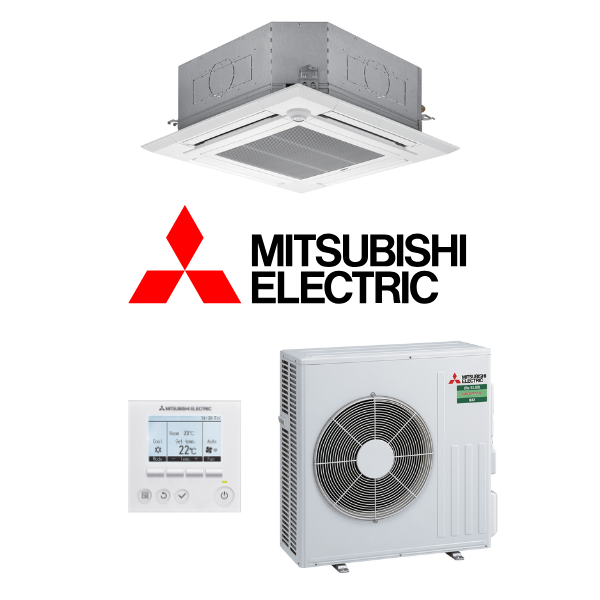

Mitsubishi Electric PLAS71V2MAKIT 7.1kW Single Phase Ceiling Cassette Air Conditioner - Includes Outdoor Unit and PAR-41MAAM Wired Wall Controller

The Mitsubishi Electric PLA-M Series are ceiling cassettes that features a modern style with a sleek finish designed to fit discreetly with contemporary interior design, and performance providing enhanced airflow distribution for optimal comfort.

Key Features:

  • Wide Airflow - This Cassette has the capacity to circulate air evenly throughout a room with the use of wide-angle outlets. A 20% reduction in horizontal airflow and fan speed is achieved when comparing to conventional models, increasing the comfort experienced by occupants.
  • Horizontal Airflow - The airflow control reduces uncomfortable drafty feelings with the introduction of a horizontal airflow that spreads across the ceiling.
  • Built-in Drain Pump

(PLAS71V2MAKIT)

System PLAS71V2MAKIT PLAM100V2MAKIT PLAM125V2MAKIT
Indoor Unit PLA-M71EA2-A.TH PLA-M100EA2-A.TH PLA-M125EA2-A.TH
Outdoor Unit SUZ-M71VAD2-A.TH PUZ-M100VKA2-A.TH PUZ-M125VKA2-A.TH
Cooling Capacity Rated/Min-Max kW 7.1 (2.8-8.1) 10.0 (4.0-10.6) 12.0 (5.8-13.0)
Heating Capacity Rated/Min-Max 8.0 (2.6-10.2) 11.2 (2.8-12.5) 14.0 (4.1-15.0)
Power Supply 1 Phase, 230V, 50Hz
EER/COP 3.79 / 3.68 3.47 / 3.75 3.46 / 3.63
Total Input Rated Cool/Heat kW 1.87 / 2.17 2.88 / 2.98 3.46 / 3.85
Rated Running Current Cool/Heat A 8.2 / 9.5 12.9 / 13.3 16.8 / 17.3
Sound Pressure Level In (L/M2/M1/H) Cool dBA 28 - 30 - 32 - 34 31 - 34 - 37 - 40 33 - 37 - 41 - 44
Sound Pressure Level Out (PWL) Cool 49(66) 52(71) 54(72)
Sound Pressure Level In (L/M2/M1/H) Heat 28 - 30 - 32 - 34 31 - 34 - 37 - 40 33 - 37 - 41 - 44
Sound Pressure Level Out (PWL) Heat 51(68) 54(72) 56(74)
Air Volume (In) Lo/Mid2/Mid1/Hi Cool L/s 267 - 283 - 317 - 350 317 - 383 - 433 - 483 350 - 417 - 467 - 517
Air Volume (In) Lo/Mid2/Mid1/Hi Heat 267 - 283 - 317 - 350 317 - 383 - 433 - 483 350 - 417 - 467 - 517
Max Running Current A 15.1 20.5 27.2
Indoor Unit Dimensions HxWxD mm 258 x 840 x 840 298 x 840 x 840
Panel Dimensions HxWxD 40 x 950 x 950
Outdoor Unit Dimensions HxWxD 880 x 840 x 330 981 x 1050 x 330(+40)
Indoor Unit Weight kg 21 24 27
Panel Weight 5
Outdoor Unit Weight 55 76 84
Pipe Sizes (Liquid/Gas) mm 9.52 / 15.88
Max. Piping Length/Height m 30 / 30 55 / 30
Outdoor Operating Range Cool/Heat C -15 to 52 / -10 to 24 -15 to 46 / -15 to 21
Pre-Charge R32 Refrigerant kg 1.45(7m) 3.10(30m) 3.60(30m)
Additional Refrigerant g/m 40
SKU PLAS71V2MAKIT
Brand Mitsubishi Electric
Shipping Weight 81.0000kg
Shipping Cubic 0.462081000m3
Unit Of Measure ea
