Best Prices LG AI Air Standard AS12S0S 3.5kW Wi-Fi Air Conditioner Low Cost Install Brisbane Sydney

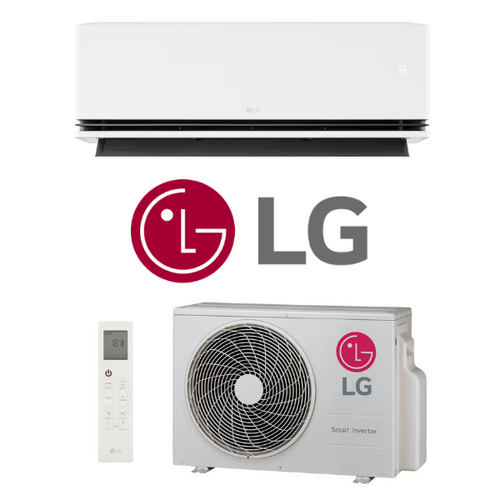

LG DualCool AS12S0S AI Air Standard 3.5kW Wall Split Wi-Fi Air Conditioning System

Calculate Shipping

Request Separate Shipping Quote
Best suited for large or bulky orders. After receiving your order, our team will contact you to arrange a custom shipping quote based on current freight market rates to your location. We work with multiple freight providers to find the best pricing and delivery option for your needs. Please note that final shipping costs will vary from the online shipping estimate.

Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.

Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Sydney Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.

System	AS09S0S	AS12S0S	AS18S1S	AS24S2S
Indoor Unit	AS09S0N	AS12S0N	AS18S1N	AS24S2N
Outdoor Unit	AS09S0U	AS12S0U	AS18S1U	AS24S2U
Cooling Capacity Rated/Min-Max (kW)	2.5 (0.89-3.7)	3.5 (0.89-4.05)	4.8 (1.2-5.5)	7.1 (1.85-7.5)
Rated Heating Capacity (kW)	3.0 (0.89-4.6)	3.7 (0.89-5.0)	5.2 (1.2-6.4)	7.7 (2.22-8.5)
Power Supply (V/Ph/Hz)	220-240 / 1 / 50
Rated Power Input Cool/Heat (kW)	0.575 / 0.69	0.95 / 0.945	1.485 / 1.37	2.2 / 2.1
Running Current (A)	3.0 / 3.4	4.5 / 4.4	7.1 / 6.3	10.0 / 9.5
EER/COP (W/W)	4.35 / 4.35	3.68 / 3.92	3.23 / 3.80	3.23 / 3.67
AEER/ACOP	4.32 / 4.33	3.67 / 3.90	3.22 / 3.79	3.22 / 3.66
Energy Label Grade Hot/Mix/Cold (Cool)	5.0 / 4.5 / 4.5	4.0 / 3.5 / 4.0	3.5 / 3.5 / 3.5	3.5 / 3.5 / 4.0
Energy Label Grade Hot/Mix/Cold (Heat)	3.0 / 2.5 / 2.5	3.0 / 2.5 / 2.0	3.0 / 2.5 / 2.0	2.5 / 2.0 / 1.5
Indoor Air Flow SH/H/M/L Cool (L/s)	212 / 172 / 127 / 80	212 / 172 / 127 / 80	268 / 200 / 160 / 125	350 / 284 / 242 / 190
Indoor Air Flow SH/H/M/L Heat (L/s)	217 / 172 / 127 / 80	217 / 172 / 127 / 80	270 / 210 / 175 / 125	384 / 284 / 242 / 190
IDU Sound Pressure Level SH/H/M/L Cool dBA	- / 43 / 37 / 27 / 20	- / 43 / 37 / 27 / 20	- / 44 / 39 / 34 / 31	- / 49 / 44 / 40 / 30
IDU Sound Pressure Level SH/H/M/L Heat dBA	- / 43 / 37 / 27	- / 43 / 37 / 27	- / 44 / 39 / 34	- / 49 / 44 / 40
Indoor Unit Dimensions (HxWxD) (mm)	307 x 799 x 235		307 x 895 x 235	307 x 1050 x 235
Indoor Unit Net Weight (kg)	10		11.2	12.6
Compressor / Condenser	Twin Rotary / Gold
Outdoor Sound Pressure Level Cool/Heat dB(A)	49 / 51		53 / 55	54 / 57
Outdoor Sound Power Level dB(A)	56	58	61	63
Outdoor Unit Dimensions (HxWxD) (mm)	545 x 770 x 288			650 x 870 x 330
Outdoor Unit Net Weight (kg)	29.9		33	44
Outdoor Operating Range Cool/Heat (C)	-10 to 48 / -15 to 24
Field Connections
Circuit Breaker (A)	16		20	25
Power Supply Cable (No. x mm2)	3 x 1.0		3 x 2.5
Power and Communication Cable	4 x 1.0mm^2
Field Piping
Pipe Sizes (Liquid/Gas) (mm)	6.35 / 9.52		6.35 / 12.7
Connection Method IDU/ODU	Flared / Flared
Drain Hose Size IDU/ODU	21.5 / 16
Min/Std/Max Piping Length (m)	3 / 7.5 / 30
Pre-Charge Length (m)	12.5		7.5
Max Elevation Difference (m)	10			20
Refrigerant Type/Pre-Charge (kg)	R32 / 0.8		R32 / 1.0	R32 / 1.3
Additional Charge (g/m)	20

(AS12S0S)

System	AS09S0S	AS12S0S	AS18S1S	AS24S2S
Indoor Unit	AS09S0N	AS12S0N	AS18S1N	AS24S2N
Outdoor Unit	AS09S0U	AS12S0U	AS18S1U	AS24S2U
Cooling Capacity Rated/Min-Max (kW)	2.5 (0.89-3.7)	3.5 (0.89-4.05)	4.8 (1.2-5.5)	7.1 (1.85-7.5)
Rated Heating Capacity (kW)	3.0 (0.89-4.6)	3.7 (0.89-5.0)	5.2 (1.2-6.4)	7.7 (2.22-8.5)
Power Supply (V/Ph/Hz)	220-240 / 1 / 50
Rated Power Input Cool/Heat (kW)	0.575 / 0.69	0.95 / 0.945	1.485 / 1.37	2.2 / 2.1
Running Current (A)	3.0 / 3.4	4.5 / 4.4	7.1 / 6.3	10.0 / 9.5
EER/COP (W/W)	4.35 / 4.35	3.68 / 3.92	3.23 / 3.80	3.23 / 3.67
AEER/ACOP	4.32 / 4.33	3.67 / 3.90	3.22 / 3.79	3.22 / 3.66
Energy Label Grade Hot/Mix/Cold (Cool)	5.0 / 4.5 / 4.5	4.0 / 3.5 / 4.0	3.5 / 3.5 / 3.5	3.5 / 3.5 / 4.0
Energy Label Grade Hot/Mix/Cold (Heat)	3.0 / 2.5 / 2.5	3.0 / 2.5 / 2.0	3.0 / 2.5 / 2.0	2.5 / 2.0 / 1.5
Indoor Air Flow SH/H/M/L Cool (L/s)	212 / 172 / 127 / 80	212 / 172 / 127 / 80	268 / 200 / 160 / 125	350 / 284 / 242 / 190
Indoor Air Flow SH/H/M/L Heat (L/s)	217 / 172 / 127 / 80	217 / 172 / 127 / 80	270 / 210 / 175 / 125	384 / 284 / 242 / 190
IDU Sound Pressure Level SH/H/M/L Cool dBA	- / 43 / 37 / 27 / 20	- / 43 / 37 / 27 / 20	- / 44 / 39 / 34 / 31	- / 49 / 44 / 40 / 30
IDU Sound Pressure Level SH/H/M/L Heat dBA	- / 43 / 37 / 27	- / 43 / 37 / 27	- / 44 / 39 / 34	- / 49 / 44 / 40
Indoor Unit Dimensions (HxWxD) (mm)	307 x 799 x 235		307 x 895 x 235	307 x 1050 x 235
Indoor Unit Net Weight (kg)	10		11.2	12.6
Compressor / Condenser	Twin Rotary / Gold
Outdoor Sound Pressure Level Cool/Heat dB(A)	49 / 51		53 / 55	54 / 57
Outdoor Sound Power Level dB(A)	56	58	61	63
Outdoor Unit Dimensions (HxWxD) (mm)	545 x 770 x 288			650 x 870 x 330
Outdoor Unit Net Weight (kg)	29.9		33	44
Outdoor Operating Range Cool/Heat (C)	-10 to 48 / -15 to 24
Field Connections
Circuit Breaker (A)	16		20	25
Power Supply Cable (No. x mm2)	3 x 1.0		3 x 2.5
Power and Communication Cable	4 x 1.0mm^2
Field Piping
Pipe Sizes (Liquid/Gas) (mm)	6.35 / 9.52		6.35 / 12.7
Connection Method IDU/ODU	Flared / Flared
Drain Hose Size IDU/ODU	21.5 / 16
Min/Std/Max Piping Length (m)	3 / 7.5 / 30
Pre-Charge Length (m)	12.5		7.5
Max Elevation Difference (m)	10			20
Refrigerant Type/Pre-Charge (kg)	R32 / 0.8		R32 / 1.0	R32 / 1.3
Additional Charge (g/m)	20

SKU	AS12S0S
Brand	LG
Shipping Weight	39.9000kg
Shipping Width	0.410m
Shipping Height	0.545m
Shipping Length	0.799m
Shipping Cubic	0.178503000m3
Unit Of Measure	ea
