Best Prices LG Cassette UTS70SET 6.8kW Ceiling Mounted Air Conditioning System Low Cost Install

LG Cassette UTS70SET 6.8kW 1 Phase Ceiling Mounted Air Conditioning System

Calculate Shipping

Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm.

Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Sydney Warehouse. Mon - Fri 8am - 4pm.

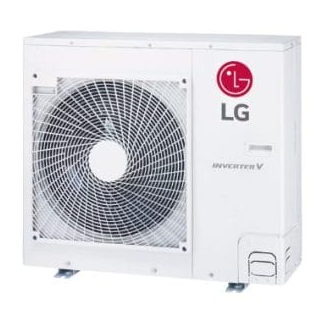

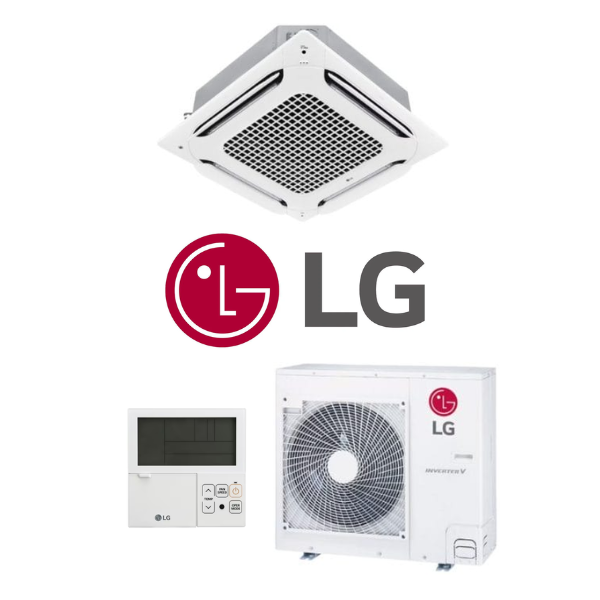

LG UTS70SET 6.8kW Single Phase Ceiling Mounted Cassette Air Conditioner - Includes Outdoor Unit, PT-AAGW0 Dual Vane Panel and Wired Controller

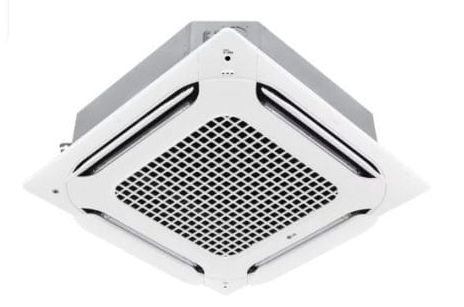

The LG 4-way cassette panels have adapted a unibody shape that matches with the ceiling. The slim & compact design not only saves space but also reduces installation costs. It’s designed to suit most of building designs and fit into various spaces.

Key Features:

Stylish Design Panel & Compact Size
Convenient Panel Installation
4 Way Air Flow with New Dual Vane Design
6 Air Flow Modes
Full 3D Turbo Fan
High Efficiency Heat Exchanger (HEX)
Air Purification Technology

(UTS70SET)

System		UTS70SET	UTS85SET	UTS100SET	UTS125SET	UTS140SET
Indoor Unit		UTN70PB	UTN85PB	UTN100MA	UTN125MA	UTN140MA
Outdoor Unit		UU70WR2	UU85WR2	UU100WR2	UU125WR2	UU140WR2
Cooling Capacity Rated/Min-Max	kW	6.8 (2.7-8.0)	8.0 (3.2-9.2)	9.5 (3.8-12.54)	12.3 (4.8-14.16)	13.6 (5.4-15.68)
Heating Capacity Rated/Min-Max	kW	7.5 (3.0-9.0)	8.9 (3.6-10.1)	10.8 (4.3-13.39)	13.5 (5.4-15.8)	15.5 (6.2-17.52)
Power Supply		1 Phase, 220-240V, 50Hz
AEER/ACOP		3.493 / 3.794	3.243 / 3.375	4.111 / 4.354	3.660 / 3.791	3.162 / 3.506
Rated Current Cool/Heat	A	8.6 / 8.7	10.9 / 11.6	10.1 / 10.7	14.6 / 15.0	18.7 / 19.0
Full Load Amps	A	16.0	17.0		28.0
Air Flow Min-Rated-Max	L/s	173 - 283 - 368	207 - 317 - 412	300 - 458 - 595		333 - 500 - 650
Indoor Unit Dimensions HxWxD	mm	204 x 840 x 840		288 x 840 x 840
Outdoor Unit Dimensions HxWxD	mm	834 x 950 x 300		1380 x 950 x 330
Indoor Unit Weight	kg	21.1		25.3
Outdoor Unit Weight	kg	59		89
Indoor Unit Cooling (SH/H/M/L)	dBA	- / 38 / 36 / 34	- / 40 / 37 / 35	- / 44 / 42 / 41		- / 46 / 44 / 42
Outdoor Unit Cooling/Heating @1.5m	dBA	48 / 52	50 / 52	50 / 50	51 / 52	52 / 53
Compressor Type/Motor		Twin Rotary / BLDC		Inverter Scroll / BLDC
Heat Exchanger Fin /Corrosion Protection Coating		Wide Louver Plus / Black 2
Refrigerant Type/Pre-Charge Length	m	R32 / 10		R32 / 20
Pipe Sizes (Liquid/Gas)	mm	9.52 / 15.88
Piping Length IDU-ODU Min/Rated/Max	m	5.0 / 7.5 / 50.0		5.0 / 7.5 / 85.0
Max Height Difference IDU-ODU Max	m	30
Supply Air Opening LxW	mm	64.3 x 577		64.3 x 590
Return Air Opening LxW	mm	563 x 563
Continuous Operation Cool/Heat	C	-15 to 48 / -18 to 18
Wi-Fi Compatible		Optional (Adaptor Sold Separately)
