LG Cassette UTS125SET 12.3kW 1 Phase Ceiling Mounted Air Conditioning System

LG-UTS125SET
LG-UTS125SET
LG-UTS125SET

LG Cassette UTS125SET 12.3kW 1 Phase Ceiling Mounted Air Conditioning System

UTN125MA / UU125WR2 LG R32 Cassette




$3,639.00 Incl GST
$3,308.18 Excl GST
In Stock

Calculate Shipping


Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm.
Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Sydney Warehouse. Mon - Fri 8am - 4pm.

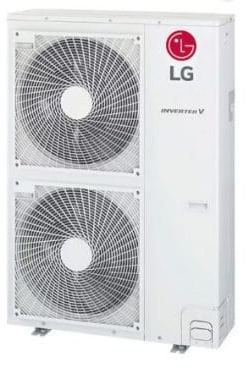

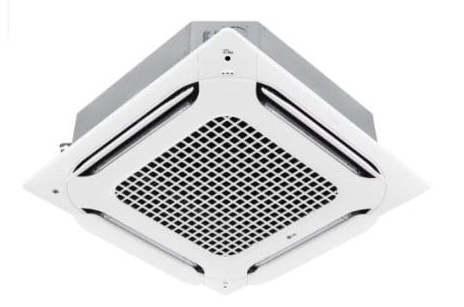

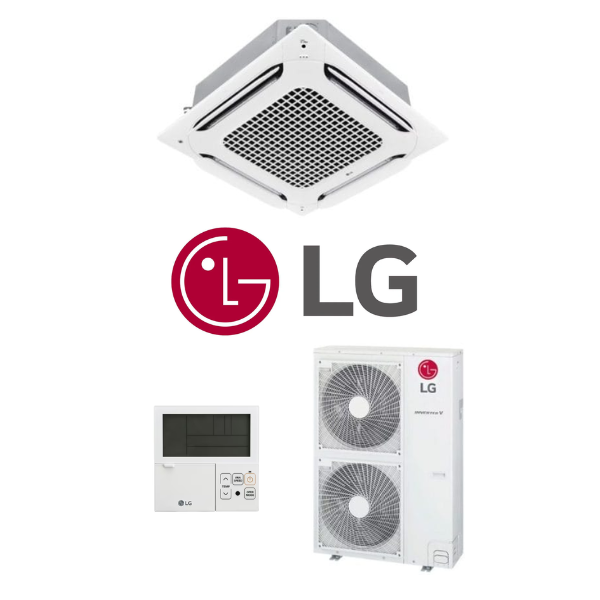

LG UTS125SET 12.3kW Single Phase Ceiling Mounted Cassette Air Conditioner - Includes Outdoor Unit, PT-AAGW0 Dual Vane Panel and Wired Controller

The LG 4-way cassette panels have adapted a unibody shape that matches with the ceiling. The slim & compact design not only saves space but also reduces installation costs. It’s designed to suit most of building designs and fit into various spaces.

Key Features:

  • Stylish Design Panel & Compact Size
  • Convenient Panel Installation
  • 4 Way Air Flow with New Dual Vane Design
  • 6 Air Flow Modes
  • Full 3D Turbo Fan
  • High Efficiency Heat Exchanger (HEX)
  • Air Purification Technology

(UTS125SET)

System UTS70SET UTS85SET UTS100SET UTS125SET UTS140SET
Indoor Unit UTN70PB UTN85PB UTN100MA UTN125MA UTN140MA
Outdoor Unit UU70WR2 UU85WR2 UU100WR2 UU125WR2 UU140WR2
Cooling Capacity Rated/Min-Max kW 6.8 (2.7-8.0) 8.0 (3.2-9.2) 9.5 (3.8-12.54) 12.3 (4.8-14.16) 13.6 (5.4-15.68)
Heating Capacity Rated/Min-Max 7.5 (3.0-9.0) 8.9 (3.6-10.1) 10.8 (4.3-13.39) 13.5 (5.4-15.8) 15.5 (6.2-17.52)
Power Supply 1 Phase, 220-240V, 50Hz
AEER/ACOP 3.493 / 3.794 3.243 / 3.375 4.111 / 4.354 3.660 / 3.791 3.162 / 3.506
Rated Current Cool/Heat A 8.6 / 8.7 10.9 / 11.6 10.1 / 10.7 14.6 / 15.0 18.7 / 19.0
Full Load Amps 16.0 17.0 28.0
Air Flow Min-Rated-Max L/s 173 - 283 - 368 207 - 317 - 412 300 - 458 - 595 333 - 500 - 650
Indoor Unit Dimensions HxWxD mm 204 x 840 x 840 288 x 840 x 840
Outdoor Unit Dimensions HxWxD 834 x 950 x 300 1380 x 950 x 330
Indoor Unit Weight kg 21.1 25.3
Outdoor Unit Weight 59 89
Indoor Unit Cooling (SH/H/M/L) dBA - / 38 / 36 / 34 - / 40 / 37 / 35 - / 44 / 42 / 41 - / 46 / 44 / 42
Outdoor Unit Cooling/Heating @1.5m 48 / 52 50 / 52 50 / 50 51 / 52 52 / 53
Compressor Type/Motor Twin Rotary / BLDC Inverter Scroll / BLDC
Heat Exchanger Fin /Corrosion Protection Coating Wide Louver Plus / Black 2
Refrigerant Type/Pre-Charge Length m R32 / 10 R32 / 20
Pipe Sizes (Liquid/Gas) mm 9.52 / 15.88
Piping Length IDU-ODU Min/Rated/Max m 5.0 / 7.5 / 50.0 5.0 / 7.5 / 85.0
Max Height Difference IDU-ODU Max 30
Supply Air Opening LxW mm 64.3 x 577 64.3 x 590
Return Air Opening LxW 563 x 563
Continuous Operation Cool/Heat C -15 to 48 / -18 to 18
Wi-Fi Compatible Optional (Adaptor Sold Separately)
SKU UTS125SET
Brand LG
Shipping Weight 114.3000kg
Shipping Cubic 0.635843000m3
Unit Of Measure ea
