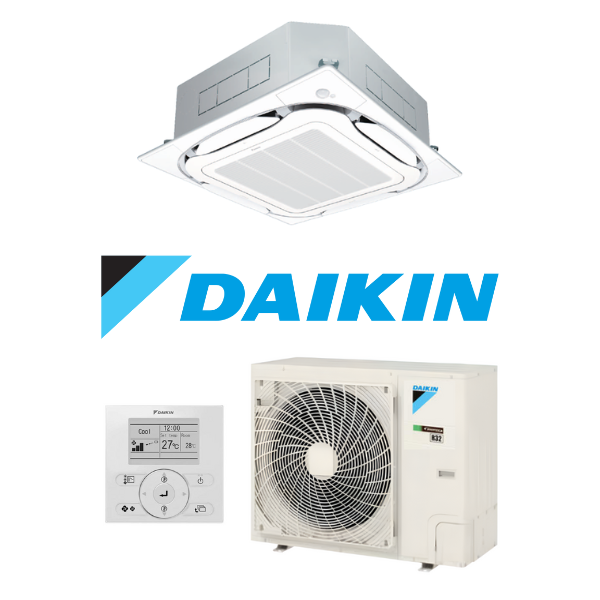

Daikin Standard FCA140C-CF2V 14.0kW Cassette 1 Phase Air Conditioning System

Daikin-FCA140C-CF2V
Daikin-FCA140C-CF2V
Daikin-FCA140C-CF2V

Daikin Standard FCA140C-CF2V 14.0kW Cassette 1 Phase Air Conditioning System

FCA140CVMA / RZAC140F2V1 Daikin Standard Cassette




$6,543.00 Incl GST
$5,948.18 Excl GST
In Stock

Calculate Shipping


Request Separate Shipping Quote
Best suited for large or bulky orders. After receiving your order, our team will contact you to arrange a custom shipping quote based on current freight market rates to your location. We work with multiple freight providers to find the best pricing and delivery option for your needs. Please note that final shipping costs will vary from the online shipping estimate.
Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.
Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Sydney Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.

System Names FCA71CA-CC2V FCA85C-CC2V FCA100C-CC2V FCA125C-CC2V FCA140C-CF2V
Indoor Unit FCA71CAVMA FCA85CVMA FCA100CVMA FCA125CVMA FCA140CVMA
Outdoor Unit RZAC71C2V1 RZAC85C2V1 RZAC100C2V1 RZAC125C2V1 RZAC140F2V1
Rated Cooling Capacity (kW) 7.1 8.5 10.0 12.5 14.0
Rated Heating Capacity (kW) 8.0 10.0 11.2 14.0 16.0
Power Supply 1 Phase, 220-240V, 50Hz
Power Consumption (Cool/Heat) (kW) 1.83 / 1.95 2.25 / 2.42 2.67 / 2.74 3.53 / 3.63 4.18 / 4.20
EER / COP (kW/kW) 3.88 / 4.10 3.78 / 4.13 3.75 / 4.09 3.54 / 3.86 3.35 / 3.81
TCSPF Cooling (Commercial/Residential) - Hot 5.50 / 5.06 5.41 / 5.00 5.23 / 4.86 5.30 / 4.91 5.28 / 4.86
TCSPF Cooling (Commercial/Residential) - Average 5.43 / 4.36 5.41 / 4.43 5.23 / 4.36 5.38 / 4.46 5.75 / 4.53
TCSPF Cooling (Commercial/Residential) - Cold 5.73 / 4.38 5.73 / 4.49 5.23 / 4.43 5.74 / 4.60 6.22 / 4.68
HSPF Heating (Commercial/Residential) - Hot 5.10 / 5.09 4.55 / 4.56 4.56 / 4.56 4.66 / 4.66 5.49 / 5.35
HSPF Heating (Commercial/Residential) - Average 4.78 / 4.56 4.35 / 4.24 4.34 / 4.22 4.40 / 4.22 4.99 / 4.48
HSPF Heating (Commercial/Residential) - Cold 4.31 / 4.03 4.01 / 3.84 3.98 / 3.79 4.03 / 3.80 4.43 / 3.95
Indoor Decoration Panel Colour Fresh White
Indoor Airflow Rate (H/HM/M/ML/L) (l/s) 383 / 350 / 308 / 267 / 225 575 / 517 / 458 / 400 / 333 608 / 558 / 500 / 442 / 383
Indoor Sound Pressure Level (H/HM/M/ML/L) (dBA) 37.0 / 36.0 / 34.0 / 31.0 / 27.5 45.0 / 42.0 / 39.0 / 36.5 / 34.0 46.0 / 43.5 / 41.0 / 38.5 / 36.0
Outdoor Unit Colour Ivory White
Compressor Type Hermatically Sealed Swing Type
Compressor Motor Output (kW) 1.30 2.40 3.30
R32 Refrigerant Amount/Charge (kg) 1.70 (Charged for 30m) 2.60 (Charged for 30m) 2.90 (Charged for 30m) 3.70 (Charged for 30m)
Outdoor Sound Pressure Level Cool/Heat (dBA) 48 / 51 51 / 54 52 / 54 53 / 56 53 / 54
Outdoor Sound Pressure Level (Night Quiet Mode) (dBA) 44 47 48 49
Outdoor Sound Power Level (dBA) 68 70 71 - -
Indoor Operating Range Cool/Heat (C) 14 to 25 / 15 to 27
Outdoor Operating Range Cool/Heat (C) -5 to 46 / -15 to 15.5
Pipe Sizes (Liquid/Gas) (mm) 9.5 / 15.9
Max. Interunit Piping Length (m) 50 (Equivalent Length 70)
Max. Installation Height Difference (m) 30
Heat Insulation Both Liquid and Gas Piping
Indoor Unit Dimensions (HxWxD) (mm) 256 x 840 x 840 298 x 840 x 840
Indoor Decoration Panel Dimensions (HxWxD) (mm) 50 x 950 x 950
Outdoor Unit Dimension (HxWxD) (mm) 595 x 840 x 300 990 x 940 x 320 870 x 1100 x 460
Indoor Unit Weight (kg) 22 26
Indoor Decoration Panel Weight (kg) 5.5
Outdoor Unit Weight (kg) 45 69 78 95

(FCA140C-CF2V)

System Names FCA71CA-CC2V FCA85C-CC2V FCA100C-CC2V FCA125C-CC2V FCA140C-CF2V
Indoor Unit FCA71CAVMA FCA85CVMA FCA100CVMA FCA125CVMA FCA140CVMA
Outdoor Unit RZAC71C2V1 RZAC85C2V1 RZAC100C2V1 RZAC125C2V1 RZAC140F2V1
Rated Cooling Capacity (kW) 7.1 8.5 10.0 12.5 14.0
Rated Heating Capacity (kW) 8.0 10.0 11.2 14.0 16.0
Power Supply 1 Phase, 220-240V, 50Hz
Power Consumption (Cool/Heat) (kW) 1.83 / 1.95 2.25 / 2.42 2.67 / 2.74 3.53 / 3.63 4.18 / 4.20
EER / COP (kW/kW) 3.88 / 4.10 3.78 / 4.13 3.75 / 4.09 3.54 / 3.86 3.35 / 3.81
TCSPF Cooling (Commercial/Residential) - Hot 5.50 / 5.06 5.41 / 5.00 5.23 / 4.86 5.30 / 4.91 5.28 / 4.86
TCSPF Cooling (Commercial/Residential) - Average 5.43 / 4.36 5.41 / 4.43 5.23 / 4.36 5.38 / 4.46 5.75 / 4.53
TCSPF Cooling (Commercial/Residential) - Cold 5.73 / 4.38 5.73 / 4.49 5.23 / 4.43 5.74 / 4.60 6.22 / 4.68
HSPF Heating (Commercial/Residential) - Hot 5.10 / 5.09 4.55 / 4.56 4.56 / 4.56 4.66 / 4.66 5.49 / 5.35
HSPF Heating (Commercial/Residential) - Average 4.78 / 4.56 4.35 / 4.24 4.34 / 4.22 4.40 / 4.22 4.99 / 4.48
HSPF Heating (Commercial/Residential) - Cold 4.31 / 4.03 4.01 / 3.84 3.98 / 3.79 4.03 / 3.80 4.43 / 3.95
Indoor Decoration Panel Colour Fresh White
Indoor Airflow Rate (H/HM/M/ML/L) (l/s) 383 / 350 / 308 / 267 / 225 575 / 517 / 458 / 400 / 333 608 / 558 / 500 / 442 / 383
Indoor Sound Pressure Level (H/HM/M/ML/L) (dBA) 37.0 / 36.0 / 34.0 / 31.0 / 27.5 45.0 / 42.0 / 39.0 / 36.5 / 34.0 46.0 / 43.5 / 41.0 / 38.5 / 36.0
Outdoor Unit Colour Ivory White
Compressor Type Hermatically Sealed Swing Type
Compressor Motor Output (kW) 1.30 2.40 3.30
R32 Refrigerant Amount/Charge (kg) 1.70 (Charged for 30m) 2.60 (Charged for 30m) 2.90 (Charged for 30m) 3.70 (Charged for 30m)
Outdoor Sound Pressure Level Cool/Heat (dBA) 48 / 51 51 / 54 52 / 54 53 / 56 53 / 54
Outdoor Sound Pressure Level (Night Quiet Mode) (dBA) 44 47 48 49
Outdoor Sound Power Level (dBA) 68 70 71 - -
Indoor Operating Range Cool/Heat (C) 14 to 25 / 15 to 27
Outdoor Operating Range Cool/Heat (C) -5 to 46 / -15 to 15.5
Pipe Sizes (Liquid/Gas) (mm) 9.5 / 15.9
Max. Interunit Piping Length (m) 50 (Equivalent Length 70)
Max. Installation Height Difference (m) 30
Heat Insulation Both Liquid and Gas Piping
Indoor Unit Dimensions (HxWxD) (mm) 256 x 840 x 840 298 x 840 x 840
Indoor Decoration Panel Dimensions (HxWxD) (mm) 50 x 950 x 950
Outdoor Unit Dimension (HxWxD) (mm) 595 x 840 x 300 990 x 940 x 320 870 x 1100 x 460
Indoor Unit Weight (kg) 22 26
Indoor Decoration Panel Weight (kg) 5.5
Outdoor Unit Weight (kg) 45 69 78 95
SKU FCA140C-CF2V
Brand Daikin
Shipping Weight 126.5000kg
Shipping Width 0.680m
Shipping Height 0.870m
Shipping Length 1.100m
Shipping Cubic 0.695614000m3
Unit Of Measure ea

Daikin offers a 5-year warranty for all of their Air Conditioners and Controllers.
