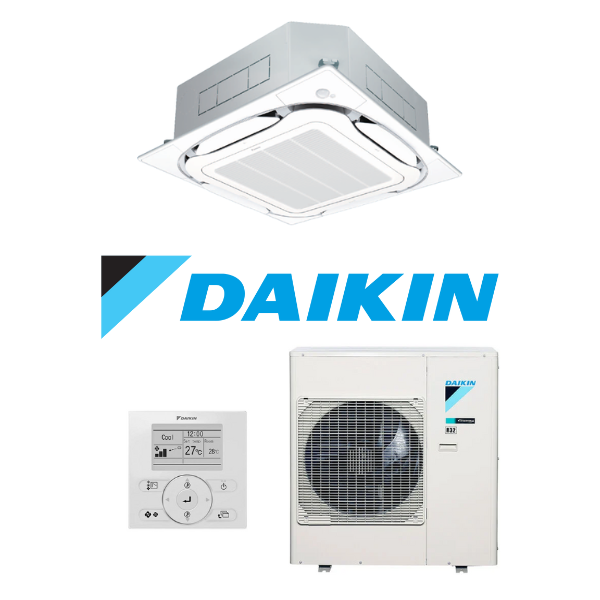

Daikin Standard FCA125C-CC2Y 12.5kW Cassette 3 Phase Air Conditioning System

Daikin-FCA125C-CC2Y
Daikin-FCA125C-CC2Y
Daikin-FCA125C-CC2Y

Daikin Standard FCA125C-CC2Y 12.5kW Cassette 3 Phase Air Conditioning System

FCA125CVMA / RZAC125C2Y1 Standard Daikin Cassette




$5,903.00 Incl GST
$5,366.36 Excl GST
In Stock

Calculate Shipping


Request Separate Shipping Quote
Best suited for large or bulky orders. After receiving your order, our team will contact you to arrange a custom shipping quote based on current freight market rates to your location. We work with multiple freight providers to find the best pricing and delivery option for your needs. Please note that final shipping costs will vary from the online shipping estimate.
Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.
Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Sydney Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.

System Names FCA85C-CC2Y FCA100C-CC2Y FCA125C-CC2Y FCA140C-CF2Y

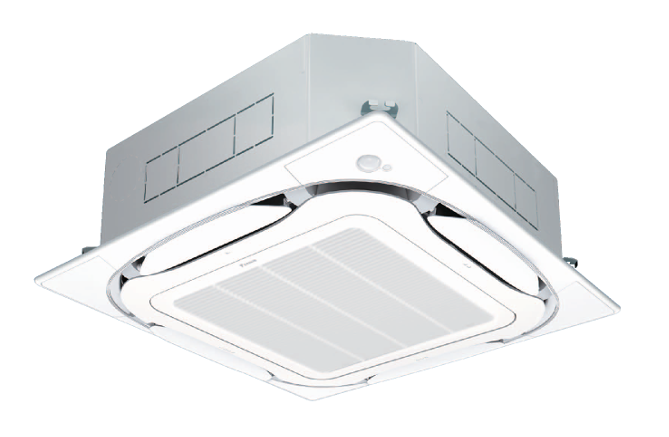

Indoor Unit FCA85CVMA FCA100CVMA FCA125CVMA FCA140CVMA

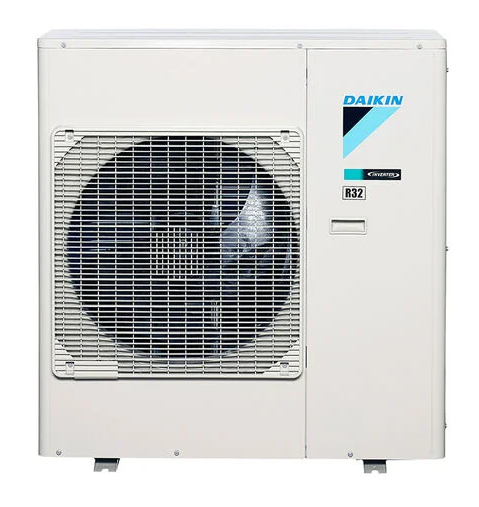

Outdoor Unit RZAC85C2Y1 RZAC100C2Y1 RZAC125C2Y1 RZAC140F2Y1
Rated Cooling Capacity (kW) 8.5 10.0 12.5 14.0
Rated Heating Capacity (kW) 10.0 11.2 14.0 16.0
Power Supply 3 Phase, 380-415V, 50Hz
Power Consumption (Cool/Heat) (kW) 2.25 / 2.42 2.67 / 2.74 3.53 / 3.63 4.18 / 4.20
EER / COP (kW/kW) 3.78 / 4.13 3.75 / 4.09 3.54 / 3.86 3.35 / 3.81
TCSPF Cooling (Commercial/Residential) - Hot 5.41 / 5.00 5.23 / 4.86 5.30 / 4.91 5.28 / 4.86
TCSPF Cooling (Commercial/Residential) - Average 5.41 / 4.43 5.23 / 4.36 5.38 / 4.46 5.75 / 4.53
TCSPF Cooling (Commercial/Residential) - Cold 5.73 / 4.49 5.23 / 4.43 5.74 / 4.60 6.22 / 4.68
HSPF Heating (Commercial/Residential) - Hot 4.55 / 4.56 4.56 / 4.56 4.66 / 4.66 5.49 / 5.35
HSPF Heating (Commercial/Residential) - Average 4.35 / 4.24 4.34 / 4.22 4.40 / 4.22 4.99 / 4.48
HSPF Heating (Commercial/Residential) - Cold 4.01 / 3.84 3.98 / 3.79 4.03 / 3.80 4.43 / 3.95
Indoor Decoration Panel Colour Fresh White
Indoor Airflow Rate (H/HM/M/ML/L) (l/s) 575 / 517 / 458 / 400 / 333 608 / 558 / 500 / 442 / 383
Indoor Sound Pressure Level (H/HM/M/ML/L) (dBA) 45.0 / 42.0 / 39.0 / 36.5 / 34.0 46.0 / 43.5 / 41.0 / 38.5 / 36.0
Outdoor Unit Colour Ivory White
Compressor Type Hermatically Sealed Swing Type
Compressor Motor Output (kW) 2.40 3.30
R32 Refrigerant Amount/Charge (kg) 2.60 (Charged for 30m) 2.90 (Charged for 30m) 3.70 (Charged for 30m)
Outdoor Sound Pressure Level Cool/Heat (dBA) 51 / 54 52 / 54 53 / 56 53 / 54
Outdoor Sound Pressure Level (Night Quiet Mode) (dBA) 47 48 49
Outdoor Sound Power Level (dBA) 70 71 - -
Indoor Operating Range Cool/Heat (C) 14 to 25 / 15 to 27
Outdoor Operating Range Cool/Heat (C) -5 to 46 / -15 to 15.5
Pipe Sizes (Liquid/Gas) (mm) 9.5 / 15.9
Max. Interunit Piping Length (m) 50 (Equivalent Length 70)
Max. Installation Height Difference (m) 30
Heat Insulation Both Liquid and Gas Piping
Indoor Unit Dimensions (HxWxD) (mm) 298 x 840 x 840
Indoor Decoration Panel Dimensions (HxWxD) (mm) 50 x 950 x 950
Outdoor Unit Dimension (HxWxD) (mm) 990 x 940 x 320 870 x 1100 x 460
Indoor Unit Weight (kg) 26
Indoor Decoration Panel Weight (kg) 5.5
Outdoor Unit Weight (kg) 69 78 95

(FCA125C-CC2Y)

System Names FCA85C-CC2Y FCA100C-CC2Y FCA125C-CC2Y FCA140C-CF2Y
Indoor Unit FCA85CVMA FCA100CVMA FCA125CVMA FCA140CVMA
Outdoor Unit RZAC85C2Y1 RZAC100C2Y1 RZAC125C2Y1 RZAC140F2Y1
Rated Cooling Capacity (kW) 8.5 10.0 12.5 14.0
Rated Heating Capacity (kW) 10.0 11.2 14.0 16.0
Power Supply 3 Phase, 380-415V, 50Hz
Power Consumption (Cool/Heat) (kW) 2.25 / 2.42 2.67 / 2.74 3.53 / 3.63 4.18 / 4.20
EER / COP (kW/kW) 3.78 / 4.13 3.75 / 4.09 3.54 / 3.86 3.35 / 3.81
TCSPF Cooling (Commercial/Residential) - Hot 5.41 / 5.00 5.23 / 4.86 5.30 / 4.91 5.28 / 4.86
TCSPF Cooling (Commercial/Residential) - Average 5.41 / 4.43 5.23 / 4.36 5.38 / 4.46 5.75 / 4.53
TCSPF Cooling (Commercial/Residential) - Cold 5.73 / 4.49 5.23 / 4.43 5.74 / 4.60 6.22 / 4.68
HSPF Heating (Commercial/Residential) - Hot 4.55 / 4.56 4.56 / 4.56 4.66 / 4.66 5.49 / 5.35
HSPF Heating (Commercial/Residential) - Average 4.35 / 4.24 4.34 / 4.22 4.40 / 4.22 4.99 / 4.48
HSPF Heating (Commercial/Residential) - Cold 4.01 / 3.84 3.98 / 3.79 4.03 / 3.80 4.43 / 3.95
Indoor Decoration Panel Colour Fresh White
Indoor Airflow Rate (H/HM/M/ML/L) (l/s) 575 / 517 / 458 / 400 / 333 608 / 558 / 500 / 442 / 383
Indoor Sound Pressure Level (H/HM/M/ML/L) (dBA) 45.0 / 42.0 / 39.0 / 36.5 / 34.0 46.0 / 43.5 / 41.0 / 38.5 / 36.0
Outdoor Unit Colour Ivory White
Compressor Type Hermatically Sealed Swing Type
Compressor Motor Output (kW) 2.40 3.30
R32 Refrigerant Amount/Charge (kg) 2.60 (Charged for 30m) 2.90 (Charged for 30m) 3.70 (Charged for 30m)
Outdoor Sound Pressure Level Cool/Heat (dBA) 51 / 54 52 / 54 53 / 56 53 / 54
Outdoor Sound Pressure Level (Night Quiet Mode) (dBA) 47 48 49
Outdoor Sound Power Level (dBA) 70 71 - -
Indoor Operating Range Cool/Heat (C) 14 to 25 / 15 to 27
Outdoor Operating Range Cool/Heat (C) -5 to 46 / -15 to 15.5
Pipe Sizes (Liquid/Gas) (mm) 9.5 / 15.9
Max. Interunit Piping Length (m) 50 (Equivalent Length 70)
Max. Installation Height Difference (m) 30
Heat Insulation Both Liquid and Gas Piping
Indoor Unit Dimensions (HxWxD) (mm) 298 x 840 x 840
Indoor Decoration Panel Dimensions (HxWxD) (mm) 50 x 950 x 950
Outdoor Unit Dimension (HxWxD) (mm) 990 x 940 x 320 870 x 1100 x 460
Indoor Unit Weight (kg) 26
Indoor Decoration Panel Weight (kg) 5.5
Outdoor Unit Weight (kg) 69 78 95
SKU FCA125C-CC2Y
Brand Daikin
Shipping Weight 109.5000kg
Shipping Width 0.546m
Shipping Height 0.990m
Shipping Length 0.940m
Shipping Cubic 0.553186000m3
Unit Of Measure ea

Daikin offers a 5-year warranty for all of their Air Conditioners and Controllers.
