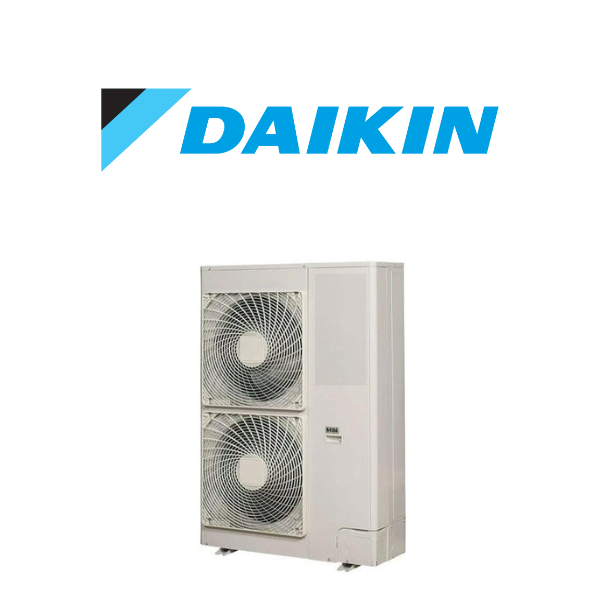

Daikin RXYMQ8AY1 22.4kW Multi Outdoor Only Air Conditioning Unit
Daikin RXYMQ8AY1 Outdoor Multi Unit
$11,042.73 Excl GST
Daikin RXYMQ8AY1 22.4kW VRV IV-S Outdoor Multi Air Conditioning Unit
Daikin's VRV IV-S multi split air conditioning system incorporates the latest technology from our VRV commercial air conditioners including remarkable energy efficiency, quiet operations and long piping runs of up to 100m (24kW Model) for flexible condenser placement.
With the size of the Australian residential properties reducing over time, the compact size and horizontal discharge design of the VRV IV-S outdoor unit makes it an ideal solution for the modern home.
Features:
- Compact Footprint: Available in a wide range of capacities whilst maintaining a compact installation footprint with long piping runs of up to 100m (24kW Model).
- Ultimate Versatility: As many as 14 indoors can be connected, available indoors include bulkheads and ducted units.
- Comfort for Everyone: Each indoor unit can be individually controlled, scheduled and set to the desired room temperature ensuring optimal comfort for all occupants.
- Night Time Quiet Mode: Reduces the outdoor noise levels during sleeping hours and automatically resumes normal operations in the morning.
- Intelligent Comfort: Wall mounted indoor units feature Daikin’s Intelligent Eye human sensor that ensures draught free comfort and energy saving operations when the room is unoccupied.
- Energy Efficient: Running costs are kept low as only rooms requiring air conditioning can be switch on independently.
(RXYMQ8AY1)
System Name | RXYMQ3A2V4A | RXYMQ4A2V4A | RXYMQ5B2VM | RXYMQ6B2VM | RXYMQ8AY1 | RXYMQ9AY1 |
---|---|---|---|---|---|---|
Power Supply | 1 Phase, 220 ~ 240V, 50Hz | 3 Phase, 380 ~ 415V, 50Hz | ||||
Cooling Capacity (kW) | 9.0 | 11.2 | 14.0 | 16.0 | 22.4 | 24.0 |
Heating Capacity (kW) | 10.0 | 12.5 | 14.0 | 16.0 | 25.0 | 26.0 |
MAX Connectable Indoor Units | 5 | 6 | 8 | 9 | 13 | 14 |
Refrigerant Type | R410A | |||||
Sound Level (Cool/Heat) | 51 / 52 | 52 / 54 | 53 / 54 | 55 / 56 | 57 / 58 | 58 / 59 |
Sound Power Level (dBA) | 69 | 70 | 74 | 76 | 75 | 76 |
Max Pipe Length (Total / Per Room) (m) | 50 | 70 | 100 | |||
Outdoor Operating Range (Cooling / Heating) | -5 ~ 46 / -20 ~ 15.5 | |||||
Outdoor Dimensions (HxWxD) (mm) | 990 x 940 x 320 | 1430 x 940 x 320 | ||||
Outdoor Weight (kg) | 71 | 78 | 80 | 138 |
SKU | RXYMQ8AY1 |
Brand | Daikin |
Shipping Weight | 138.0000kg |
Shipping Width | 1.430m |
Shipping Height | 0.320m |
Shipping Length | 0.940m |
Shipping Cubic | 0.430144000m3 |
Unit Of Measure | ea |
Daikin offers a 5-year warranty for all of their Air Conditioners and Controllers.
