Daikin FAA85B-VCY 8.5kW Three Phase Wall Mounted Split System

FAA85BVMA/RZAV85CY1 Commercial Air Conditioner




$4,331.00 Incl GST
$3,937.27 Excl GST
In Stock


Calculate Shipping



Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm.

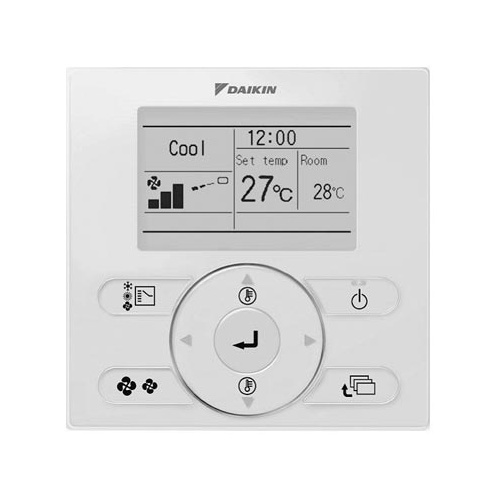

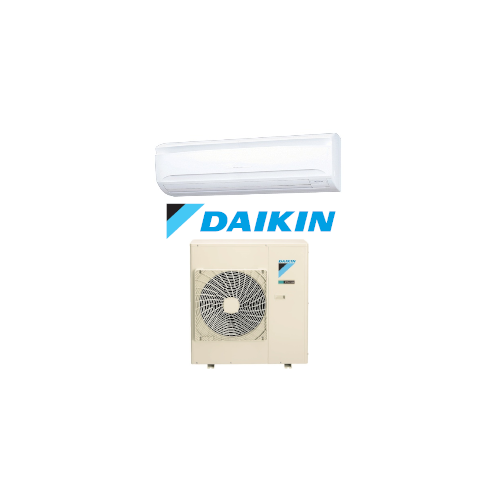

Daikin FAA85B-VCY 8.5kW Three Phase Wall Mounted Split System - Includes BRC1E63 Wired Controller & Outdoor Unit RZAV85CY1

A sophisticated wall mounted unit with wide angle airflow and long air throw for greater comfort even on the far side of the room. Optional fixed controller BRC1E63.


Features:

  • Vertical auto-swing with 5-stem airflow direction
  • Extra high fan speed setting for increased reach
  • R22 retrofit technology

(FAA85B-VCY)

Indoor Unit FAA85BVMA

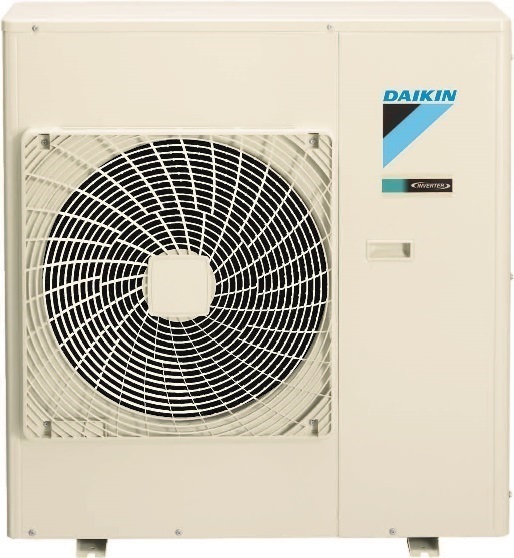

Outdoor Unit RZAV85CY1
Power Supply ø / V / Hz 3 Phase, 380-415V, 50 Hz
Cooling Capacity Rated (Min - Max) kW 8.5 (4.0 - 10.0)
Heating Capacity Rated (Min - Max) kW 10.0 (4.1 - 11.2)
Power Consumption Cooling kW 2.59
Heating kW 3.01
Enery Efficiency EER kW 3.28
COP kW 3.32
Indoor Unit Colour Unit   -
Decoration Panel   Fresh White
Airflow Rate (H / M / L) L/s 433 / 383 / 317
m³/min 26.0 / 23.0 / 19.0
Sound Pressure Level (H / HM / M / ML / L) dB(A) 49.0 / 45.0 / 41.0
Dimensions (HxWxD) Unit mm 340 x 1200 x 240
Machine Weight Unit kg 17
Certified Operation Range Cooling °CWB 14 to 25
Heating °CDB 15 to 27
Outdoor Unit Colour   Ivory white
Compresser Type   Hermetically sealed swing type
Motor output kW 3.3
Refrigerant Charge (R410a) kg 2.9 (charged for 30m)
Sound Level Cooling / Heating dB(A) 52 / 53
Night quiet mode dB(A) 48
Sound Power Level (H/L) dB(A) 71
Dimensions (HxWxD) mm 990 x 940 x 320
Machine Weight kg 78
Certified Operation range Cooling °CDB -5 to 50
Heating °CWB -15 to 15.5
Piping Connections Liquid (Flare) mm ø9.5
Gas (Flare) mm ø15.9
Drain Indoor Unit mm I.D. ø13 x O.D ø18
Outdoor Unit mm ø26.0 (Hole)
Refrigerant   R32
Max, interunit piping length m 50 (Equivalent length 70)
Max. Installation level difference m 30
Heat insulation   Both liquid and gas piping
SKU FAA85B-VCY
Brand Daikin
Shipping Weight 88.0000kg
Shipping Cubic 0.370263000m3
