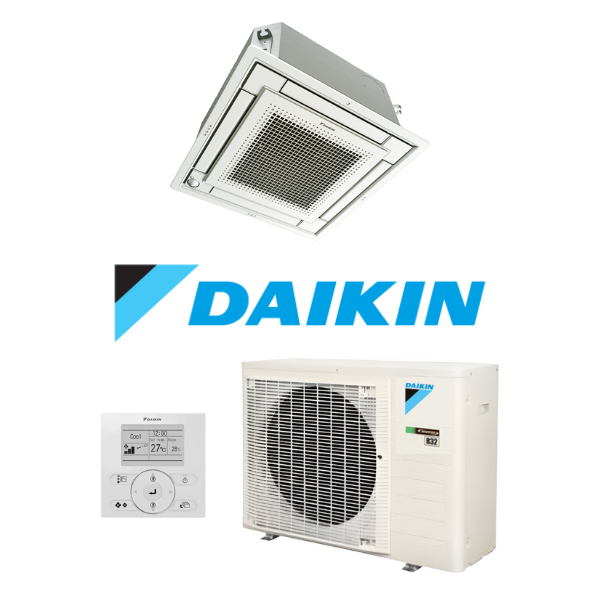

Daikin Compact Cassette FFA60B-CE2V 6.0kW 1 Phase R32 Air Conditioning System

Daikin-FFA60B-CE2V
Daikin-FFA60B-CE2V
Daikin-FFA60B-CE2V

Daikin Compact Cassette FFA60B-CE2V 6.0kW 1 Phase R32 Air Conditioning System

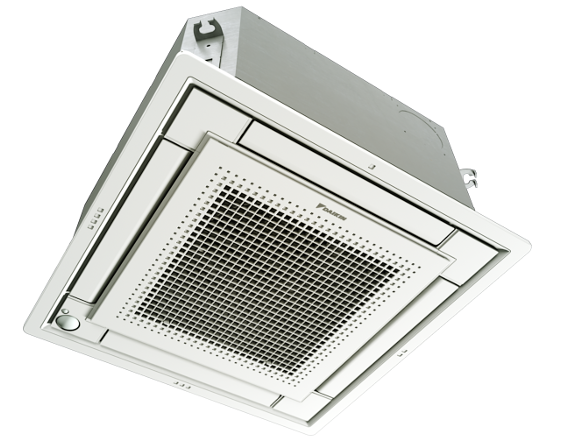

FFA60BVM / RZAC60E2VM Daikin Compact Cassette




$2,982.00 Incl GST
$2,710.91 Excl GST
In Stock

Calculate Shipping


Request Separate Shipping Quote
Best suited for large or bulky orders. After receiving your order, our team will contact you to arrange a custom shipping quote based on current freight market rates to your location. We work with multiple freight providers to find the best pricing and delivery option for your needs. Please note that final shipping costs will vary from the online shipping estimate.
Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.
Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Sydney Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.

System Names FFA25B-CE2V FFA35B-CE2V FFA50B-CE2V FFA60B-CE2V FFA71B-CE2V
Indoor Unit FFA25BVM FFA35BVM FFA50BVM FFA60BVM FFA71BVM
Outdoor Unit RZAC25E2VM RZAC35E2VM RZAC50E2VM RZAC60E2VM RZAC71E2VM
Cooling Capacity Rated/Min-Max (kW) 2.5 (1.2-3.0) 3.5 (1.3-4.0) 5.0 (1.5-6.0) 6.0 (1.5-7.0) 7.1 (1.5-7.6)
Heating Capacity Rated/Min-Max(kW) 3.2 (1.0-3.7) 4.2 (1.0-4.3) 6.0 (1.4-7.0) 7.1 (1.4-8.0) 8.0 (1.4-8.4)
Power Supply 1 Phase, 220-230V, 50/60Hz
Power Consumption (Cool/Heat) (kW) 0.54 / 0.75 0.88 / 1.09 1.11 / 1.55 1.50 / 1.90 2.00 / 2.25
EER / COP (kW/kW) 4.63 / 4.27 3.98 / 3.85 4.50 / 3.87 4.00 / 3.74 3.55 / 3.56
TCSPF Cooling Commercial Hot/Avg/Cold 6.05 / 5.85 / 6.10 5.69 / 5.66 / 5.98 6.17 / 6.15 / 6.49 5.90 / 5.98 / 6.36 5.34 / 5.44 / 5.83
TCSPF Cooling Residential Hot/Avg/Cold 5.57 / 4.67 / 4.59 5.24 / 4.59 / 4.64 5.74 / 5.14 / 5.20 5.47 / 4.96 / 5.11 4.96 / 4.56 / 4.73
HSPF Heating Commercial Hot/Avg/Cold 4.75 / 4.52 / 4.14 4.65 / 4.33 / 3.87 4.87 / 4.56 / 4.12 4.72 / 4.41 / 3.98 4.53 / 4.23 / 3.84
HSPF Heating Residential Hot/Avg/Cold 4.75 / 4.39 / 3.93 4.64 / 4.13 / 3.58 4.87 / 4.34 / 3.84 4.71 / 4.19 / 3.70 4.52 / 4.02 / 3.58
Indoor Decoration Panel Colour White
Indoor Airflow Rate (H/M/L) (l/s) 150 / 133 / 108 167 / 142 / 108 200 / 167 / 125 250 / 208 / 158 258 / 208 / 158
Indoor Sound Pressure Level (H/M/L) (dBA) 31 / 28.5 / 25 34 / 30.5 / 25 39 / 34 / 27 44 / 40 / 32 44.5 / 40 / 32
Indoor Sound Power Level (dBA) 48 51 56 60
Outdoor Unit Colour Ivory White
Compressor Type Hermatically Sealed Swing Type
Compressor Motor Output (kW) 0.8 1.3
R32 Refrigerant Amount/Charge (kg) 0.73 (Charged for 10m) 1.50 (Charged for 10m)
Outdoor Sound Pressure Level Cool/Heat (dBA) 46 / 47 48 / 48 49 / 52 53 / 55
Outdoor Sound Power Level (dBA) 59 61 62 64 67
Indoor Operating Range Cool/Heat (C) 14 to 23 / 10 to 30
Outdoor Operating Range Cool/Heat (C) -10 to 46 / -15 to 18
Pipe Sizes (Liquid/Gas) (mm) 6.4 / 9.5 6.4 / 12.7
Max. Interunit Piping Length (m) 20 (Equivalent Length 45) 30 (Equivalent Length 45)
Max. Installation Height Difference (m) 15 20
Heat Insulation Both Liquid and Gas Piping
Indoor Unit Dimensions (HxWxD) (mm) 260 x 575 x 575 (+63)
Indoor Decoration Panel Dimensions (HxWxD) (mm) 46 x 620 x 620
Outdoor Unit Dimension (HxWxD) (mm) 550 x 675 x 284 695 x 930 x 350
Indoor Unit Weight (kg) 16 17.5
Indoor Decoration Panel Weight (kg) 2.8
Outdoor Unit Weight (kg) 28 54

(FFA60B-CE2V)

System Names FFA25B-CE2V FFA35B-CE2V FFA50B-CE2V FFA60B-CE2V FFA71B-CE2V
Indoor Unit FFA25BVM FFA35BVM FFA50BVM FFA60BVM FFA71BVM
Outdoor Unit RZAC25E2VM RZAC35E2VM RZAC50E2VM RZAC60E2VM RZAC71E2VM
Cooling Capacity Rated/Min-Max (kW) 2.5 (1.2-3.0) 3.5 (1.3-4.0) 5.0 (1.5-6.0) 6.0 (1.5-7.0) 7.1 (1.5-7.6)
Heating Capacity Rated/Min-Max(kW) 3.2 (1.0-3.7) 4.2 (1.0-4.3) 6.0 (1.4-7.0) 7.1 (1.4-8.0) 8.0 (1.4-8.4)
Power Supply 1 Phase, 220-230V, 50/60Hz
Power Consumption (Cool/Heat) (kW) 0.54 / 0.75 0.88 / 1.09 1.11 / 1.55 1.50 / 1.90 2.00 / 2.25
EER / COP (kW/kW) 4.63 / 4.27 3.98 / 3.85 4.50 / 3.87 4.00 / 3.74 3.55 / 3.56
TCSPF Cooling Commercial Hot/Avg/Cold 6.05 / 5.85 / 6.10 5.69 / 5.66 / 5.98 6.17 / 6.15 / 6.49 5.90 / 5.98 / 6.36 5.34 / 5.44 / 5.83
TCSPF Cooling Residential Hot/Avg/Cold 5.57 / 4.67 / 4.59 5.24 / 4.59 / 4.64 5.74 / 5.14 / 5.20 5.47 / 4.96 / 5.11 4.96 / 4.56 / 4.73
HSPF Heating Commercial Hot/Avg/Cold 4.75 / 4.52 / 4.14 4.65 / 4.33 / 3.87 4.87 / 4.56 / 4.12 4.72 / 4.41 / 3.98 4.53 / 4.23 / 3.84
HSPF Heating Residential Hot/Avg/Cold 4.75 / 4.39 / 3.93 4.64 / 4.13 / 3.58 4.87 / 4.34 / 3.84 4.71 / 4.19 / 3.70 4.52 / 4.02 / 3.58
Indoor Decoration Panel Colour White
Indoor Airflow Rate (H/M/L) (l/s) 150 / 133 / 108 167 / 142 / 108 200 / 167 / 125 250 / 208 / 158 258 / 208 / 158
Indoor Sound Pressure Level (H/M/L) (dBA) 31 / 28.5 / 25 34 / 30.5 / 25 39 / 34 / 27 44 / 40 / 32 44.5 / 40 / 32
Indoor Sound Power Level (dBA) 48 51 56 60
Outdoor Unit Colour Ivory White
Compressor Type Hermatically Sealed Swing Type
Compressor Motor Output (kW) 0.8 1.3
R32 Refrigerant Amount/Charge (kg) 0.73 (Charged for 10m) 1.50 (Charged for 10m)
Outdoor Sound Pressure Level Cool/Heat (dBA) 46 / 47 48 / 48 49 / 52 53 / 55
Outdoor Sound Power Level (dBA) 59 61 62 64 67
Indoor Operating Range Cool/Heat (C) 14 to 23 / 10 to 30
Outdoor Operating Range Cool/Heat (C) -10 to 46 / -15 to 18
Pipe Sizes (Liquid/Gas) (mm) 6.4 / 9.5 6.4 / 12.7
Max. Interunit Piping Length (m) 20 (Equivalent Length 45) 30 (Equivalent Length 45)
Max. Installation Height Difference (m) 15 20
Heat Insulation Both Liquid and Gas Piping
Indoor Unit Dimensions (HxWxD) (mm) 260 x 575 x 575 (+63)
Indoor Decoration Panel Dimensions (HxWxD) (mm) 46 x 620 x 620
Outdoor Unit Dimension (HxWxD) (mm) 550 x 675 x 284 695 x 930 x 350
Indoor Unit Weight (kg) 16 17.5
Indoor Decoration Panel Weight (kg) 2.8
Outdoor Unit Weight (kg) 28 54
SKU FFA60B-CE2V
Brand Daikin
Shipping Weight 72.8000kg
Shipping Width 0.286m
Shipping Height 0.575m
Shipping Length 0.575m
Shipping Cubic 0.339286000m3
Unit Of Measure ea

Daikin offers a 5-year warranty for all of their Air Conditioners and Controllers.
