Daikin 4.5kW FXSQ40PAVE Multi Indoor Only Ceiling Mounted Built-in Air Conditioning Unit

Daikin-FXSQ40PAVE

Daikin 4.5kW FXSQ40PAVE Multi Indoor Only Ceiling Mounted Built-in Air Conditioning Unit

Daikin Indoor Multi Ceiling Mounted Ducted Unit




$2,248.00 Incl GST
$2,043.64 Excl GST
In Stock

Calculate Shipping


Request Separate Shipping Quote
Best suited for large or bulky orders. After receiving your order, our team will contact you to arrange a custom shipping quote based on current freight market rates to your location. We work with multiple freight providers to find the best pricing and delivery option for your needs. Please note that final shipping costs will vary from the online shipping estimate.
Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.
Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Sydney Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.

 *This is an Indoor Unit Only, not a complete system. An Outdoor Multi Unit is Required.

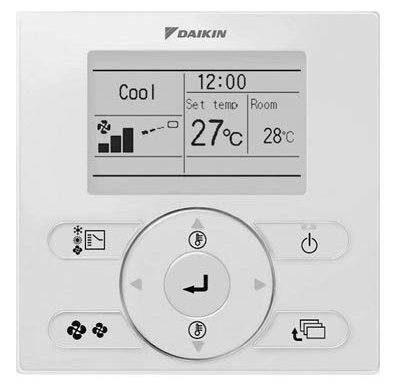

Daikin Ducted 4.5kW FXSQ40PAVE Ceiling Mounted Indoor Multi Unit - Includes BRC1E63 Wired Wall Controller

The FXSQ-PAVE series is designed to meet the construction challenges of modern commercial and medium density apartment development. Featuring industry leading low profile height of only 245mm for installation into tight ceiling space and Automatic Airflow Adjustment feature for simplifed on-site commissioning.

Key Features:

  • Installation Flexibility - With a height of only 245mm, installation is possible even in buildings with narrow ceiling space.
  • Design Flexibility - Using a DC Fan Motor, the external static pressure can be controlled within a rnage of 30 Pa to 150 Pa.
  • Easy Installation
  • Easy Maintenance
  • Standard DC Drain Pump
  • Comfort - Switchable airflow rate and auto airflow rate
  • Low Operation Sound Level

(FXSQ40PAVE)

Indoor Unit Name FXSQ20PAVE FXSQ25PAVE FXSQ32PAVE FXSQ40PAVE FXSQ50PAVE FXSQ63PAVE FXSQ80PAVE FXSQ100PAVE FXSQ125PAVE FXSQ140PAVE
Rated Cooling Capacity (kW) 2.2 2.8 3.6 4.5 5.6 7.1 9.0 11.2 14.0 16.0
Rated Heating Capacity (kW) 2.5 3.2 4.0 5.0 6.3 8.0 10.0 12.5 16.0 18.0
Power Consumption (Cool/Heat) (W) 58 / 53 66 / 61 101 / 96 75 / 70 106 / 101 126 / 121 151 / 146 206 / 201 222 / 217
Casing Galvanised Steel Plate
Air Flow Rate (H/M/L) (l/s) 150 / 125 / 108 158 / 133 / 116 250 / 208 / 175 283 / 242 / 192 350 / 292 / 242 383 / 325 / 267 533 / 450 / 375 617 / 525 / 433 650 / 558 / 467
Sound Level (H/M/L) dB(A) 33 / 30 / 28 34 / 32 / 30 36 / 33 / 30 34 / 32 / 29 36 / 32 / 29 37.5 / 34 / 30 39 / 35 / 32 42 / 38.5 / 35 43 / 40 / 36
Sound Power (H) dB(A) 61 62 64 62 64 65.5 67 70 71
Unit Dimensions (H x W x D) (mm) 245 x 550 x 800 245 x 700 x 800 245 x 1000 x 800 245 x 1400 x 800 245 x 1550 x 800
Unit Weight (kg) 25 27 35 64 65.5 67 70 71
Refrigerant R410A
Pipe Sizes (Liquid/Gas) (mm) 6.4 / 12.7 9.5 / 15.9
SKU FXSQ40PAVE
Brand Daikin
Shipping Weight 27.0000kg
Shipping Width 0.800m
Shipping Height 0.245m
Shipping Length 0.700m
Shipping Cubic 0.137200000m3
Unit Of Measure ea

Daikin offers a 5-year warranty on all of their Air Conditioners and Controllers.
