 *This is an Indoor Unit Only, not a complete system. An Outdoor Multi Unit is Required.

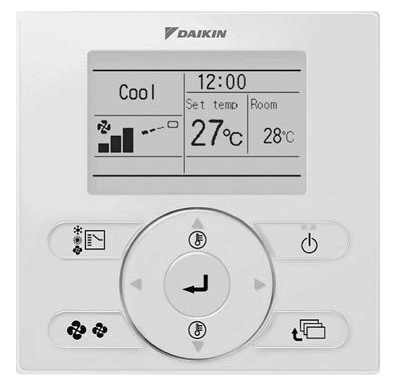

Daikin Ducted 28.0kW FXMQ250PV1A Ceiling Concealed Indoor Multi Unit - Includes BRC1E63 Wired Wall Controller

The FXMQ-PV1A series is Daikin’s new range of large capacity ducted VRV units. They feature a height of only 470mm, DC fan motor and ESP of up to 250Pa. Furthermore to facilitate installation they can also be separated into 2 sections for easier handling. The FXMQ-PV1A series is truly efficient yet powerful.

Key Features:

  • Each Model is fitted with a high efficiency DC fan motor with adjustable external static pressure to suit your duct design.
  • Automatic airflow adjustment feature allows the fan speed to adjust automatically to suit your duct design during comissioning, simplifying the process and saving time.
  • To facilitate installation, the FXMQ160P-250P models can be separated into 2 sections for convenient handling and easier installation through openings in the ceiling.

(FXMQ250PV1A)

Indoor Unit Name FXMQ160PV1A FXMQ180PV1A FXMQ200PV1A FXMQ250PV1A
Rated Cooling Capacity (kW) 18.0 20.0 22.4 28.0
Rated Heating Capacity (kW) 20.0 22.4 25.0 31.5
Power Consumption (Cool/Heat) (W) 0.65 / 0.65 0.64 / 0.64 0.81 / 0.81
Casing Galvanised Steel Plate
Air Flow Rate (HH / H / L) (L/s) 1120 / 955 / 790 1160 / 995 / 820 1200 / 1025 / 850 1400 / 1200 / 1000
Sound Level (HH / H / L) dB(A) 45 / 41.5 / 38 44 / 40.5 / 37 46 / 42.5 / 39
Sound Power (H) dB(A) 73 72 74
Unit Dimensions (H x W x D) (mm) 470 x 1133 x 919 470 x 1333 x 919
Unit Weight (kg) 70 79 74
Pipe Sizes (Liquid/Gas) (mm) 9.5 / 15.9 9.5 / 19.1 9.5 / 22.2
SKU FXMQ250PV1A
Brand Daikin
Shipping Weight 85.0000kg
Shipping Width 0.919m
Shipping Height 0.470m
Shipping Length 1.333m
Shipping Cubic 0.575763000m3
Unit Of Measure ea

Daikin offers a 5-year warranty on all of their Air Conditioners and Controllers.
