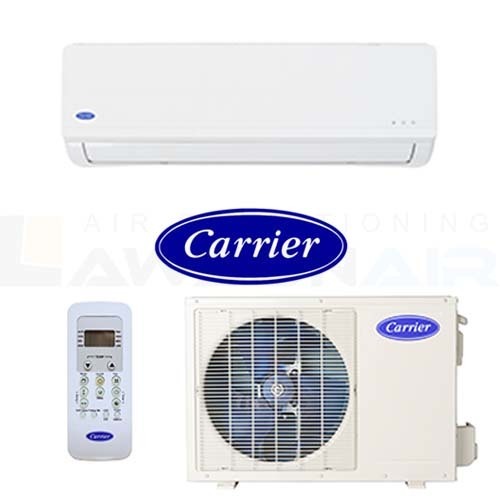

Carrier Aspire QHF080 8.0 kW Split-System

Indoor Aspire Series Split System

In Stock

Calculate Shipping

Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm.

The Carrier Aspire range of Inverter Hi-Walls offer DC Inverter technology balanced with efficency levels to give you a comfortable heating or air conditioning cooling solution.

• Cooling performance even at 48°C outdoor temperature and as low as -15°C for heating
• Customised air distribution: with three fan speeds
• Automatic error diagnosis
• Hidden display: light can be turned off by remote controller when unit is running
• Louver position memory: when starting the unit (after shutting down), the louvers will restore to the angle originally set by the user
• Silent mode: the indoor unit can operate at a lower noise level.  This occurs as the fan speed can shift lower, thereby reducing the sound of the indoor unit


  • Heating conditions: -15°C to 24°C (Suitable for low ambient regions)
  • New 8°C feature: In heating operation, the pre-set temperature of the Air Conditioner can be as low as 8°C. It adds to comfort in conditions where outside temperature is extremely cold. You leave it ON at this setting during the day, so that it is quicker to heat when you come home
  • Cooling conditions: -10°C to 48°C
  • Hidden display on the Indoor unit: The display can be turned on/off from the remote controller
  • Follow Me: With this function, the room temperature sensor built in the remote controller is activated. The Air Conditioner will then regulate the room temperature based on the temperature around the remote controller
  • Self-Cleaning function: Prevents mold formation in the Indoor unit
Indoor 42QHF080
Outdoor 38QHF080
Refrigerant Type   R410A
Power Supply (Volts - Phase - Hz)   220 - 240V, 1 Ph, 50 Hz
Cooling Capacity - Rated (Range) kW 8.00 (3.40 - 8.50)
Power Input - Rated (Range) kW 2.35 (0.80 - 2.70)
Efficiency - Rated (Range) EER 3.40 (3.10 - 4.40)
Operating Current (Range) A 10.40 (3.60 - 12.00)
Heating Capacity - Rated (Range) kW 9.00 (3.10 - 9.90)
Power Input - Rated (Range) kW 2.50 (0.80 - 3.10)
Efficiency - Rated (Range) COP 3.60 (3.20 - 4.80)
Operating Current (Range) A 11.10 (3.60 - 13.80)
Indoor Unit Dimensions (WxDxH) mm 1260 x 283 x 363
Net Weight kg 19
Cooling Airfow (H/M/L) L/s 372 / 300 / 256
Moisture Removal L/Hr 2.4
Cooling - (Sound Pressure) (H/M/L) - 1m dBA(@spl) 51 / 45 / 39
Cooling - (Sound Power) (H) dBA(@spl) 62
Heating - (Sound Pressure) (H/M/L) - 1m dBA(@spl) 51 / 45 / 39
Heating - (Sound Power) (H) dBA(@spl) 62
Outdoor Dimensions (WxDxH) mm 900 x 315 x 860
Net Weight kg 60
Compressor Type   twin rotary
Fan Motor Output W 72
Cooling (Sound Pressure) (H) - 1m dBA(@spl) 61
Cooling - (Sound Power) (H)   72
Cooling Usable Temperature Range °C -10 to 48
Heating Usable Temperature Range °C -15 to 24
Pipe Size Liquid Line Ø / Gas Line Ø mm 9.52 / 15.88
Coupler Style   flaring
Drain (Inside Diameter) Ø mm 16
Minimum Length mm 3
Maximum Length mm 25
Chargeless Length mm 5
Additional Refrigerant gm / m 30
Maximum Height Difference (Above / Below) mm 10
Brand Carrier
Shipping Weight 79.0000kg
Shipping Cubic 0.373249m3
