Best Prices Braemar Austral-Air ASHV35D1S-SET 3.5kW Air Conditioner Low Cost Installation Brisbane

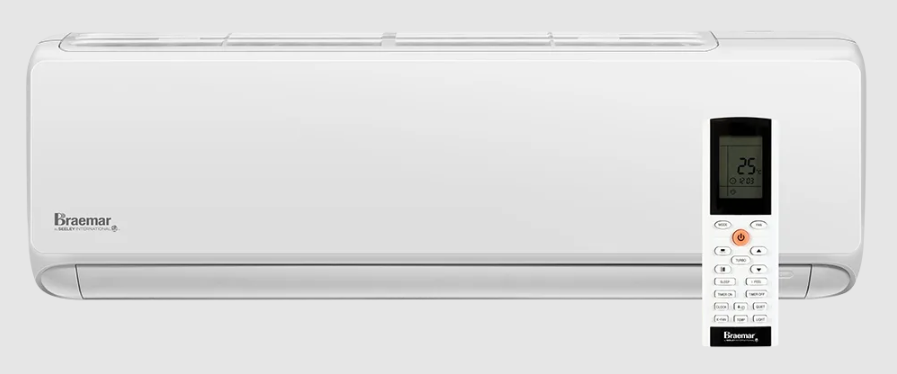

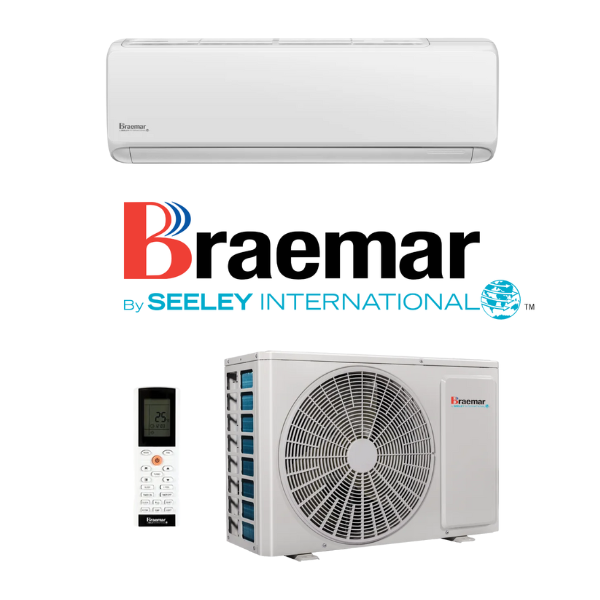

Braemar Austral-Air ASHV35D1S-SET 3.5kW Wall Split Air Conditioning System

Calculate Shipping

Request Separate Shipping Quote
Best suited for large or bulky orders. After receiving your order, our team will contact you to arrange a custom shipping quote based on current freight market rates to your location. We work with multiple freight providers to find the best pricing and delivery option for your needs. Please note that final shipping costs will vary from the online shipping estimate.

Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.

Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Sydney Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.

System Name	ASHV25D1S-SET	ASHV35D1S-SET	ASHV50D1S-SET	ASHV70D1S-SET	ASHV80D1S-SET
Indoor Unit	ASHV25D1S	ASHV35D1S	ASHV50D1S	ASHV70D1S	ASHV80D1S

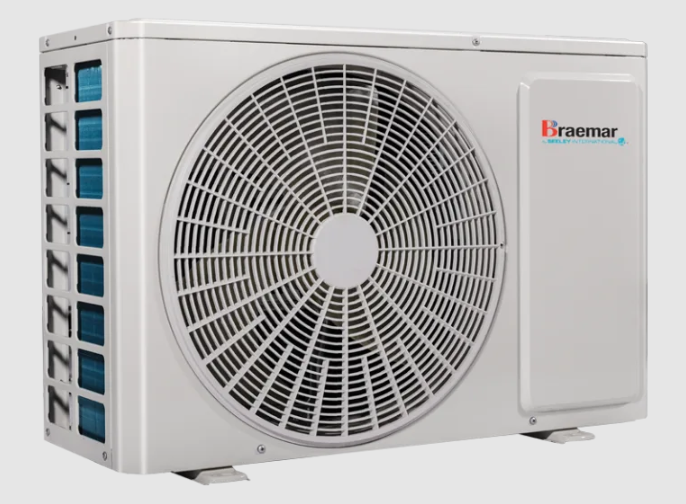

Outdoor Unit	ACHV25D1S	ACHV35D1S	ACHV50D1S	ACHV70D1S	ACHV80D1S
Cooling Capacity (kW)	2.7	3.5	5.2	7.1	8.2
Heating Capacity (kW)	3.0	3.8	5.8	7.8	9.0
Cooling Range (kW)	0.7 - 3.4	0.5 - 4.5	0.8 - 6.3	2.5 - 8.2	3.3 - 9.4
Heating Range (kW)	0.8 - 3.8	0.9 - 4.8	1.0 - 6.5	2.0 - 8.6	3.0 - 10.1
ZERL. Star Rating Cool (Hot/Avg/Cold)	3.5 / 3.0 / 3.5	4.5 / 4.0 / 4.0	3.5 / 3.0 / 3.5	5.5 / 4.5 / 4.5	4.0 / 3.5 / 3.5
ZERL. Star Rating Heat (Hot/Avg/Cold)	3.0 / 2.0 / 1.5	3.0 / 2.5 / 2.0		3.5 / 2.5 / 2.0
AEER/ACOP (kW)	3.73 / 3.88	3.84 / 3.89	3.36 / 3.65	3.66 / 3.86	3.27 / 3.37
Airflow l/s(m3/h)	153 (550)	183 (660)	278 (1000)	375 (1350)	389 (1400)
Power Supply	Single Phase, 50Hz, 230V
Nominal Power Input Cool/Heat (kW)	0.72 / 0.77	0.91 / 0.97	1.53 / 1.57	1.92 / 2.00	2.49 / 2.65
Minimum Circuit Breaker Outdoor (A)	10		16	20
Maximum Current Input (A)	7.2	7.4	10.0	12.5	15.0
Sound Pressure Level IDU/ODU (dBA)	40 / 51	43 / 52	47 / 56	53 / 60	53 / 61
Indoor Unit Dimensions (HxWxD) (mm)	260 x 783 x 185	275 x 835 x 200	333 x 943 x 246	333 x 1078 x 246
Outdoor Unit Dimensions (HxWxD) (mm)	555 x 732 x 330			660 x 958 x 402
Outdoor Unit Weight (kg)	24.5	27.5	31.5	42.0	45.5
Refrigerant (Chargeless Length/Additional Charge)	R32, 5m, 16g/m
Pipe Sizes (Liquid/Gas) (mm)	6.35 / 9.52		6.35 / 12.70
Piping: Max Height (m)	10			25
Piping: Max Length (m)	15	20	25	40
Ambient Temperature Range (Cool/Heat) (C)	-15 to 52 / -15 to 24

(ASHV35D1S-SET)

System Name	ASHV25D1S-SET	ASHV35D1S-SET	ASHV50D1S-SET	ASHV70D1S-SET	ASHV80D1S-SET
Indoor Unit	ASHV25D1S	ASHV35D1S	ASHV50D1S	ASHV70D1S	ASHV80D1S
Outdoor Unit	ACHV25D1S	ACHV35D1S	ACHV50D1S	ACHV70D1S	ACHV80D1S
Cooling Capacity (kW)	2.7	3.5	5.2	7.1	8.2
Heating Capacity (kW)	3.0	3.8	5.8	7.8	9.0
Cooling Range (kW)	0.7 - 3.4	0.5 - 4.5	0.8 - 6.3	2.5 - 8.2	3.3 - 9.4
Heating Range (kW)	0.8 - 3.8	0.9 - 4.8	1.0 - 6.5	2.0 - 8.6	3.0 - 10.1
ZERL. Star Rating Cool (Hot/Avg/Cold)	3.5 / 3.0 / 3.5	4.5 / 4.0 / 4.0	3.5 / 3.0 / 3.5	5.5 / 4.5 / 4.5	4.0 / 3.5 / 3.5
ZERL. Star Rating Heat (Hot/Avg/Cold)	3.0 / 2.0 / 1.5	3.0 / 2.5 / 2.0		3.5 / 2.5 / 2.0
AEER/ACOP (kW)	3.73 / 3.88	3.84 / 3.89	3.36 / 3.65	3.66 / 3.86	3.27 / 3.37
Airflow l/s(m3/h)	153 (550)	183 (660)	278 (1000)	375 (1350)	389 (1400)
Power Supply	Single Phase, 50Hz, 230V
Nominal Power Input Cool/Heat (kW)	0.72 / 0.77	0.91 / 0.97	1.53 / 1.57	1.92 / 2.00	2.49 / 2.65
Minimum Circuit Breaker Outdoor (A)	10		16	20
Maximum Current Input (A)	7.2	7.4	10.0	12.5	15.0
Sound Pressure Level IDU/ODU (dBA)	40 / 51	43 / 52	47 / 56	53 / 60	53 / 61
Indoor Unit Dimensions (HxWxD) (mm)	260 x 783 x 185	275 x 835 x 200	333 x 943 x 246	333 x 1078 x 246
Outdoor Unit Dimensions (HxWxD) (mm)	555 x 732 x 330			660 x 958 x 402
Outdoor Unit Weight (kg)	24.5	27.5	31.5	42.0	45.5
Refrigerant (Chargeless Length/Additional Charge)	R32, 5m, 16g/m
Pipe Sizes (Liquid/Gas) (mm)	6.35 / 9.52		6.35 / 12.70
Piping: Max Height (m)	10			25
Piping: Max Length (m)	15	20	25	40
Ambient Temperature Range (Cool/Heat) (C)	-15 to 52 / -15 to 24

SKU	ASHV35D1S-SET
Brand	Braemar
Shipping Weight	36.7000kg
Shipping Width	0.388m
Shipping Height	0.555m
Shipping Length	0.835m
Shipping Cubic	0.179991000m3
Unit Of Measure	ea
