Toshiba Super Digital RAV-SM1604UT-E / RAV-SP1604AT8-A1 14.0kW Cassette

RAV-SM1604UTP-E/RAV-SP1604AT8-A Cassette Air Conditioner




$4,566.00 Incl GST
$4,150.91 Excl GST
In Stock


Calculate Shipping



Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm.

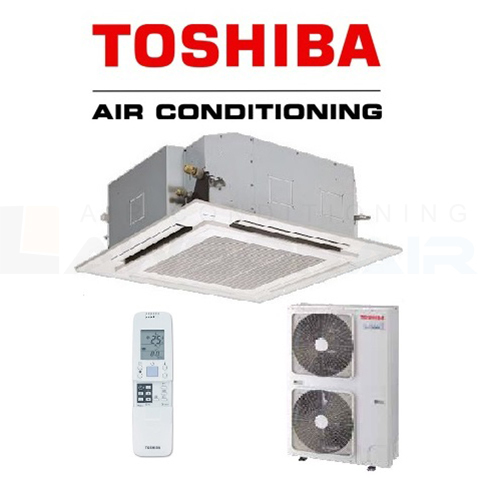

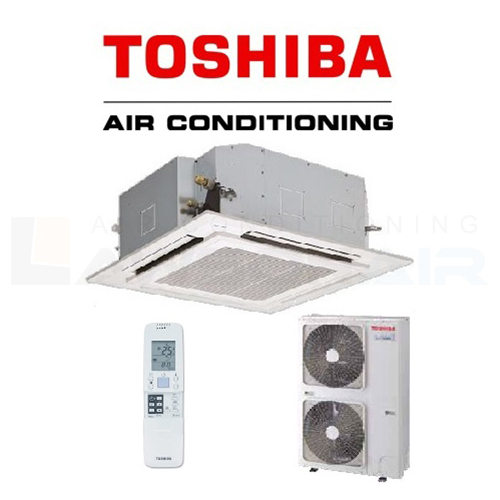

Toshiba Super Digital RAV-SM1604UTP-E 14.0kW Cassette - Includes Outdoor Unit RAV-SP1604AT8-A1

The RAV-SM1604UTP-E is Toshiba's 14.0W In-ceiling Cassette Unit. This Inverter System has a cooling capacity ranging from 2.6kW to 14.0kW and a heating capacity ranging from 2.4kW to 16.5kW.

(RAV-SM1604UTP-E)

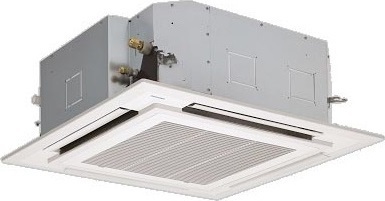

Indoor RAV-SM1604UTP-E
Outdoor RAV-SP1604AT8-A1
Refrigerant Type   R410A
Power Suppply Volts / Phase / Hz 380-415 / 3 / 50
Cooling Capacity - Rated kW 14.0
Capacity - Range kW 2.6 - 16.0
Efficiency (Rated) EER 3.12
Power Input (min - rated - max) kW 0.66 - 4.49 - 5.70
Operating Current (rated) A 7.55
Heating Capacity - Rated kW 16.0
Capacity - Range (min - max) kW 2.4 - 19.0
Efficiency (rated) COP 3.72
Power Input (min - rated - max) kW 0.53 - 4.30 - 6.51
Operating Current (rated) A 7.55
Indoor Unit Dimensions (HxWxD) mm 319 x 840 x 840
Net Weight kg 24
Airflow Volume (H/L) L/s 592
Fan Motor Output W 72
Sound pressure (H/M/L) - 1m dBA 45 / 36
Sound Power (H/M/L) dBA 60 / 51
Outdoor Unit Dimensions (HxWxD) mm 1340 x 900 x 320
Net Weight kg 95
Compressor Type   DC Twin Rotary
Fan Motor Output W 100 + 100
Cooling Operating Noise (Sound Pressure) (H) - 1m dBA (@spl) 51
Cooling Operating Noise (Sound Power) (H) dBA (@swl) 68
Heating Operating Noise (Sound Pressure) (H) -1m dBA (@spl) 53
Heating Operating Noise (Sound Power) (H) dBA (@swl) 70
Cooling Usable Temperature Range °CDB -15 to 46
Heating Usable Temperature Range °CWB -20 to 15
Pipe Size Liquid Line Ø mm 9.5
Gas Line Ø mm 15.9
Coupler Style   Flaring
Drain (Inside Diameter) Ø mm VP25
Maximum ength m 75
Chargeless Length m 30
Maximum Height Difference m 30
SKU RAV-SM1604UTP-E
Brand Toshiba
Shipping Weight 119.0000kg
Shipping Cubic 0.611006000m3
