Mitsubishi Heavy (MHI) Avanti 2.0kW DXK06ZSA-W-Set Split Air Conditioning System
DXK06ZSA-W / DXC06ZSA-W Mitsubishi Heavy (MHI) Split
$806.36 Excl GST

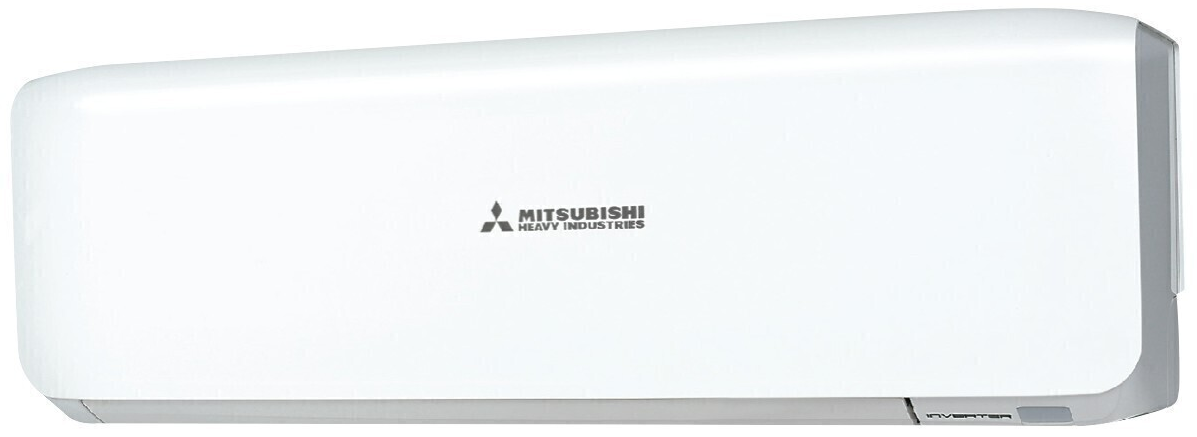

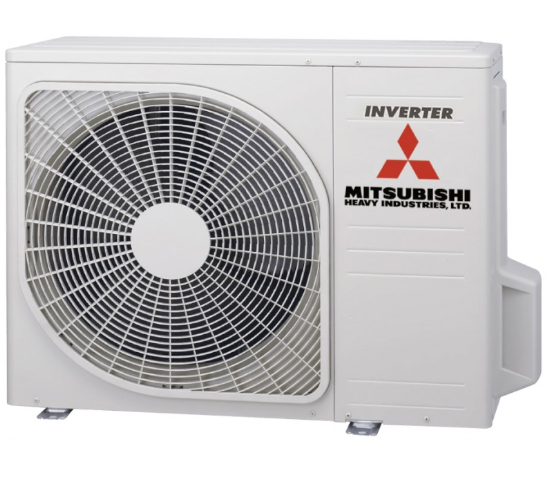

Mitsubishi Heavy Industries DXK06ZSA-W Avanti 2.0kW Reverse Cycle Split System - Includes Outdoor Unit DXC06ZSA-W
With a 5 star energy rating and all the advanced features and functions that the Avanti?? series is known for, the 2.0kW Avanti?? is ideal for smaller spaces such as a single bedroom, guest bedroom, kid's room or a home office.
Features:
- Modern and stylish design
- 3D Auto airflow for effective and even air distribution
- Allergen clear system to capture and eliminate allergens
- Energy efficient R32 refrigerant

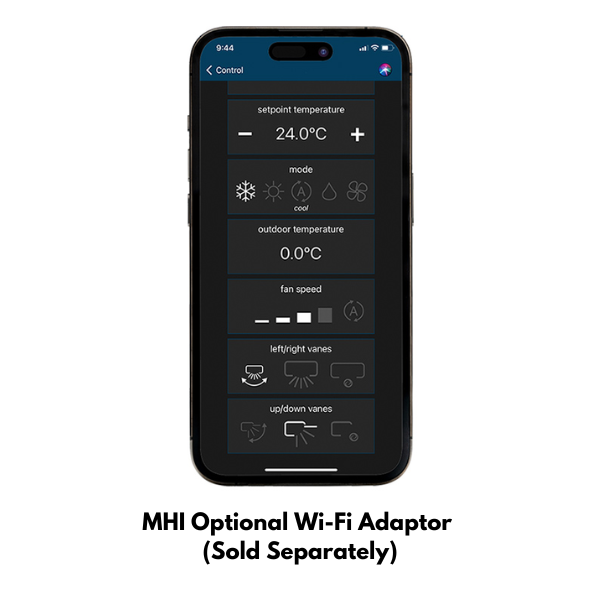

- Optional Wi-Fi control
(DXK06ZSA-W-Set)
System Name | DXK06ZSA-W-SET | DXK09ZSA-W-SET | DXK12ZSA-W-SET | DXK18ZSA-W-SET | SRK10YSA-W-SET | SRK13YSA-W-SET | SRK18YSA-W-SET |
---|---|---|---|---|---|---|---|
Indoor Unit | DXK06ZSA-W | DXK09ZSA-W | DXK12ZSA-W | DXK18ZSA-W | SRK10YSA-W | SRK13YSA-W | SRK18YSA-W |
Outdoor Unit | DXC06ZSA-W | DXC09ZSA-W | DXC12ZSA-W | DXC18ZSA-W | SRC10YSA-W | SRC13YSA-W | SRC18YSA-W |
Power Supply | 1 Phase, 220 ~ 240V, 50Hz | ||||||
Cooling Capacity (kW) | 2.0 | 2.5 | 3.5 | 5.0 | 2.5 | 3.5 | 5.0 |
Heating Capacity (kW) | 2.7 | 3.2 | 3.7 | 5.8 | - | ||
EER/COP | 4.88 / 4.82 | 4.90 / 4.92 | 4.27 / 4.57 | 3.60 / 3.89 | 4.90 / - | 4.27 / - | 3.60 / - |
Outdoor Sound Power dB(A) | 56 | 58 | 62 | 61 | 58 | 62 | 61 |
Refrigerant Type/Amount (kg) | R32 / 0.58 | R32 / 0.78 | R32 / 1.05 | R32 / 0.75 | R32 / 1.05 | ||
Max Pipe Length (m) | 20 | 25 | 20 | 25 | |||
Max Level Difference (m) | I.D.U Higher 10 / O.D.U Higher 10 | I.D.U Higher 15 / O.D.U Higher 15 | I.D.U Higher 10 / O.D.U Higher 10 | I.D.U Higher 15 / O.D.U Higher 15 | |||
Indoor Dimensions (HxWxD) (mm) | 290 x 870 x 230 | ||||||
Outdoor Dimensions (HxWxD) (mm) | 540 x 780(+62) x 290 | 640 x 800(+71) x 290 | 540 x 780(+62) x 290 | 640 x 800(+71) x 290 | |||
Indoor Weight (kg) | 9.5 | 10 | |||||
Outdoor Weight (kg) | 33 | 36 | 43.5 | 33.5 | 40 | ||
Pipe Sizes (mm) (Liquid/Gas) | 6.35 / 9.52 | 6.35 / 12.7 | 6.35 / 9.52 |
SKU | DXK06ZSA-W-Set |
Brand | Mitsubishi Heavy Industries (MHI) |
Shipping Weight | 42.5000kg |
Shipping Cubic | 0.189886000m3 |
Unit Of Measure | ea |
Warranty
Mitsubishi Heavy Industries offers up to a 5-year parts and labour warranty for all of their Air Conditioners. Note your product might not be eligable for the full 5-year warranty. Refer to their terms and conditions.
