Mitsubishi Heavy (MHI) 7.1kW SRK24YRA-W-Set Split Cooling Only Air Conditioning System
SRK24YRA-W / SRC24YRA-W Mitsubishi Heavy (MHI) Split
$1,628.17 Excl GST

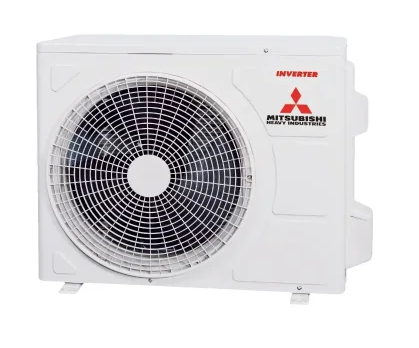

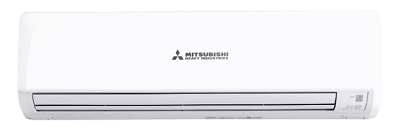

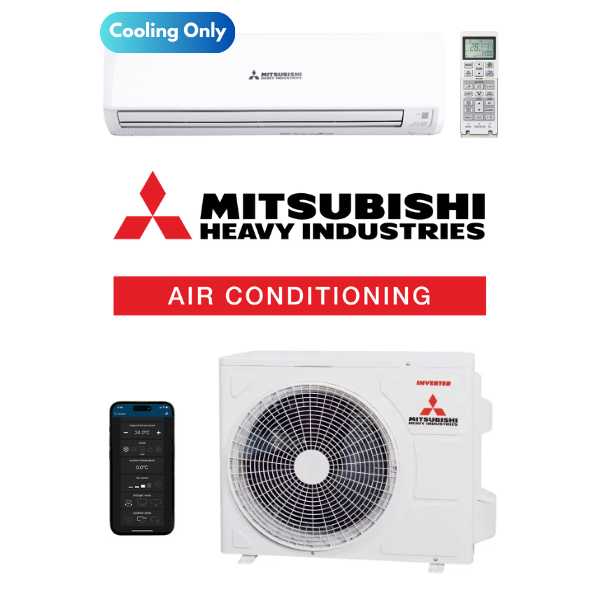

Mitsubishi Heavy Industries Bronte Series SRK24YRA-W 7.1kW Cooling Only Split System - Inlcudes Outdoor Unit SRC24YRA-W
Ideal for today's large open plan living spaces.
Key Features:
- Cool only model
- Long reach quiet airflow through Jet Air technology
- Pure, clean air with Clean Air Technology
- Energy-efficient R32 refrigerant

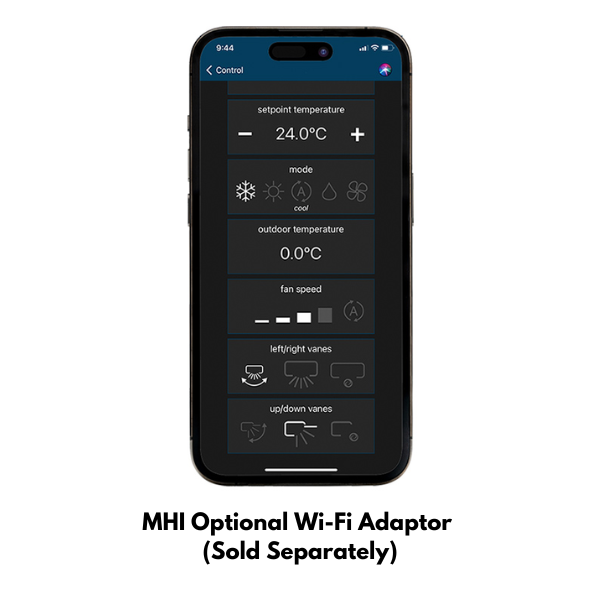

- Optional Wi-Fi control
(SRK24YRA-W-Set)
System Name | DXK21ZRA-W-SET | DXK24ZRA-W-SET | SRK24YRA-W-SET | DXK28ZRA-W-SET | DXK33ZRA-W-SET | SRK100AVNAWZR | SRK100AVSAWZR | |
---|---|---|---|---|---|---|---|---|
Indoor Unit | DXK21ZRA-W | DXK24ZRA-W | SRK24YRA-W | DXK28ZRA-W | DXK33ZRA-W | SRK100ZR-W | SRK100ZR-W | |
Outdoor Unit | DXC21ZRA-W | DXC24ZRA-W | SRC24YRA-W | DXC28ZRA-W | DXC33ZRA-W | FDCA100VNA-W | FDCA100VSA-W | |
Power Supply | 1 Phase, 240V, 50Hz | 3 Phase, 380 ~ 415V, 50Hz | ||||||
Cooling Capacity (kW) | 6.3 | 7.1 | 7.1 | 8.0 | 9.5 | 10.0 | 10.0 | |
Heating Capacity (kW) | 7.1 | 8.0 | - | 9.0 | 10.3 | 11.2 | 11.2 | |
EER/COP | 3.99 / 4.44 | 3.86 / 3.96 | 3.86 / - | 3.60 / 3.75 | 3.71 / 3.90 | 3.13 / 3.68 | 3.13 / 3.68 | |
Outdoor Sound Power dB(A) | 64 | 65 | 68 | 69 | ||||
Refrigerant Type/Amount (kg) | R32 / 1.25 | R32 / 1.6 | R32 / 2.0 | R32 / 3.3 | ||||
Max Pipe Length (m) | 30 | 50 | ||||||
Max Level Difference (m) | I.D.U Higher 20 / O.D.U Higher 20 | I.D.U Higher 15 / O.D.U Higher 50 | ||||||
Indoor Dimensions (HxWxD) (mm) | 339 x 1197 x 262 | |||||||
Outdoor Dimensions (HxWxD) (mm) | 640 x 800(+71) x 290 | 750 x 880(+88) x 340 | 845 x 970(+89) x 370 | |||||
Indoor Weight (kg) | 15.5 | 16.5 | ||||||
Outdoor Weight (kg) | 45 | 58 | 70.5 | 77 | 78 | |||
Pipe Sizes (mm) (Liquid/Gas) | 6.35 / 12.7 | 6.35 / 15.88 | 9.52 / 15.88 |
SKU | SRK24YRA-W-Set |
Brand | Mitsubishi Heavy Industries (MHI) |
Shipping Weight | 73.5000kg |
Shipping Cubic | 0.353155000m3 |
Unit Of Measure | ea |
Warranty
Mitsubishi Heavy Industries offers up to a 5-year parts and labour warranty for all of their Air Conditioners. Note your product might not be eligible for the full 5-year warranty. Refer to their terms and conditions.
