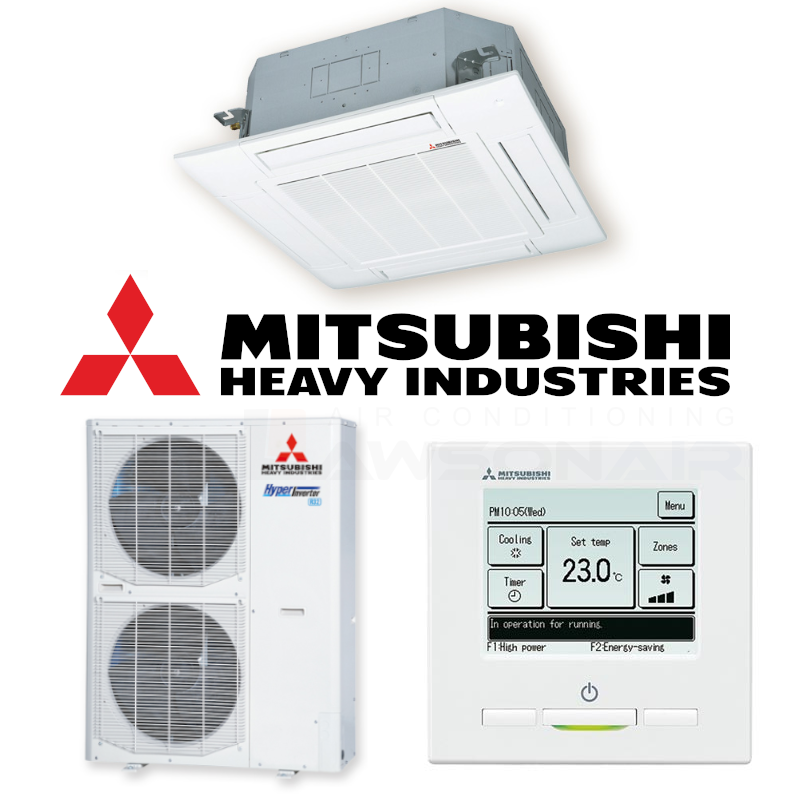

Mitsubishi Heavy Industries FDT140AVSXWVH-RC-EXZ3A 14.0 kW Ceiling Cassette System [Colour: Black]
$5,166.36 Excl GST
.jpg)
Mitsubishi Heavy Industries FDT140AVSXVG??14.0 kW Three Phase Ceiling Cassette System
Due to the unique design of the DC fan motors the MHI ceiling cassettes are some of the slimmest on the market, allowing for ease of installation. A versatile solution for a wide variety of commercial spaces, such as fitness centres, retail shops, small to medium offices, cafes, restaurants and more, the single and three-phase models range in capacity from 2.5kW to 14kW.
(FDT140AVSXWVH-RC-EXZ3A)
| Set | FDT140AVSXVG | ||

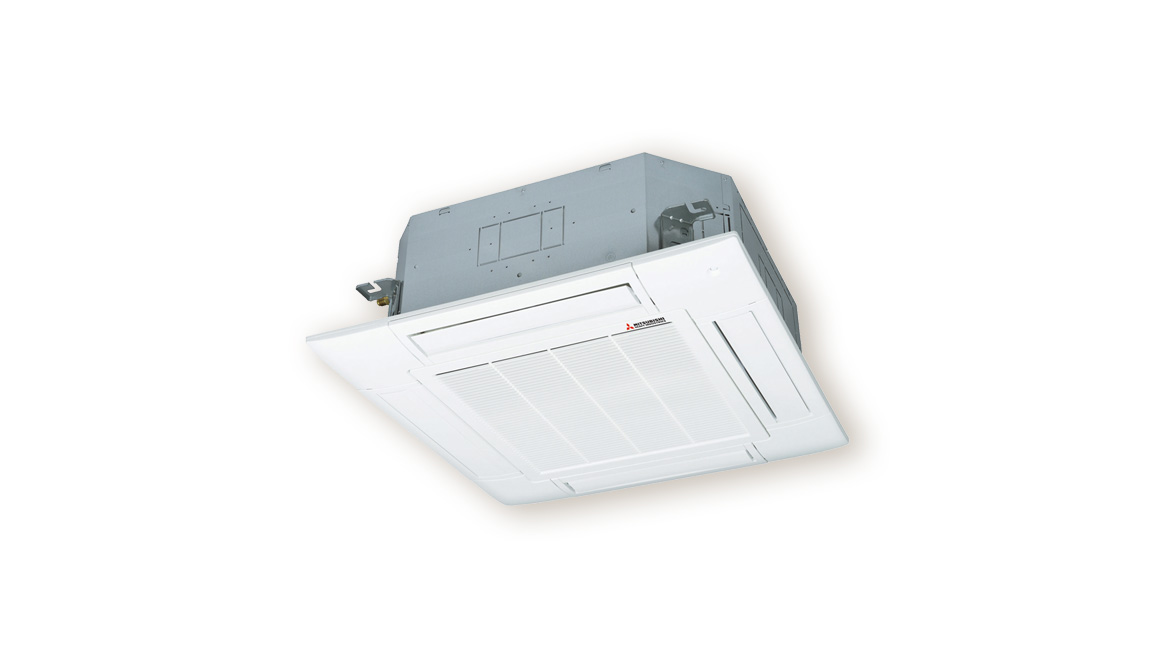

| Indoor | FDT140VG | ||

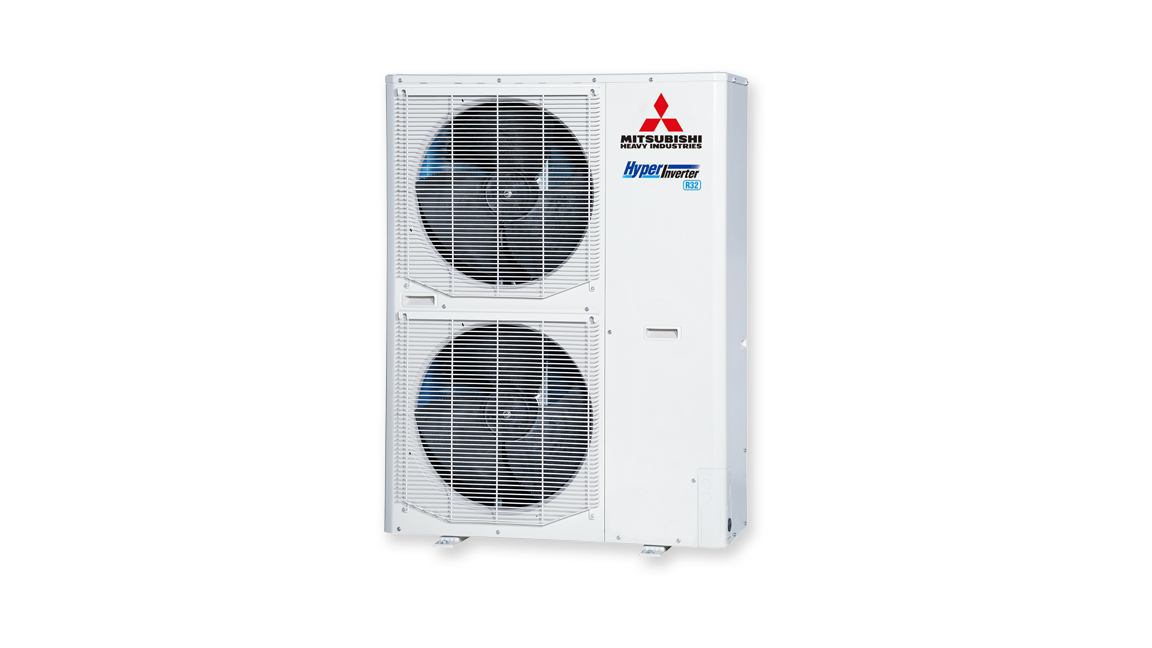

| Outdoor | FDCA140VSX | ||
| Power Supply | 3 Phase 480V 50Hz | ||
| Capacity | Cooling T1 | kW | 14.0 |
| Heating H1 | 16.0 | ||
| External dimensions (HxWxD) | Indoor | mm | 298 x 840 x 840 |
| Panel | 35 x 950 x 950 | ||
| Outdoor | 1300 x 970 x 370 | ||
| Net weight | Indoor | kg | 27 |
| Panel | 5.5 | ||
| Outdoor | 105 | ||
| Refrigerant Piping | Liquid Line | mm | Ø9.52 |
| Gas Line | Ø15.88 | ||
| Connection Method | Flare Connection | ||
| Refrigerant R410A | Quantity | kg | 4.5 |
| Pre charged to pipe length | m | 30 | |
| Maximum pipe length | m | 100 | |
| SKU | FDT140AVSXWVH-RC-EXZ3A |
| Brand | Mitsubishi Heavy Industries (MHI) |
| Shipping Weight | 129.0000kg |
Warranty
Mitsubishi Heavy Industries Air-Contioners offers up to a 5-year parts and labour warranty for all of their air conditioners. Note your product might not be eligable for the full 5-year warranty. Refer to their terms and conditions.
