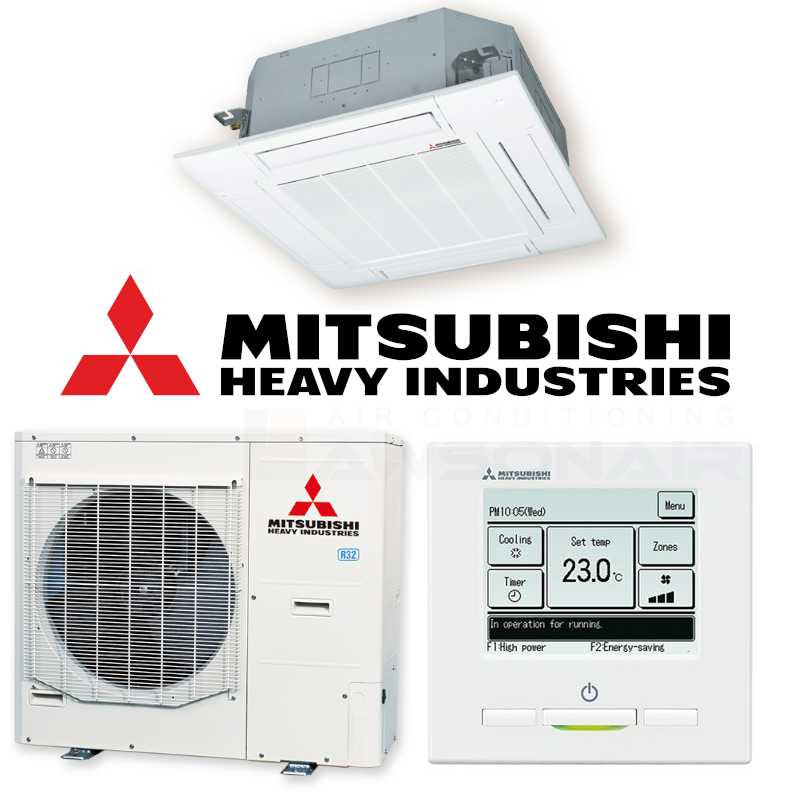

Mitsubishi Heavy Industries FDT100AVNAWVH-RC-EXZ3A 10.0 kW Ceiling Cassette System [Colour: Black]
$3,768.18 Excl GST
.jpg)
Mitsubishi Heavy Industries FDT100AVNVG??10.0 kW Ceiling Cassette System??
Due to the unique design of the DC fan motors the MHI ceiling cassettes are some of the slimmest on the market, allowing for ease of installation. A versatile solution for a wide variety of commercial spaces, such as fitness centres, retail shops, small to medium offices, cafes, restaurants and more, the single and three-phase models range in capacity from 2.5kW to 14kW.
(FDT100AVNAWVH-RC-EXZ3A)
| Set | FDT100AVNVG | ||
| Indoor | FDT100VG | ||

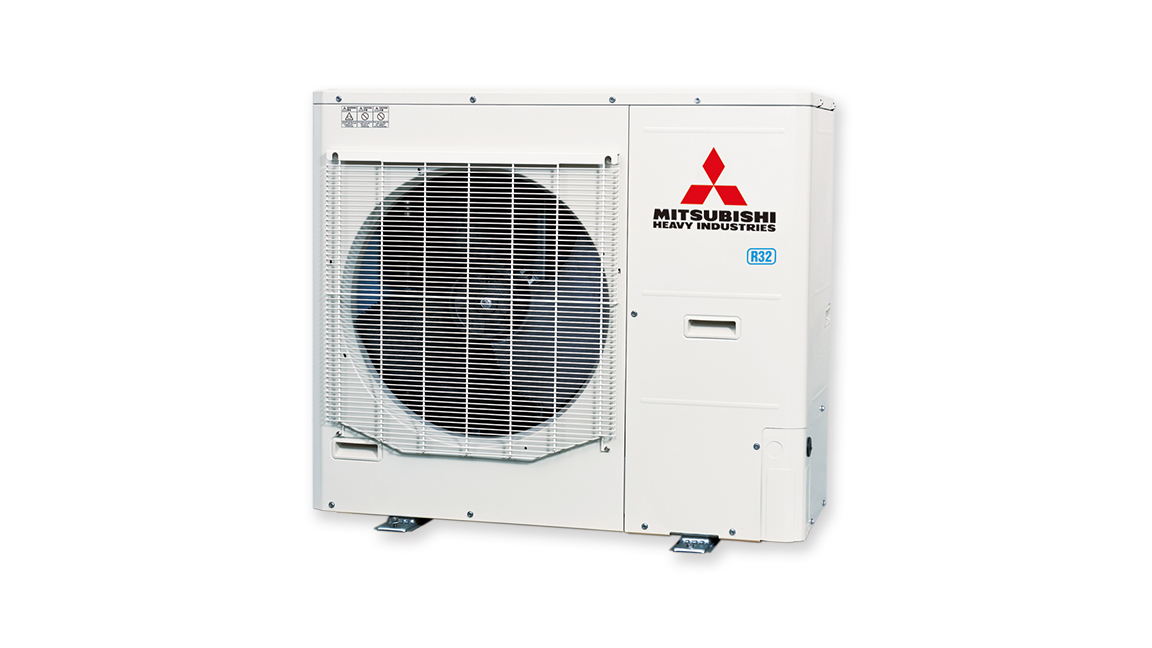

| Outdoor | FDCA100VN | ||
| Power Supply | 1 Phase 240V 50Hz | ||
| Capacity | Cooling T1 | kW | 10.0 (4.0 - 11.2) |
| Heating H1 | 11.2 (4.0 - 12.5) | ||
| Input | Cooling T1 | kW | 2.76 |
| Heating H1 | 2.74 | ||
| Max Power Consumption | kW | 6.40 | |
| EER | Cooling T1 | 3.62 | |
| COP | Heating H1 | 4.09 | |
| Sound Power Level (JIS C9612) | Outdoor | dB(A) | 70 |
| Sound Pressure Level (JIS C9612) | Indoor (P-Hi/Hi/Me/Lo) | dB(A) | 48 / 39 / 37 / 31 |
| Outdoor | 49 | ||
| Airflow | Indoor (P-Hi/Hi/Me/Lo) | l/s | 616 / 433 / 383 / 283 |
| External dimensions (HxWxD) | Indoor | mm | 298 x 840 x 840 |
| Panel | 35 x 950 x 950 | ||
| Outdoor | 845 x 970 x 370 | ||
| Net weight | Indoor | kg | 25 |
| Panel | 5 | ||
| Outdoor | 81 | ||
| Refrigerant Piping | Liquid Line | mm | Ø9.52 |
| Gas Line | Ø15.88 | ||
| Connection Method | Flare Connection | ||
| Refrigerant R410A | Quantity | kg | 3.8 |
| Pre charged to pipe length | m | 30 | |
| Maximum pipe length | m | 50 | |
| SKU | FDT100AVNAWVH-RC-EXZ3A |
| Brand | Mitsubishi Heavy Industries (MHI) |
| Shipping Weight | 107.0000kg |
Warranty
Mitsubishi Heavy Industries Air-Contioners offers up to a 5-year parts and labour warranty for all of their air conditioners. Note your product might not be eligable for the full 5-year warranty. Refer to their terms and conditions.
