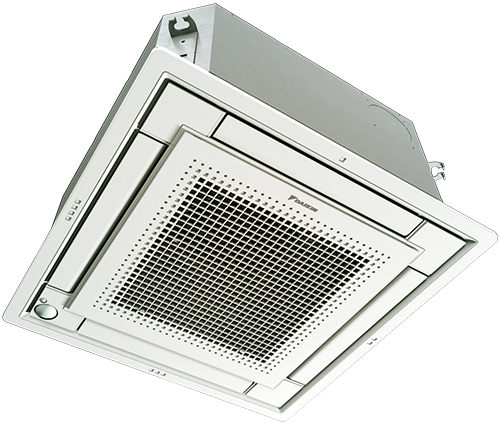

Daikin FFQ60C2 5.7kW Compact Cassette
Compact Cassette Air Conditioner
$2,651.00 Incl GST
$2,410.00 Excl GST
Sold Out
$2,410.00 Excl GST

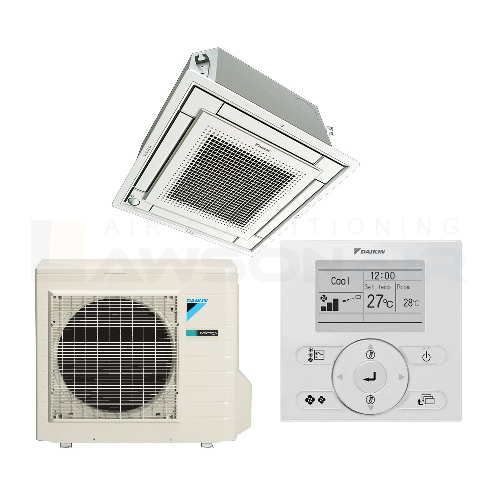

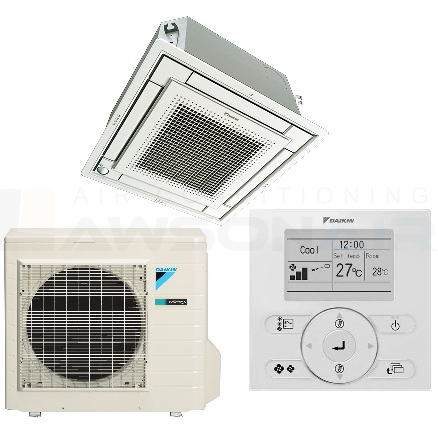

Daikin FFQ60C2 5.7kW Compact Cassette - Includes BRC1E63 Wired Controller
Daikin 5.7kW In-ceiling Cassette Unit. This Inverter System has a cooling capacity ranging from 2.2kW to 6.7kW and a heating capacity from 1.7kW to 8.0kW.
(FFQ60C2)
Indoor Unit | FFQ60C2VEB | ||
Outdoor Unit | RXS60F4V1B | ||
Power Supply (Ø / V / Hz) | 1 / 220 - 240 / 50 | ||
Cooling Capacity (Rated / Range) | 5.7 (2.2 - 6.7) | ||
Heating Capacity (Rated / Range) | 7.0 (1.7 - 8.0) | ||
EER / COP | 3.15 / 3.465 | ||
AEER / ACOP | 3.11 / 3.43 | ||
INDOOR UNIT | |||
Dimensions (HxWxD) | mm | 260 x 575 x 575 (+63) | |
Coil | Type | Cross Fin Coil (Multi Slit Fins and Hi-XA Tubes) | |
Rows / Stages / Fin Pitch | 3 / 16 / 1.2 | ||
Face Area | m² | 0.3 | |
Fan | Type | Turbo Fan | |
Motor Output | W | 50 | |
Fan Speed | 3 Speeds | ||
Air flow rate (H/M/L) | L/s | 242 / 208 / 158 | |
Sound Pressure (H/M/L) | dBA | 43 / 40 / 32 | |
Sound Power (H) | dBA | 60 | |
Weight | Kg | 17.5 | |
Piping | Liquid | mm | Ø6.35 |
Gas | mm | Ø12.7 (Flare) | |
Drain | mm | VP 20 (Ext Ø26, Int Ø20) | |

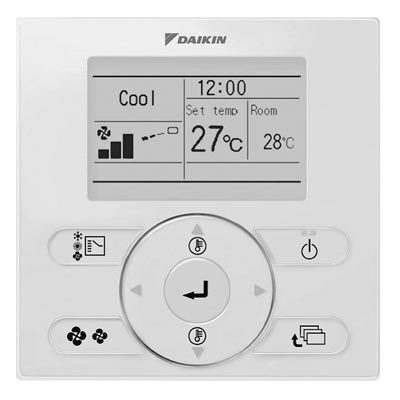

Remote | Wired (Standard) | BRC1E62 | |
Wireless (Option) | BRC7F530W | ||
Fascia Panel | Model | BYFQ60C2W1W | |
Colour | White (N9.5) | ||
Dimensions (HxWxD) | mm | 46 x 620 x 620 | |
Air Filter | Resin Net (with Mould resistance) | ||
Weight | Kg | 2.8 | |

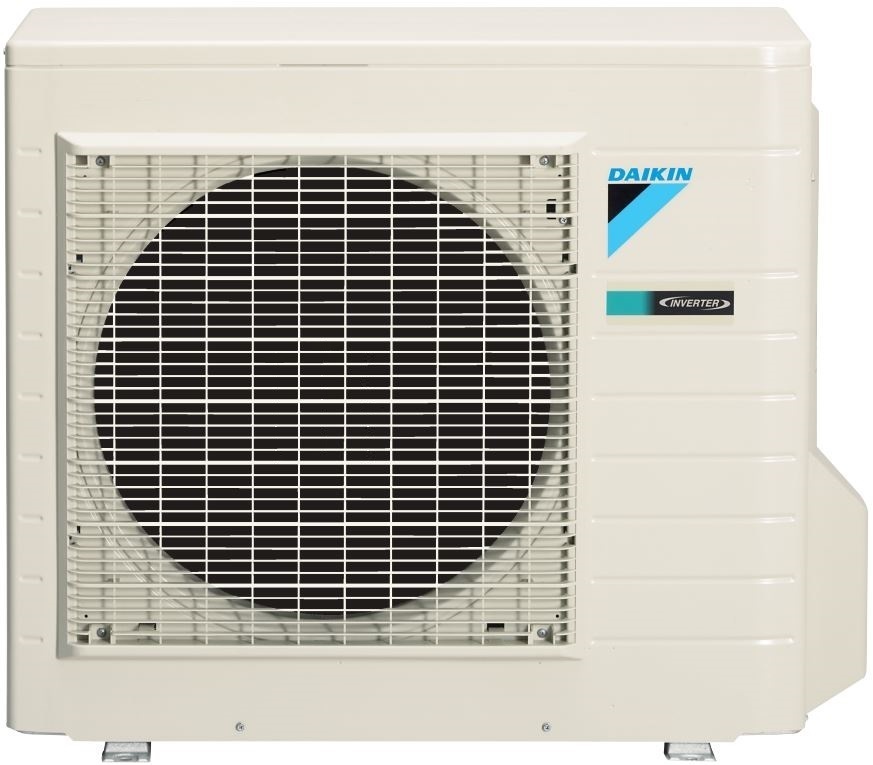

OUTDOOR UNIT | |||
Colour | Ivory White | ||
Dimensions (HxWxD) | mm | 735 x 825 x 300 | |
Coil | Type | Cross Fin Coil (Waffle Fins and HI-XU Tubes) | |
Rows / Stages / Fin Pitch | 2 x 32 x 1.8 | ||
Face Area | m² | 0.595 | |
Compressor | Model | 2YC3BXD#A | |
Type | Hermetically sealed swing type | ||
Fan | Type | Propeller | |
Motor Output | W | 53 | |
Air Flow Rate (Nominal) | Cooling | L/s | 848 |
Heating | L/s | 772 | |
Weight | Kg | 48 | |
Sound Power | dBA | 63 | |
Sound Pressure (C/H) | dBA | 49 / 49 | |
Piping | Liquid | mm | Ø6.35 |
Gas | mm | Ø12.7 | |
Drain | mm | 18 | |
Capacity Control | % | Compressor revolution speed control (inverter system) | |
Safety Device | High Pressure switch. Fuse | ||
Refrigerant Control | Electronic Expansion Valve | ||
Ref. Piping | Max Length | m | 30 |
Max Height Difference | m | 20 | |
Refrigerant | Model | R410a | |
Factory Charge | Kg | 1.5 | |
Pre-Charge Length | 10m | ||
Additional Charge >10m | g/m | 20 | |
Ref. Oil | Model | Refer to nameplate | |
Charge | L | 0.65 |
SKU | FFQ60C2 |
Brand | Daikin |
Shipping Weight | 65.5000kg |
Shipping Cubic | 0.267875000m3 |
