Daikin FFQ35C2 3.4kW Compact Cassette
Compact Cassette Air Conditioner
$1,916.00 Incl GST
$1,741.82 Excl GST
In Stock
$1,741.82 Excl GST
.jpg)

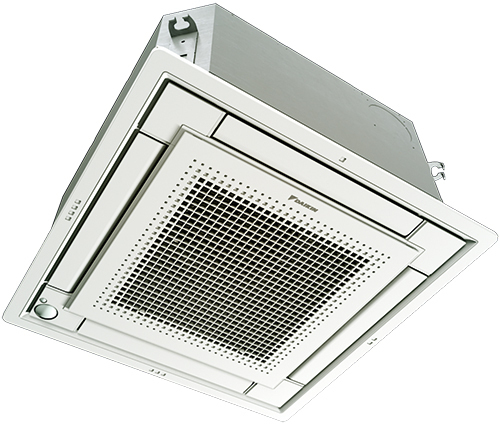

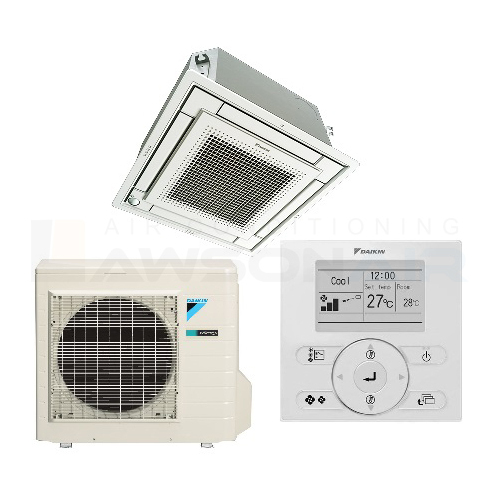

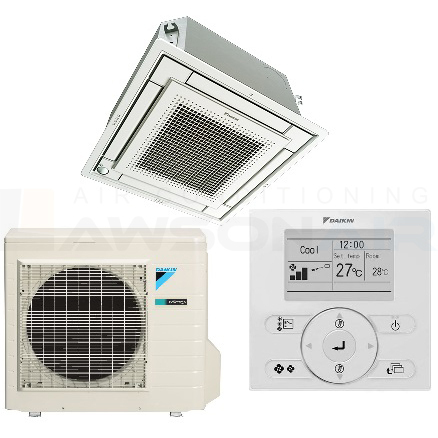

Daikin FFQ35C2 3.4kW Compact Cassette - Includes BRC1E63 Wired Controller
Daikin 3.4kW In-ceiling Cassette Unit. This Inverter System has a cooling capacity ranging from 1.9kW to 4.0kW and a heating capacity from 1.4kW to 5.2kW.
(FFQ35C2)
| Indoor Unit | FFQ35C2VEB | ||

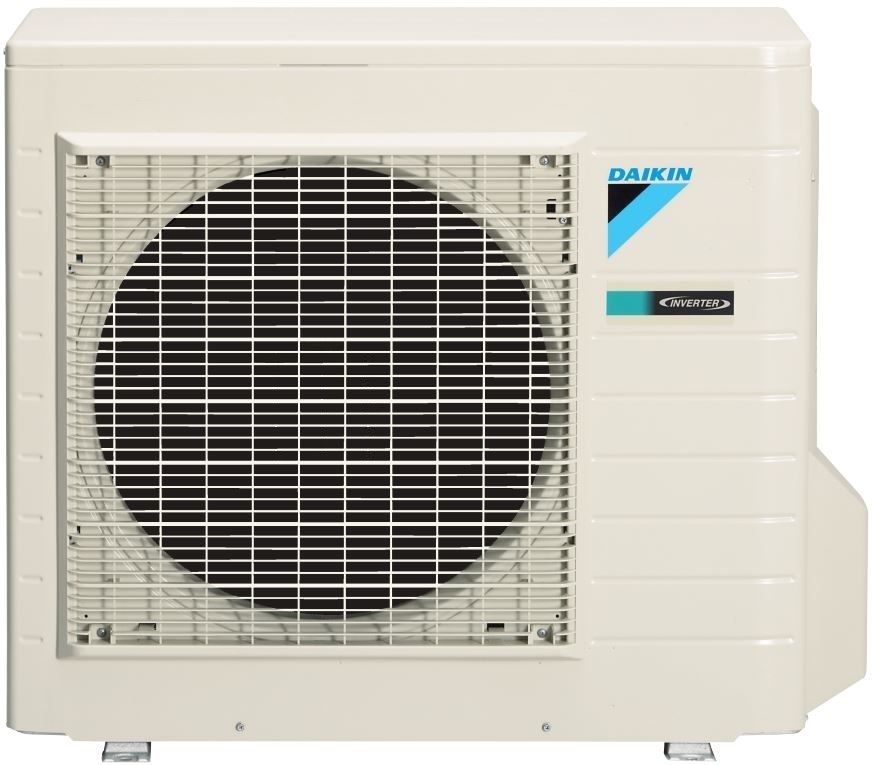

| Outdoor Unit | RXS35K2V1B | ||
| Power Supply (Ø / V / Hz) | 1 / 220 - 240 / 50 | ||
| Cooling Capacity (Rated / Range) | 3.4 (1.9 - 4.0) | ||
| Heating Capacity (Rated / Range) | 4.0 (1.4 - 5.2) | ||
| EER / COP | 3.7 / 4.0 | ||
| AEER / ACOP | 3.60 / 3.91 | ||
| INDOOR UNIT | |||
| Dimensions (HxWxD) | mm | 260 x 575 x 575 (+63) | |
| Coil | Type | Cross Fin Coil (Multi Slit Fins and Hi-XA Tubes) | |
| Rows / Stages / Fin Pitch | 2 / 12 / 1.2 | ||
| Face Area | m² | 0.29 | |
| Fan | Type | Turbo Fan | |
| Motor Output | W | 50 | |
| Fan Speed | 3 Speeds | ||
| Air flow rate (H/M/L) | L/s | 167 / 141 / 108 | |
| Sound Pressure (H/M/L) | dBA | 34 / 30.5 / 25 | |
| Sound Power (H) | dBA | 51 | |
| Weight | Kg | 16 | |
| Piping | Liquid | mm | Ø6.35 |
| Gas | mm | Ø9.52 (Flare) | |
| Drain | mm | VP 20 (Ext Ø26, Int Ø20) | |
| Remote | Wired (Standard) | BRC1E62 | |
| Wireless (Option) | BRC7F530W | ||
| Fascia Panel | Model | BYFQ60C2W1W | |
| Colour | White (N9.5) | ||
| Dimensions (HxWxD) | mm | 46 x 620 x 620 | |
| Air Filter | Resin Net (with Mould resistance) | ||
| Weight | Kg | 2.8 | |
| OUTDOOR UNIT | |||
| Colour | Ivory White | ||
| Dimensions (HxWxD) | mm | 550 x 765 x 285 | |
| Coil | Type | Cross Fin Coil (Waffle Fins and HI-XU Tubes) | |
| Rows / Stages / Fin Pitch | 2 x 24 x 1.4 | ||
| Face Area | m² | 0.425 | |
| Compressor | Model | 1YC23AEXDC | |
| Type | Hermetically sealed swing type | ||
| Fan | Type | Propeller | |
| Motor Output | W | 23 | |
| Air Flow Rate (Nominal) | Cooling | L/s | 600 |
| Heating | L/s | 472 | |
| Weight | Kg | 34 | |
| Sound Power | dBA | 62 | |
| Sound Pressure (C/H) | dBA | 48 / 48 | |
| Piping | Liquid | mm | Ø6.35 |
| Gas | mm | Ø9.52 | |
| Drain | mm | 18 | |
| Capacity Control | % | Compressor revolution speed control (inverter system) | |
| Safety Device | High Pressure switch. Fuse | ||
| Refrigerant Control | Electronic Expansion Valve | ||
| Ref. Piping | Max Length | m | 20 |
| Max Height Difference | m | 15 | |
| Refrigerant | Model | R410a | |
| Factory Charge | Kg | 1.2 | |
| Pre-Charge Length | 10m | ||
| Additional Charge >10m | g/m | 20 | |
| Ref. Oil | Model | Refer to nameplate | |
| Charge | L | 0.375 | |
| SKU | FFQ35C2 |
| Brand | Daikin |
| Shipping Weight | 50.0000kg |
| Shipping Cubic | 0.205876000m3 |
