Daikin FFQ25C2 2.5kW Compact Cassette
Compact Cassette Air Conditioner
$1,805.00 Incl GST
$1,640.91 Excl GST
Sold Out
$1,640.91 Excl GST
.jpg)

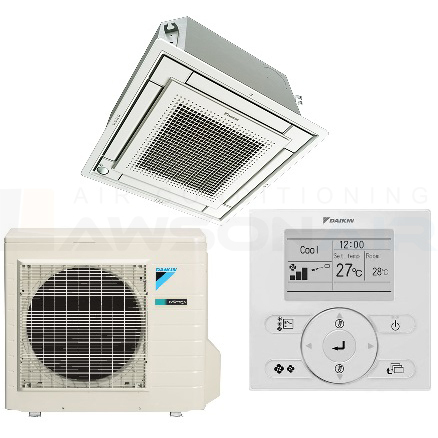

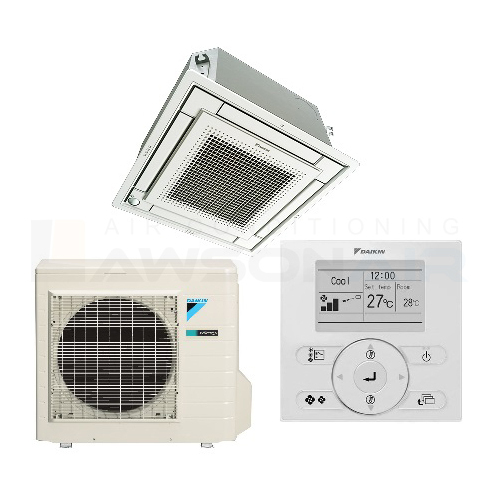

Daikin FFQ25C2 2.5kW Compact Cassette - Includes BRC1E63 Wired Controller
Daikin 2.5kW In-ceiling Cassette Unit. This Inverter System has a cooling capacity ranging from 1.3kW to 3.2kW and a heating capacity from 1.3kW to 4.7kW.
(FFQ25C2)
| Indoor Unit | FFQ25C2VEB | ||
| Outdoor Unit | RXS25K3V1B | ||
| Power Supply (Ø / V / Hz) | 1 / 220 - 240 / 50 | ||
| Cooling Capacity (Rated / Range) | 2.5 (1.3 - 3.2) | ||
| Heating Capacity (Rated / Range) | 3.2 (1.3 - 4.7) | ||
| EER / COP | 4.46 / 4.0 | ||
| AEER / ACOP | 4.29 / 3.89 | ||

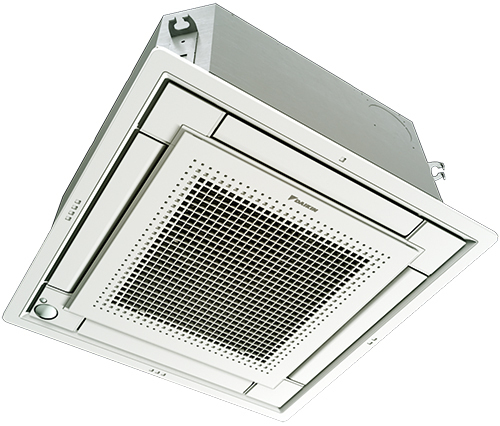

| INDOOR UNIT | |||
| Dimensions (HxWxD) | mm | 260 x 575 x 575 (+63) | |
| Coil | Type | Cross Fin Coil (Multi Slit Fins and Hi-XA Tubes) | |
| Rows / Stages / Fin Pitch | 2 / 12 / 1.2 | ||
| Face Area | m² | 0.29 | |
| Fan | Type | Turbo Fan | |
| Motor Output | W | 50 | |
| Fan Speed | 3 Speeds | ||
| Air flow rate (H/M/L) | L/s | 150 / 133 / 108 | |
| Sound Pressure (H/M/L) | dBA | 31 / 28.5 / 25 | |
| Sound Power (H) | dBA | 48 | |
| Weight | Kg | 16 | |
| Piping | Liquid | mm | Ø6.35 |
| Gas | mm | Ø9.52 (Flare) | |
| Drain | mm | VP 20 (Ext Ø26, Int Ø20) | |
| Remote | Wired (Standard) | BRC1E62 | |
| Wireless (Option) | BRC7F530W | ||
| Fascia Panel | Model | BYFQ60C2W1W | |
| Colour | White (N9.5) | ||
| Dimensions (HxWxD) | mm | 46 x 620 x 620 | |
| Air Filter | Resin Net (with Mould resistance) | ||
| Weight | Kg | 2.8 | |

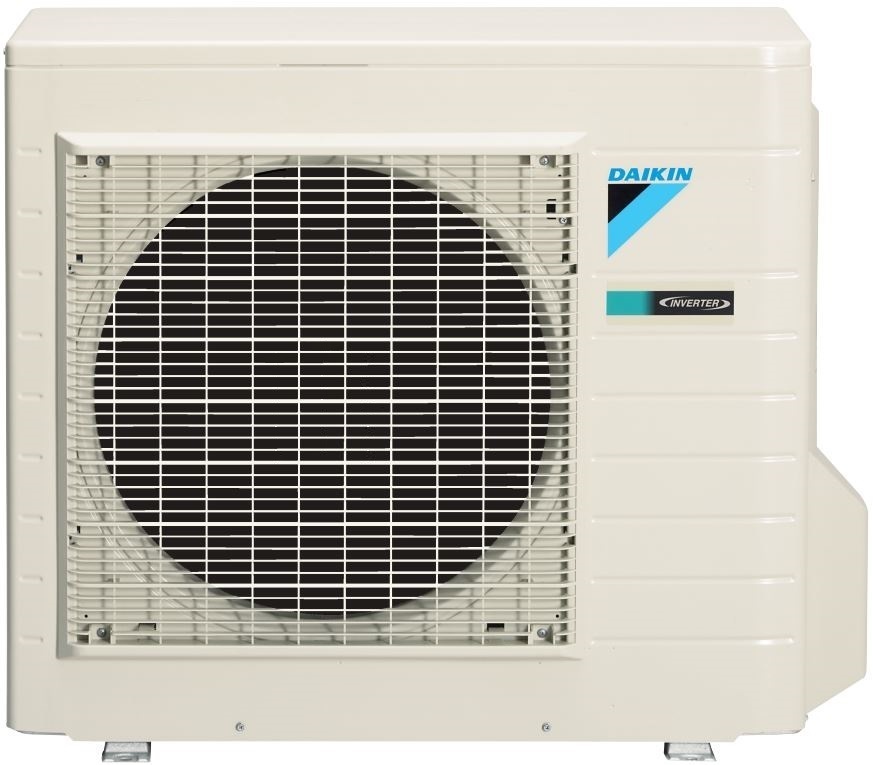

| OUTDOOR UNIT | |||
| Colour | Ivory White | ||
| Dimensions (HxWxD) | mm | 550 x 765 x 285 | |
| Coil | Type | Cross Fin Coil (Waffle Fins and HI-XU Tubes) | |
| Rows / Stages / Fin Pitch | 2 x 24 x 1.4 | ||
| Face Area | m² | 0.425 | |
| Compressor | Model | 1YC23AEXDC | |
| Type | Hermetically sealed swing type | ||
| Fan | Type | Propeller | |
| Motor Output | W | 23 | |
| Air Flow Rate (Nominal) | Cooling | L/s | 558 |
| Heating | L/s | 472 | |
| Weight | Kg | 34 | |
| Sound Power | dBA | 62 | |
| Sound Pressure (C/H) | dBA | 46 / 47 | |
| Piping | Liquid | mm | Ø6.35 |
| Gas | mm | Ø9.52 | |
| Drain | mm | 18 | |
| Capacity Control | % | Compressor revolution speed control (inverter system) | |
| Safety Device | High Pressure switch. Fuse | ||
| Refrigerant Control | Electronic Expansion Valve | ||
| Ref. Piping | Max Length | m | 20 |
| Max Height Difference | m | 15 | |
| Refrigerant | Model | R410a | |
| Factory Charge | Kg | 1 | |
| Pre-Charge Length | 10m | ||
| Additional Charge >10m | g/m | 20 | |
| Ref. Oil | Model | Refer to nameplate | |
| Charge | L | 0.375 | |
| SKU | FFQ25C2 |
| Brand | Daikin |
| Shipping Weight | 50.0000kg |
| Shipping Cubic | 0.205876000m3 |
