Daikin FCQ125KA-AY 12.5kW Three Phase Premium Cassette

FCQ125KAVEA/RZQS125AY1 In-Ceiling Standard Cassette

$5,445.00 Incl GST
$4,950.00 Excl GST
Sold Out

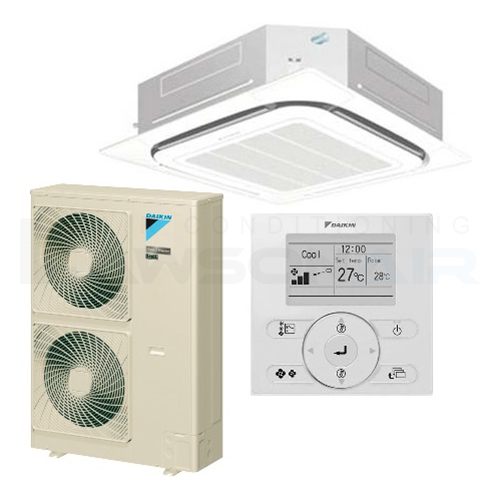

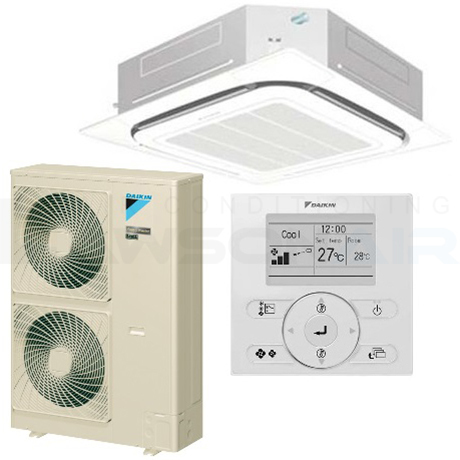

Daikin FCQ125KA-AY 12.5kW Cassette  -  Includes BRC1E63 Wired Controller & Outdoor Unit RZQS125AY1

A cassette featuring Daikin's signature round airflow design that provides improved temperature distribution for superior comfort. The SkyAir Round Flow Cassette utilises 360 degree airflow distribution to ensure even temperatures throughout the space, this provides a comfortable environment for building occupants all year round while also remaining discrete.


  • 360 degree even airflow distribution
  • Silver ion antibacterial treated drain pan
  • R22 retrofit technology

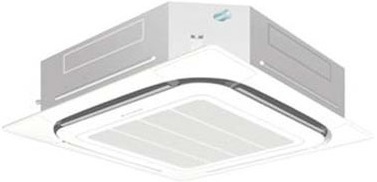

Indoor Unit FCQ125KAVEA

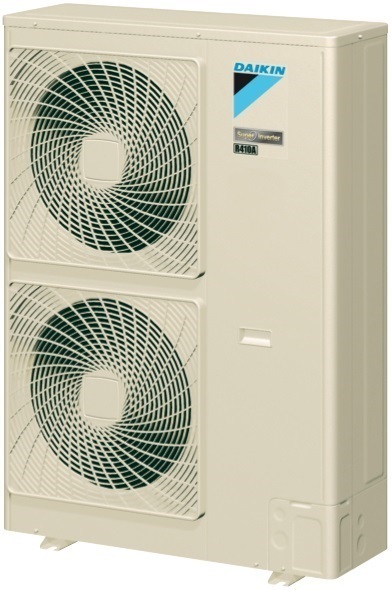

Outdoor Unit RZQS125AY1
Power Supply ø / V / Hz 3 Phase, 415V, 50 Hz
Cooling Capacity Rated (Min - Max) kW 12.5 (5.7 - 14.0)
Heating Capacity Rated (Min - Max) kW 14.0 (6.0 - 16.2)
Power Consumption Cooling kW 3.56
Heating kW 3.60
Energy Efficiency EER kW 3.51
COP kW 3.89
Indoor Unit Colour Unit   -
Decoration Panel   Fresh White
Airflow Rate (H/M/L) L/s 550 / 467 / 375
m³/min 33 / 28 / 22.5
Sound Level (H/M/L) dB(A) 44 / 39 / 34
Sound Power Level (H/L) dB(A) 61 / 52
Dimensions (HxWxD) Unit mm 298 x 840 x 840
Decoration Panel mm 50 x 950 x 950
Machine Weight Unit kg 24
Decoration Panel kg 5.5
Certified Operation Range Cooling °CWB 14 to 25
Heating °CDB 15 to 27
Outdoor Unit Colour   Ivory white
Compresser Type   Hermetically sealed scroll type
Motor output kW 3.15
Refrigerant Charge (R410a) kg 4.2 (Charged for 30m)
Sound Level Cooling / Heating dB(A) 54 / 56
Night quiet mode dB(A) 50
Sound Power Level (H/L) dB(A) -
Dimensions (HxWxD) mm 1430 x 940 x 320
Machine Weight kg 108
Certified Operation range Cooling °CDB -5 to 46
Heating °CWB -15 to 15.5
Piping Connections Liquid (Flare) mm ø9.5
Gas (Flare) mm ø15.9
Drain Indoor Unit mm I.D. ø25 x O.D ø32
Outdoor Unit mm ø26.0 (Hole)
Refrigerant   R410A
Max, interunit piping length m 75 (Equivalent length 90)
Max. Installation level difference m 30
Heat insulation   Both liquid and gas piping
Brand Daikin
Shipping Weight 137.5000kg

Daikin offers a 5-year warranty for all of their Air conditioners and controllers.
