Daikin SkyAir FAA71B-VC2Y 7.1kW Wall Split 3 Phase Air Conditioning System

Calculate Shipping

Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm.

Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Sydney Warehouse. Mon - Fri 8am - 4pm.

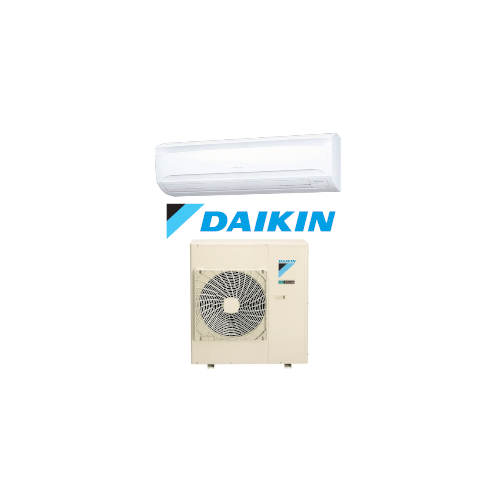

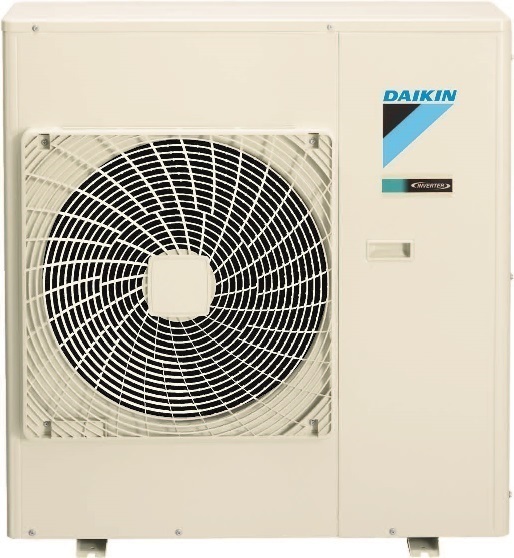

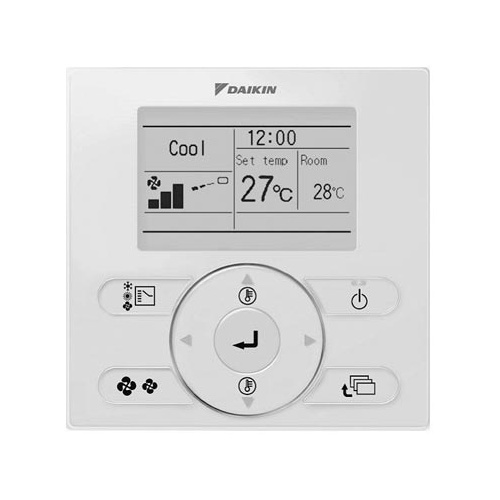

Daikin FAA71B-VC2Y 7.1kW Three Phase Wall Mounted Split System - Includes BRC1E63 Wired Controller & Outdoor Unit RZAV71C2Y1

Daikin's SkyAir Wall Mounted air conditioning system is designed to be compact, powerful and yet facilitate easy installation. Offering six refrigerant piping directions for greater flexibility, extra high fan speed setting for longer throws and vertical auto swing function with 5-step airflow direction for increased comfort. With a sizeable number of existing R22 systems in the field reaching the end of the useful operating life, this Wall Mounted system also features R22 retrofit technology providing a simplified replacement solution which is also cost effective.

Features:

Compact Design and Easy Installation: Flaps neatly close when not in use, fresh white colour
Auto Swing (Up and Down) and Wide-Angle Louvers (Left and Right by Hand)
Easy Cleaning: Removable and Washable Grill, Flat Panel, Non-Flocking Flaps
6-Direction Refrigerant Piping
Maintenance Possible from Front of Unit
Interlock Control

(FAA71B-VC2Y)

System Names	FAA71B-VC2Y	FAA85B-VC2Y	FAA100B-VC2Y
Indoor Unit	FAA71BVMA	FAA85BVMA	FAA100BVMA
Outdoor Unit	RZAV71C2Y1	RZAV85C2Y1	RZAV100C2Y1
Cooling Capacity Rated/Min-Max (kW)	7.1 (3.2-8.0)	8.5 (4.0-10.0)	10.0 (5.0-11.2)
Heating Capacity Rated/Min-Max(kW)	8.0 (3.5-9.0)	10.0 (4.1-11.2)	11.2 (5.1-12.5)
Power Supply	3 Phase, 380-415V, 50Hz
Power Consumption (Cool/Heat) (kW)	2.22 / 2.37	2.59 / 3.01	3.11 / 3.48
EER / COP (kW/kW)	3.20 / 3.38	3.28 / 3.32	3.22 / 3.22
AEER / ACOP	3.13 / 3.31	3.22 / 3.27	3.16 / 3.17
TCSPF Cooling Commercial Hot/Avg/Cold	4.85 / 4.88 / 5.19	5.01 / 5.06 / 5.40	5.03 / 5.12 / 5.48
TCSPF Cooling Residential Hot/Avg/Cold	4.46 / 3.92 / 4.00	4.61 / 4.10 / 4.21	4.63 / 4.17 / 4.31
HSPF Heating Commercial Hot/Avg/Cold	4.47 / 4.16 / 3.79	4.49 / 4.17 / 3.77	4.66 / 4.25 / 3.77
HSPF Heating Residential Hot/Avg/Cold	4.46 / 3.94 / 3.52	4.48 / 3.93 / 3.49	4.64 / 3.95 / 3.42
Indoor Decoration Panel Colour	Fresh White
Indoor Airflow Rate (H/M/L) (l/s)	300 / 267 / 233	433 / 383 / 317
Indoor Sound Pressure Level (H/M/L) (dBA)	45 / 42 / 40	49 / 45 / 41
Outdoor Unit Colour	Ivory White
Compressor Type	Hermatically Sealed Swing Type
Compressor Motor Output (kW)	2.4	3.3
R32 Refrigerant Amount/Charge (kg)	2.60 (Charged for 30m)	2.90 (Charged for 30m)	3.75 (Charged for 30m)
Outdoor Sound Pressure Level Cool/Heat (dBA)	48 / 50	52 / 53	51 / 53
Outdoor Sound Pressure Level Night Quiet Mode (dBA)	44	48	47
Outdoor Sound Power Level (dBA)	67	71	70
Indoor Operating Range Cool/Heat (C)	14 to 25 / 15 to 27
Outdoor Operating Range Cool/Heat (C)	-5 to 50 / -15 to 15.5
Pipe Sizes (Liquid/Gas) (mm)	9.5 / 15.9
Max. Interunit Piping Length (m)	75 (Equivalent Length 90)
Max. Installation Height Difference (m)	30
Heat Insulation	Both Liquid and Gas Piping
Indoor Unit Dimensions (HxWxD) (mm)	290 x 1050 x 238	340 x 1200 x 240
Outdoor Unit Dimension (HxWxD) (mm)	990 x 940 x 320		1430 x 940 x 320
Indoor Unit Weight (kg)	13	17
Outdoor Unit Weight (kg)	69	78	93
