Daikin FCA100C-VCV 10.0kW Single Phase Premium Cassette

FCA100CVMA/RZAV100CV1 In-Ceiling Premium Cassette




$5,154.00 Incl GST
$4,685.45 Excl GST
In Stock


Calculate Shipping



Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm.

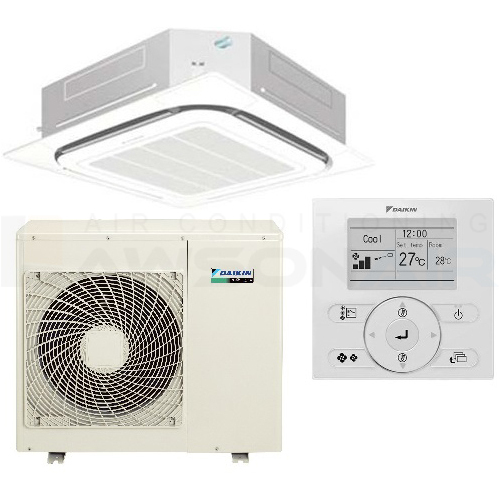

Daikin FCA100CA-VCV 10.0kW Single Phase Premium Cassette - Includes BRC1E63 Wired Controller & Outdoor Unit RZAV100CV1

A cassette featuring Daikin's signature round airflow design that provides improved temperature distribution for superior comfort. The SkyAir Round Flow Cassette utilises 360 degree airflow distribution to ensure even temperatures throughout the space, this provides a comfortable environment for building occupants all year round while also remaining discrete.

Features:

  • 360 degree even airflow distribution
  • Silver ion antibacterial treated drain pan
  • R22 retrofit technology

(FCA100C-VCV)

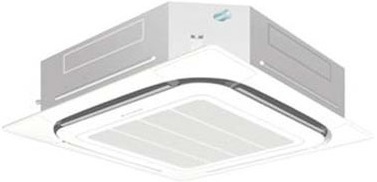

Indoor Unit FCA100CVMA

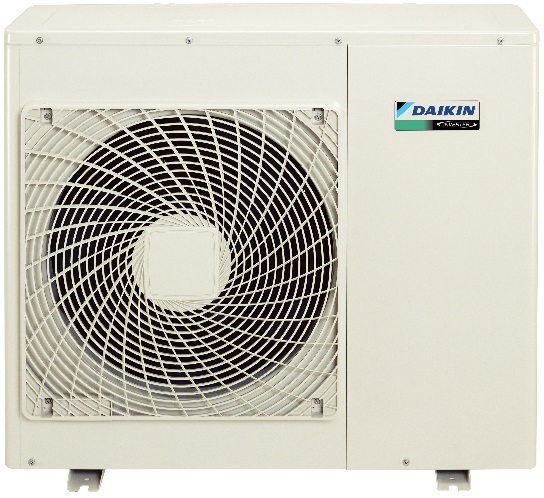

Outdoor Unit RZAV100CV1
Power Supply ø / V / Hz 1 Phase, 240V, 50 Hz
Cooling Capacity Rated (Min - Max) kW 10.0 (5.0 - 11.2)
Heating Capacity Rated (Min - Max) kW 11.2 (5.1 - 12.5)
Power Consumption Cooling kW 2.38
Heating kW 2.40
Enery Efficiency EER kW 4.21
COP kW 4.67
Indoor Unit Colour Unit   -
Decoration Panel   Fresh White
Airflow Rate (H / HM / M / ML / L) L/s 575 / 517 / 458 / 400 / 333
m³/min 34.5 / 31.0 / 27.5 / 24.0 / 20.0
Sound Level (H/M/L) dB(A) 45.0 / 42.0 / 39.0 / 36.5 / 34.0
Dimensions (HxWxD) Unit mm 298 x 840 x 840
Decoration Panel mm 50 x 950 x 950
Machine Weight Unit kg 26
Decoration Panel kg 5.5
Certified Operation Range Cooling °CWB 14 to 25
Heating °CDB 15 to 27
Outdoor Unit Colour   Ivory white
Compresser Type   Hermetically sealed swing type
Motor output kW 3.3
Refrigerant Charge  kg 3.75 (charged for 30m)
Sound Level Cooling / Heating dB(A) 51 / 53
Night quiet mode dB(A) 47
Sound Power Level (H/L) dB(A) 70
Dimensions (HxWxD) mm 1430 x 940 x 320
Machine Weight kg 93
Certified Operation range Cooling °CDB -5 to 50
Heating °CWB -15 to 15.5
Piping Connections Liquid (Flare) mm ø9.5
Gas (Flare) mm ø15.9
Drain Indoor Unit mm I.D. ø25 x O.D ø32
Outdoor Unit mm ø26.0 (Hole)
Refrigerant   R32
Max, interunit piping length m 75 (Equivalent length 90)
Max. Installation level difference m 30
Heat insulation   Both liquid and gas piping
SKU FCA100C-VCV
Brand Daikin
Shipping Weight 94.5000kg
Shipping Cubic 0.447519000m3
