Daikin FFQ50C2 5.0kW Compact Cassette

Compact Cassette Air Conditioner




$2,431.00 Incl GST
$2,210.00 Excl GST
Sold Out

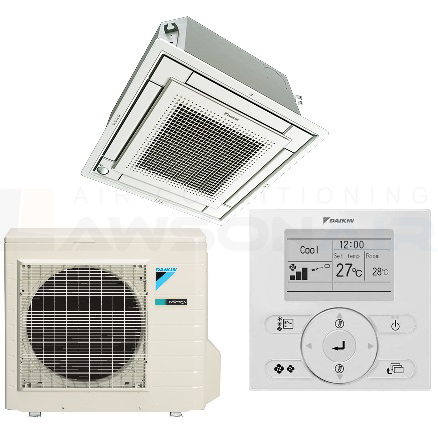

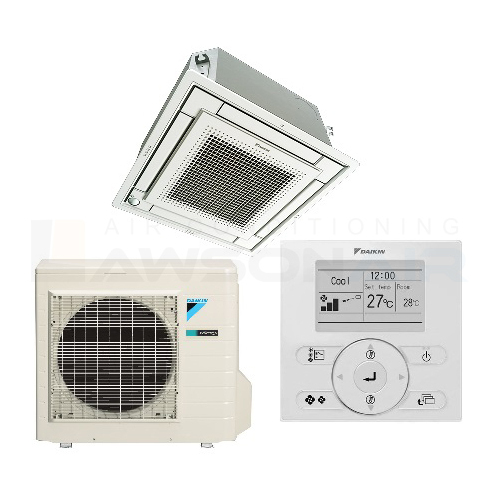

Daikin FFQ50C2 5.0kW Compact Cassette  -  Includes BRC1E63 Wired Controller

Daikin 5.0kW In-ceiling Cassette Unit. This Inverter System has a cooling capacity ranging from 2.1kW to 6.0kW and a heating capacity from 1.7kW to 7.7kW.

(FFQ50C2)

Indoor Unit FFQ50C2VEB
Outdoor Unit RXS50K2V1B
Power Supply (Ø / V / Hz)   1 / 220 - 240 / 50
Cooling Capacity (Rated / Range)   5.0 (2.1 - 6.0)
Heating Capacity (Rated / Range)   5.8 (1.7 - 7.7)
EER / COP   3.36 / 3.49
AEER / ACOP   3.31 / 3.45

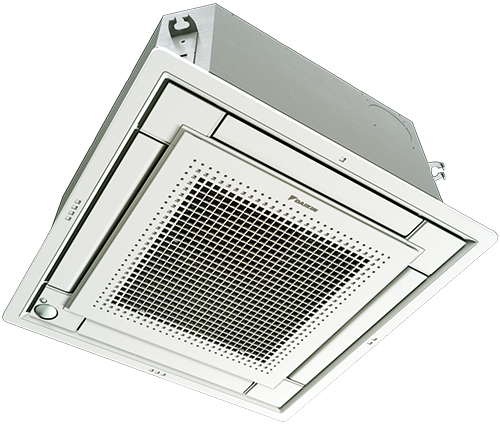

INDOOR UNIT
Dimensions (HxWxD) mm 260 x 575 x 575 (+63)
Coil Type   Cross Fin Coil (Multi Slit Fins and Hi-XA Tubes)
Rows / Stages / Fin Pitch   3 / 16 / 1.2
Face Area 0.3
Fan Type   Turbo Fan
Motor Output W 50
Fan Speed   3 Speeds
Air flow rate (H/M/L) L/s 200 / 167 / 125
Sound Pressure (H/M/L) dBA 39 / 34 / 27
Sound Power (H) dBA 56
Weight Kg 17.5
Piping Liquid mm Ø6.35
Gas mm Ø12.7 (Flare)
Drain mm VP 20 (Ext Ø26, Int Ø20)

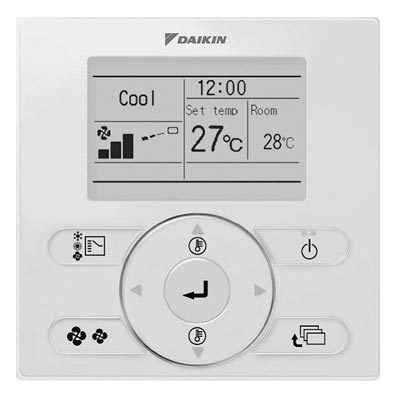

Remote Wired (Standard)   BRC1E62
Wireless (Option)   BRC7F530W
Fascia Panel Model   BYFQ60C2W1W
Colour   White (N9.5)
Dimensions (HxWxD) mm 46 x 620 x 620
Air Filter   Resin Net (with Mould resistance)
Weight Kg 2.8

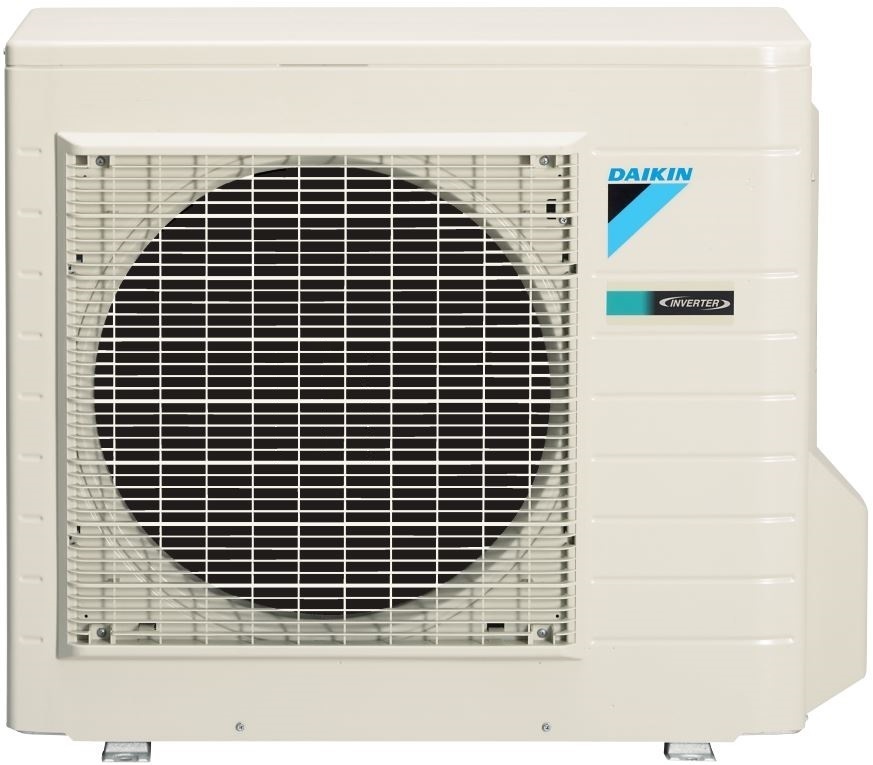

OUTDOOR UNIT
Colour   Ivory White
Dimensions (HxWxD) mm 735 x 825 x 300
Coil Type   Cross Fin Coil (Waffle Fins and HI-XU Tubes)
Rows / Stages / Fin Pitch   2 x 32 x 1.8
Face Area 0.595
Compressor Model   2YC3BXD#A
Type   Hermetically sealed swing type
Fan Type   Propeller
Motor Output W 53
Air Flow Rate (Nominal) Cooling L/s 848
Heating L/s 750
Weight Kg 47
Sound Power dBA 63
Sound Pressure (C/H) dBA 48 / 48
Piping Liquid mm Ø6.35
Gas mm Ø12.7
Drain mm 18
Capacity Control % Compressor revolution speed control (inverter system)
Safety Device   High Pressure switch. Fuse
Refrigerant Control   Electronic Expansion Valve
Ref. Piping Max Length m 30
Max Height Difference m 20
Refrigerant Model   R410a
Factory Charge Kg 1.7
Pre-Charge Length   10m
Additional Charge >10m g/m 20
Ref. Oil Model   Refer to nameplate
Charge L 0.65
SKU FFQ50C2
Brand Daikin
Shipping Weight 64.5000kg

Daikin offers a 5-year warranty for all of their Air conditioners and controllers.
